Custom, design and innovation meet in the new Ciam line of professional counters
Ciam's refrigerated counters series meets all professional needs, offering the widest range on the market with 13 lengths, 3 depths, 5 heights and 6 standard refrigeration types. In addition, modules with custom sizes and finishes can be requested. Ambient counters complete the refrigerated range, sharing its style and design features.
Applications
Design Highlights
Sleek and modern design for superb refrigeration solutions

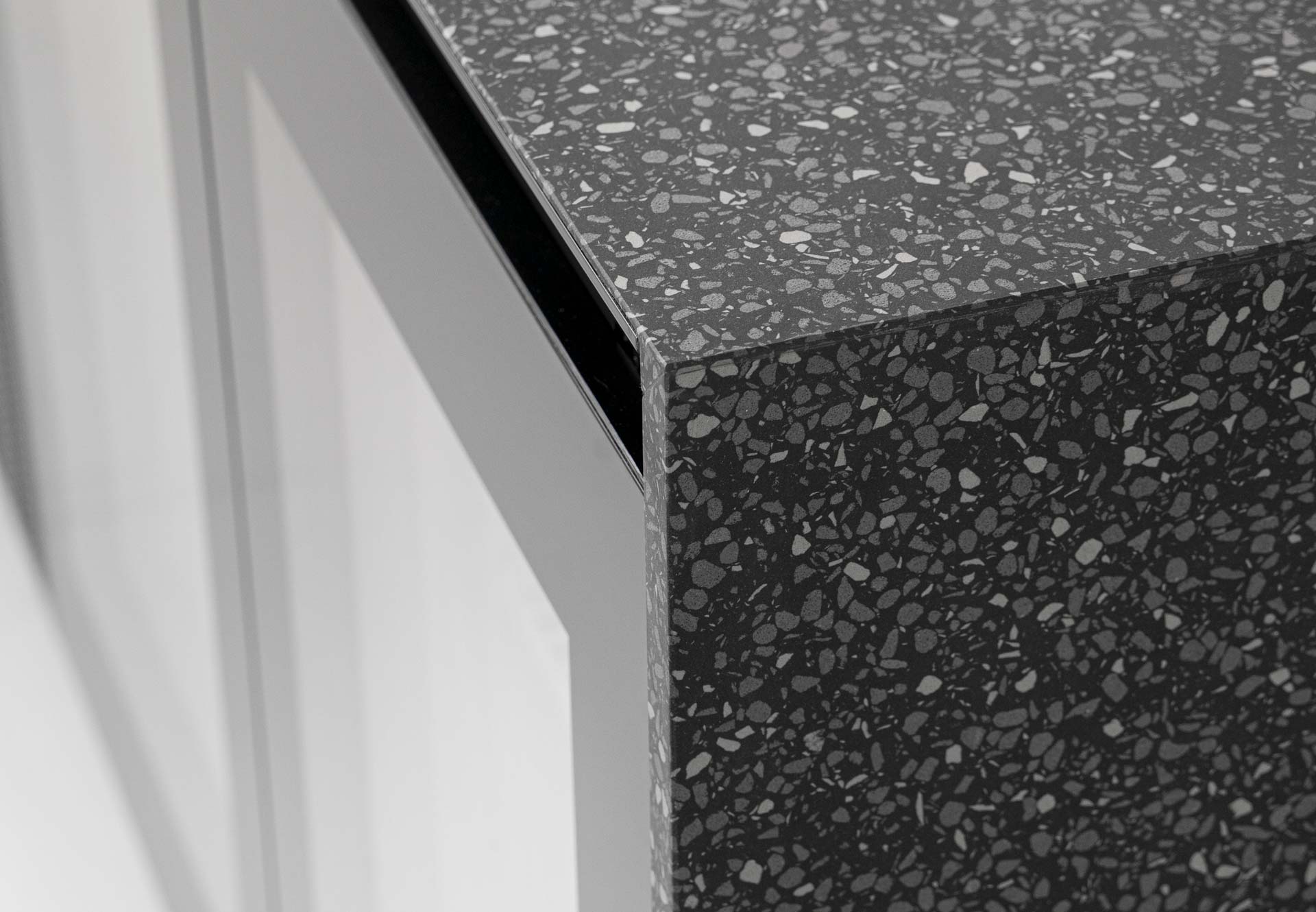

All visible components can be customized using Ciam’s range of materials, which includes a wide selection of stoneware, acrylics, quartz composites, natural stones, epoxy powder-coated sheets, electroplated sheets, brass, and wood.
The Compact counters feature a stylistic variation on the Standard line, incorporating an aluminium groove profile and eliminating all visible handles.
The design-inspired micro hinges have a load capacity of 30 kg and are adjustable in three sizes to ensure perfect door alignment.
Dimensions
Lenght: 450, 500, 625, 900, 1000, 1050, 1350, 1500, 1575, 1800, 2000, 2100, 2500, 3000 mm
Depht: 391, 550, 650, 660, 750 mm
Haight: 391, 550, 650, 750, 850 mm

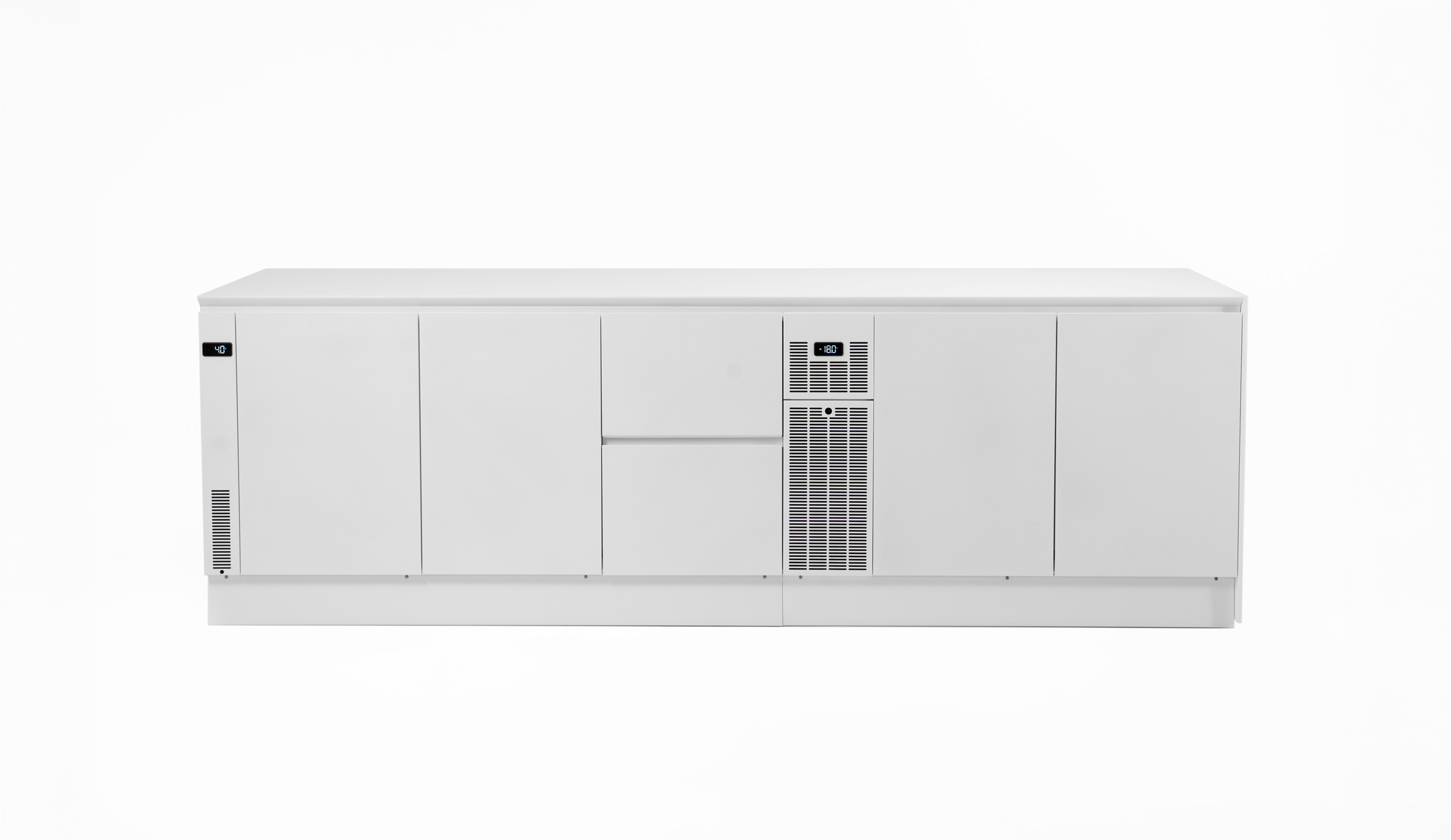

Refrigerated and ambient bases can be combined in aesthetic continuity to meet any professional and functional need.

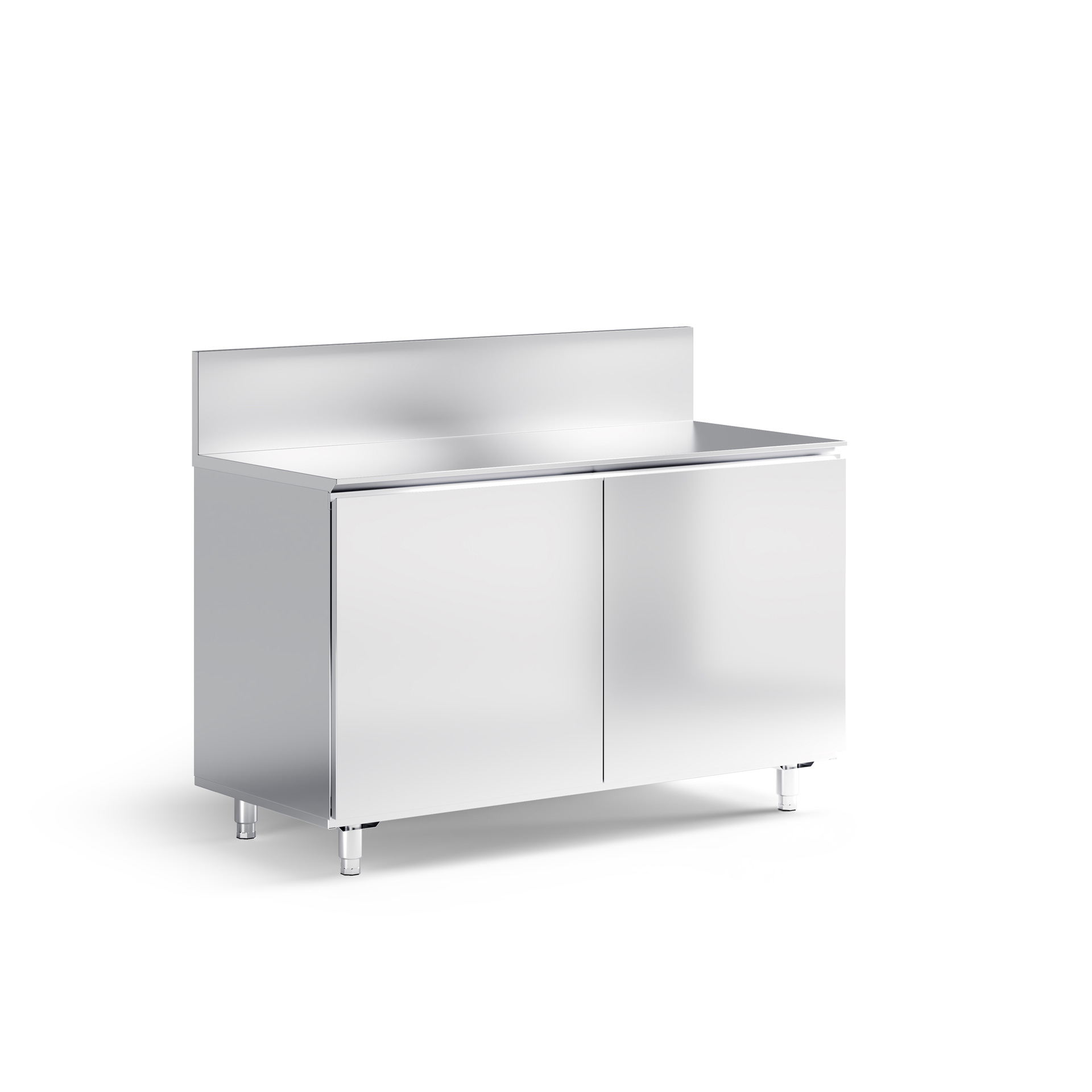

Stainless steel doors are insulated and suitable for both positive and negative temperature. The standard finish is polished stainless steel, but they can be powder coated in RAL colors upon request. The removable magnetic gasket ensures a tight seal on the refrigerated module and makes it easy to open.
Refrigerated modules can be configured with triple-glazed thermal doors. Standard screen printing is black, but custom RAL colors or the unique mirror finish can be requested.

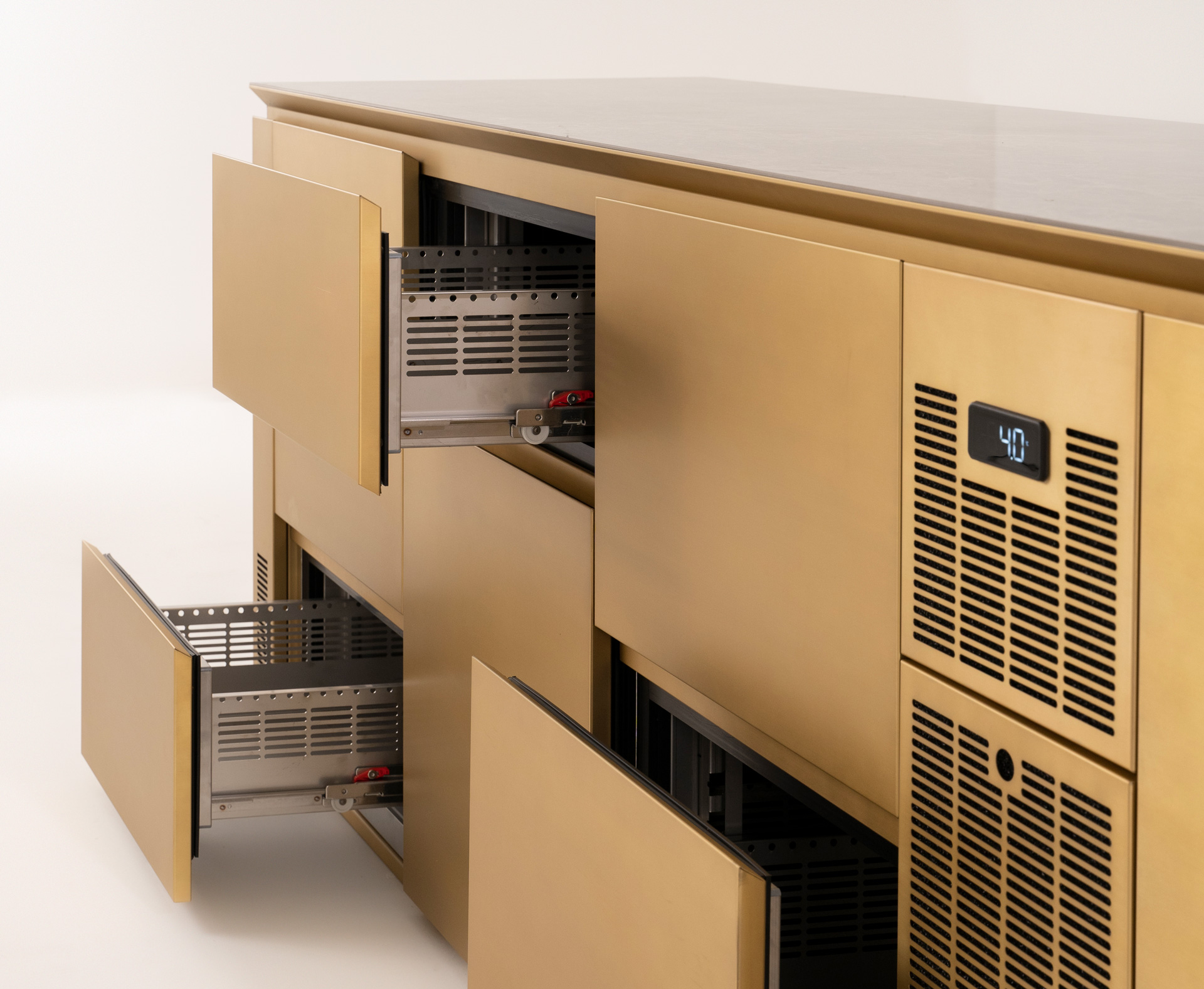

Stainless steel drawers are available as optional equipment in different heights and depths, and are compatible with Bar and Gastronomy series modules. The drawers are telescopic with full extension.
Drawer cabinets can also be made in a thermal version with triple-glazing. Standard screen printing is black, but custom RAL colors or the unique mirror finish can be requested.

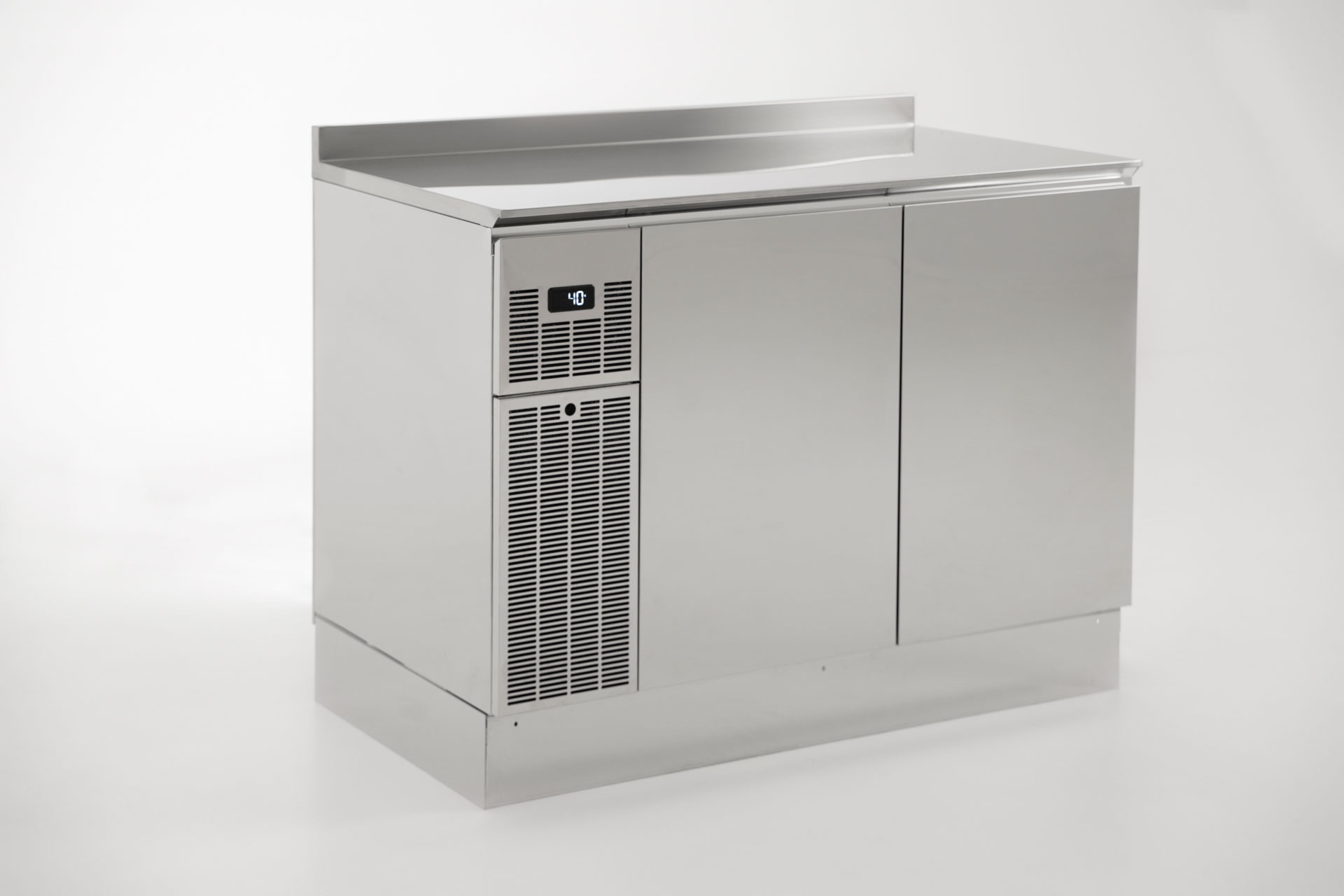

Through careful design of the refrigeration unit condenser, the size of the motor compartment has been reduced to only 25 cm wide. The condensing unit is equipped with an easily removable filter, which simplifies cleaning, preventing breakage and preserving compressor life.
The cell modules are monolithic, with 60 mm insulation made of environmentally friendly water-based polyurethane. The inner edges are rounded, and the cladding is AISI 304 stainless steel. The front wall of the cell module incorporates a plastic magnetic profile, which ensures a perfect closure and optimal fit with the doors.
The base is composed of a stainless steel profile and has height-adjustable feet, with a size range from 80 mm to 200 mm.
Casters can be applied instead of feet, upon request.
A stainless steel profile can be applied to cover the feet upon request.
Low-temperature modules can be equipped with removable telescopic guides for ice cream pans.
