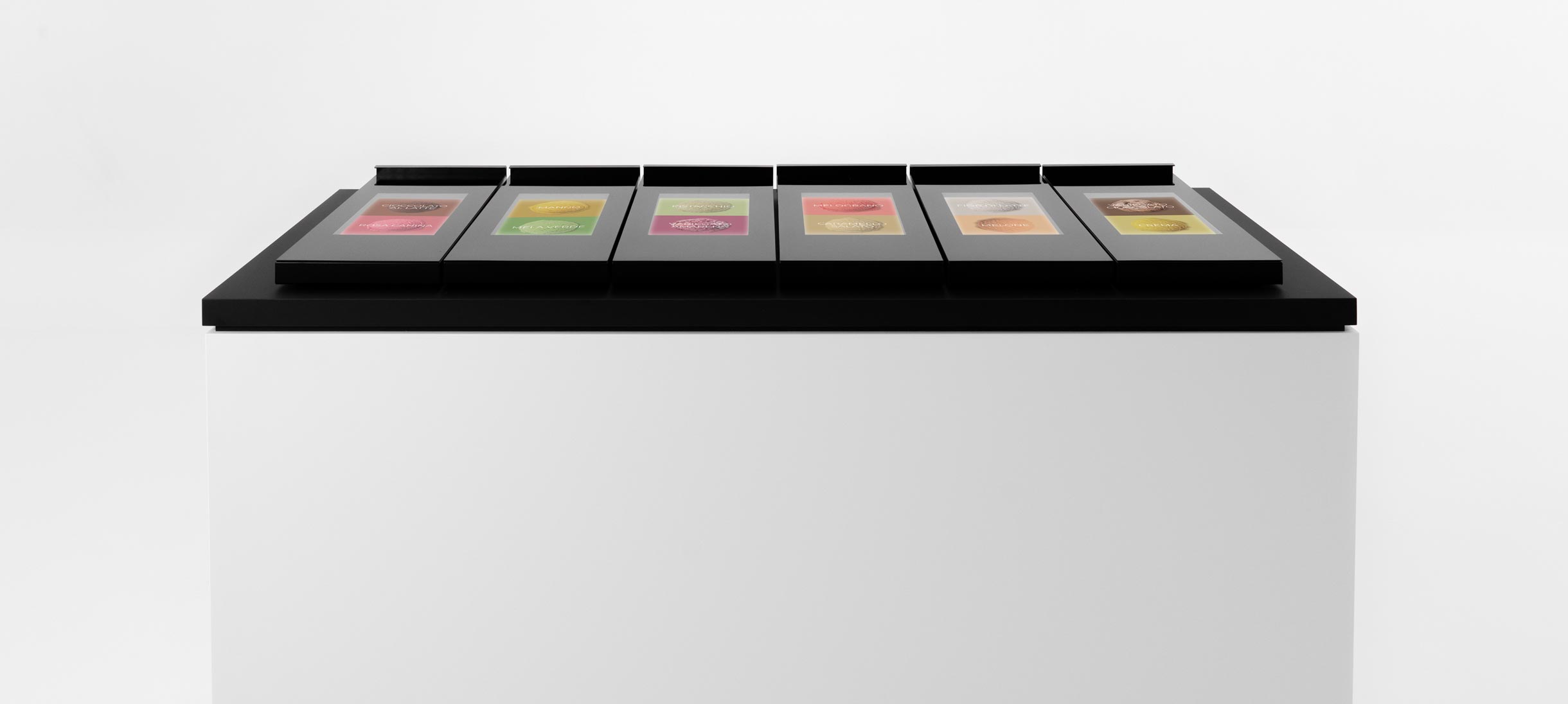

The Ice Screen Gelato Counters series consists of 6 linear modules 2 - 4 - 6 - 8 - 10 - 12 tound tubs, available in versions with and without storage.
The static glycol refrigeration is perfect for ensuring temperature uniformity for fast ice cream scooping for both upper and lower round tubs. Ice Screen pozzetto gelato feature hinged tilting doors in the top with soft-closing, equipped with integrated video walls in total black (RAL 9005) finish. Graphics and video communication can be customized via special web application, and data transfer is via USB flash drive.
Design Highlights
Sleek and modern design for superb refrigeration solutions

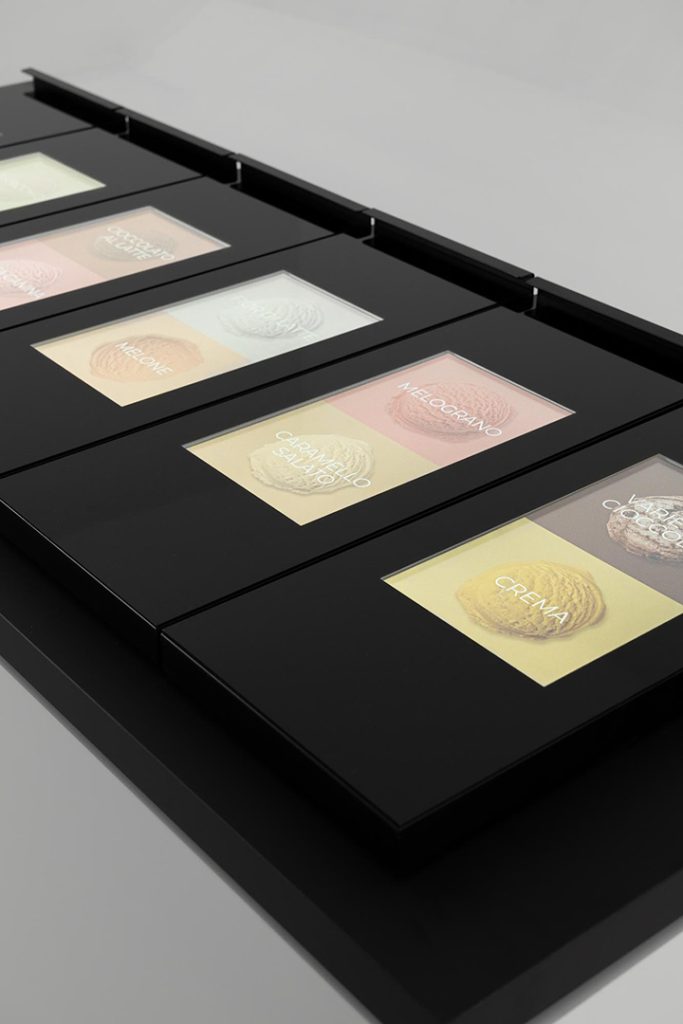

IceScreen pozzetti gelato feature insulated tilting doors, hinged into the work surface with soft closing. Through manual opening of the doors, the operator accesses the refrigerated round tubs. Video communication and graphic communication video walls are integrated with the doors in total black finish.

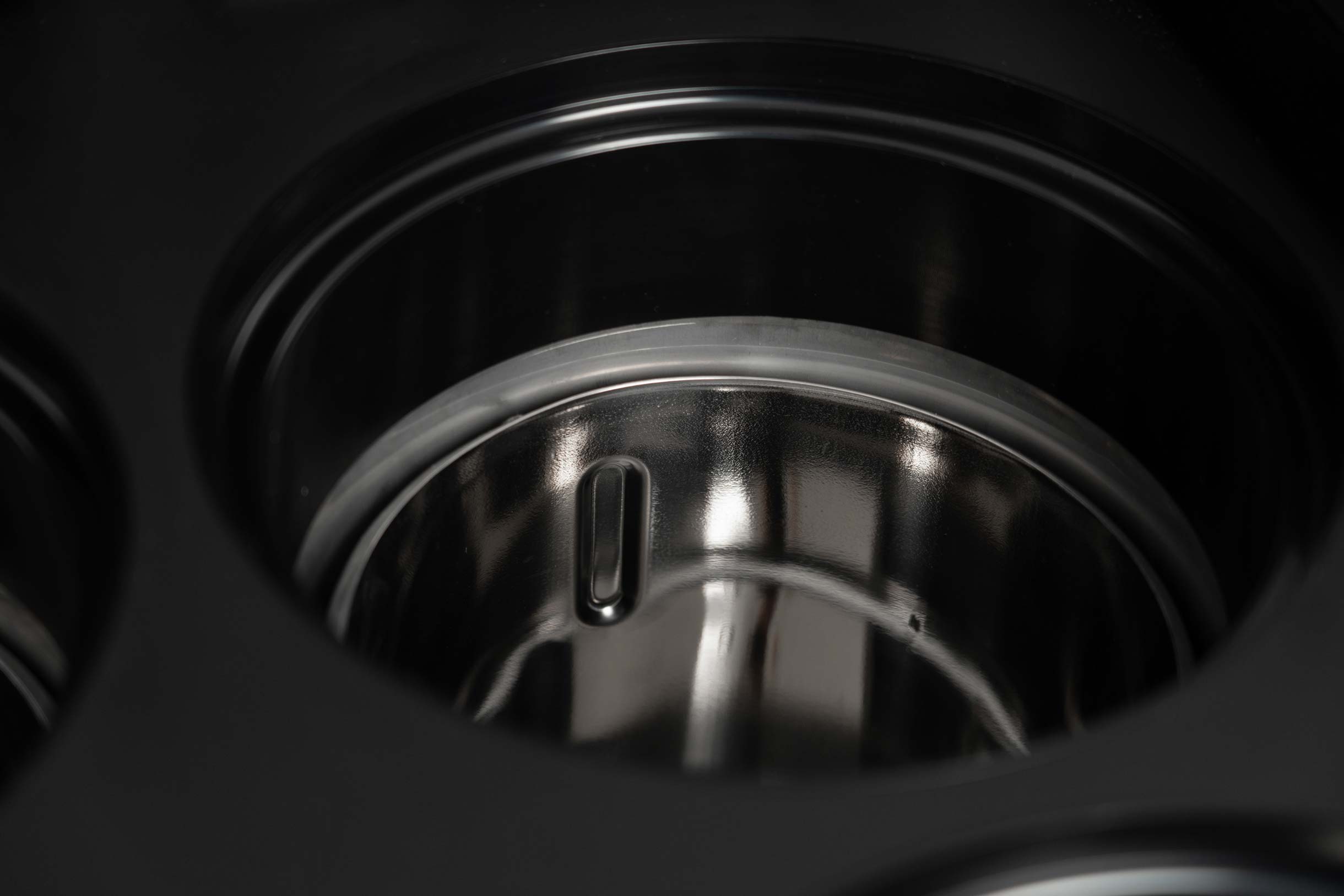

Ice Screen pozzetti counters are equipped with stainless steel round tubs of diameter 200mm H250mm (7Lt), the latter are housed on stainless steel slots with anti-rotation system on 4 points.
Circle pozzetti counters can be supplied with and without round tubs storage. The upper ring consists of an innovative plastic collar that is flush with the top and perfectly coplanar with the inner walls of the slot.

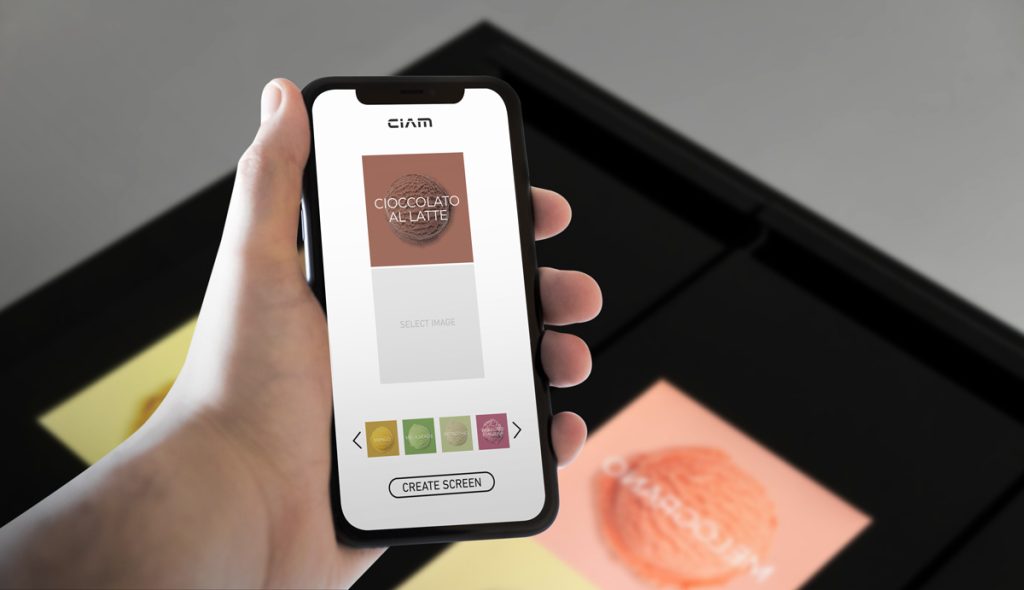

The dedicated web application allows the graphics for the ice cream flavours displayed on the 13" video walls to be customised. Once the configuration has been set up online, the video graphics are ready to be transferred to the monitors via USB stick.
Upon request, a stainless-steel casing can be applied to finish the end of the horizontal base profiles.
The skirting is made of powder-coated steel and lowered to accommodate the condensing unit.
The skirting is made of powder-coated steel and lowered to accommodate the condensing unit.
IceScreen pozzetti gelato feature insulated tilting doors, hinged into the work surface with soft closing. Through manual opening of the doors, the operator accesses the refrigerated round tubs. Video communication and graphic communication video walls are integrated with the doors in total black finish.
The dedicated web application allows the graphics for the ice cream flavours displayed on the 13" video walls to be customised. Once the configuration has been set up online, the video graphics are ready to be transferred to the monitors via USB stick.
Casters can be applied instead of feet, upon request.
Dimensions
Lenghts: 400, 650, 900, 1150, 1400, 1650 mm
Width: 660 mm
Height: 931 mm
The Ice Screen range consists of 6 linear modules of 2, 4, 6, 8, 10 and 12 tubs, available with or without reserve. The refrigeration is static glycol, perfect for ensuring temperature uniformity and keeping the ice cream ready to scoop.
