Category Horizontal showcases

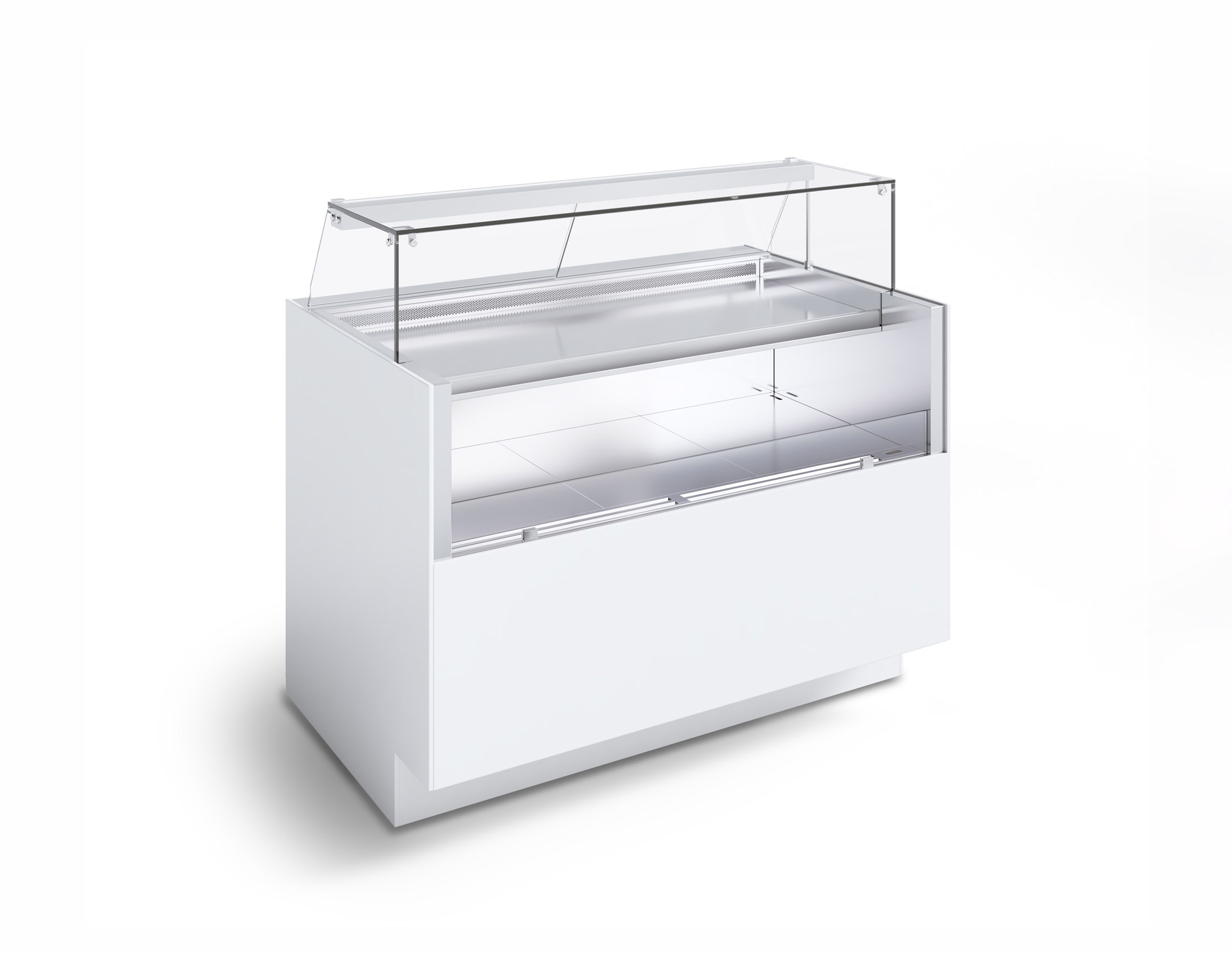

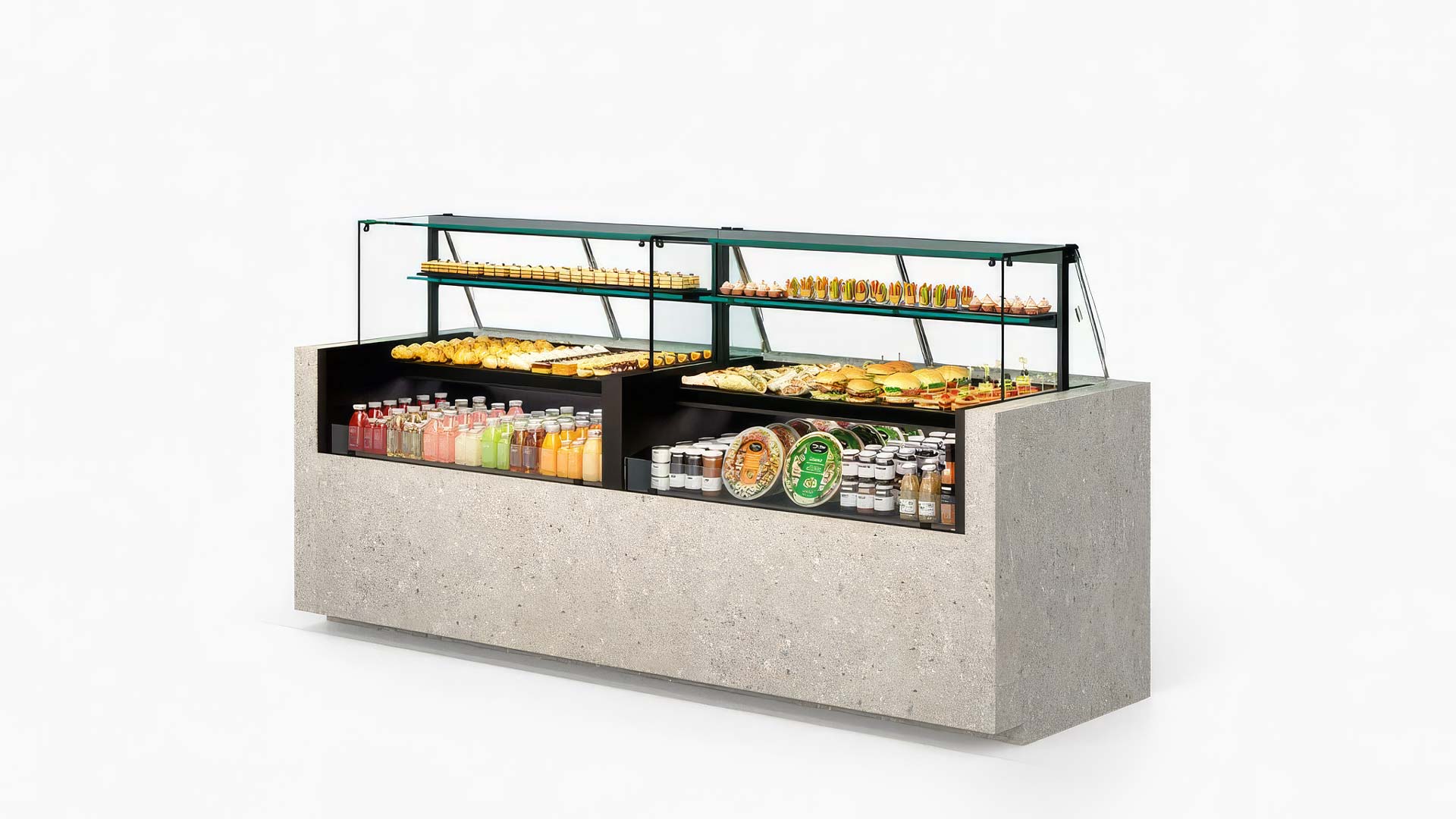

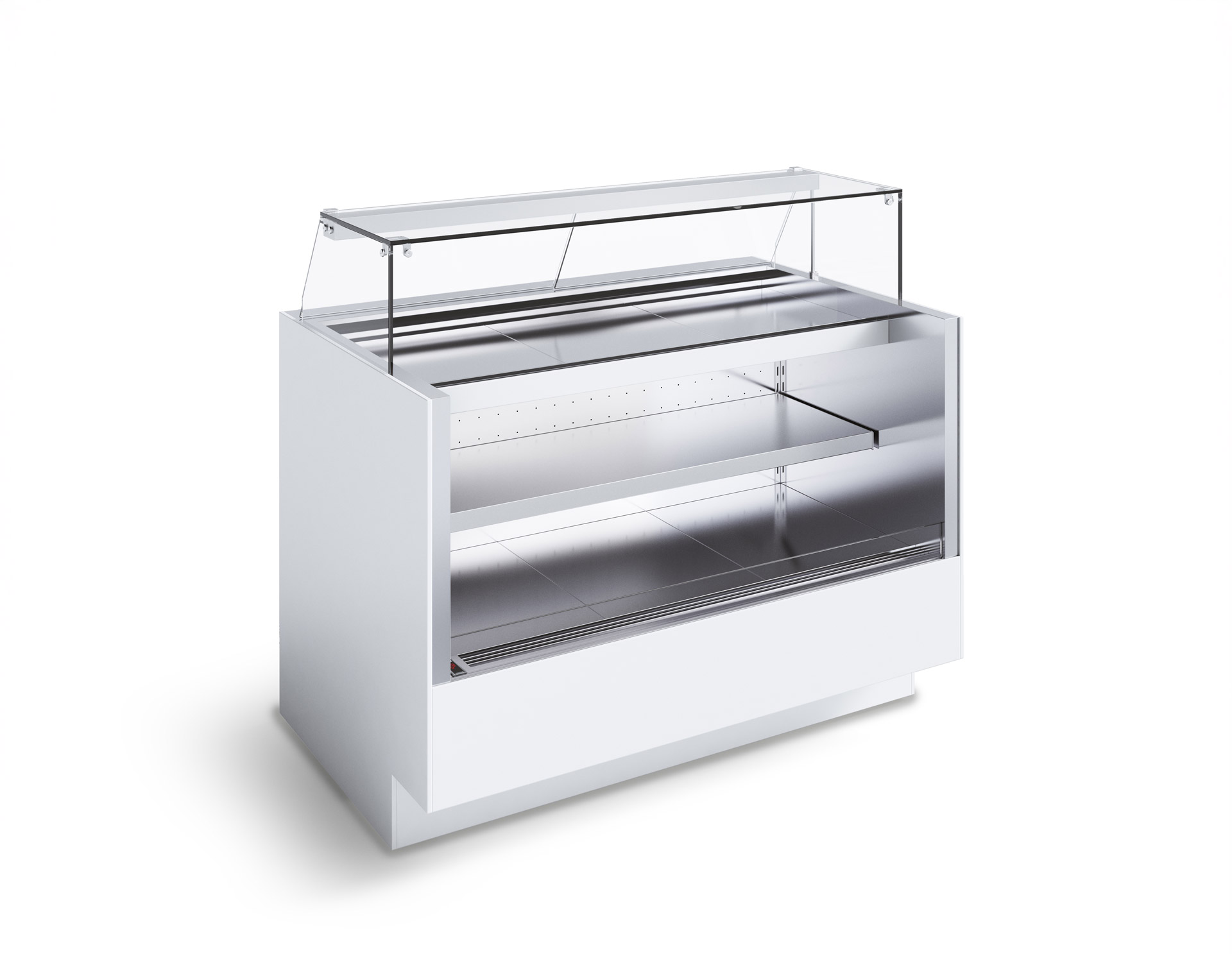

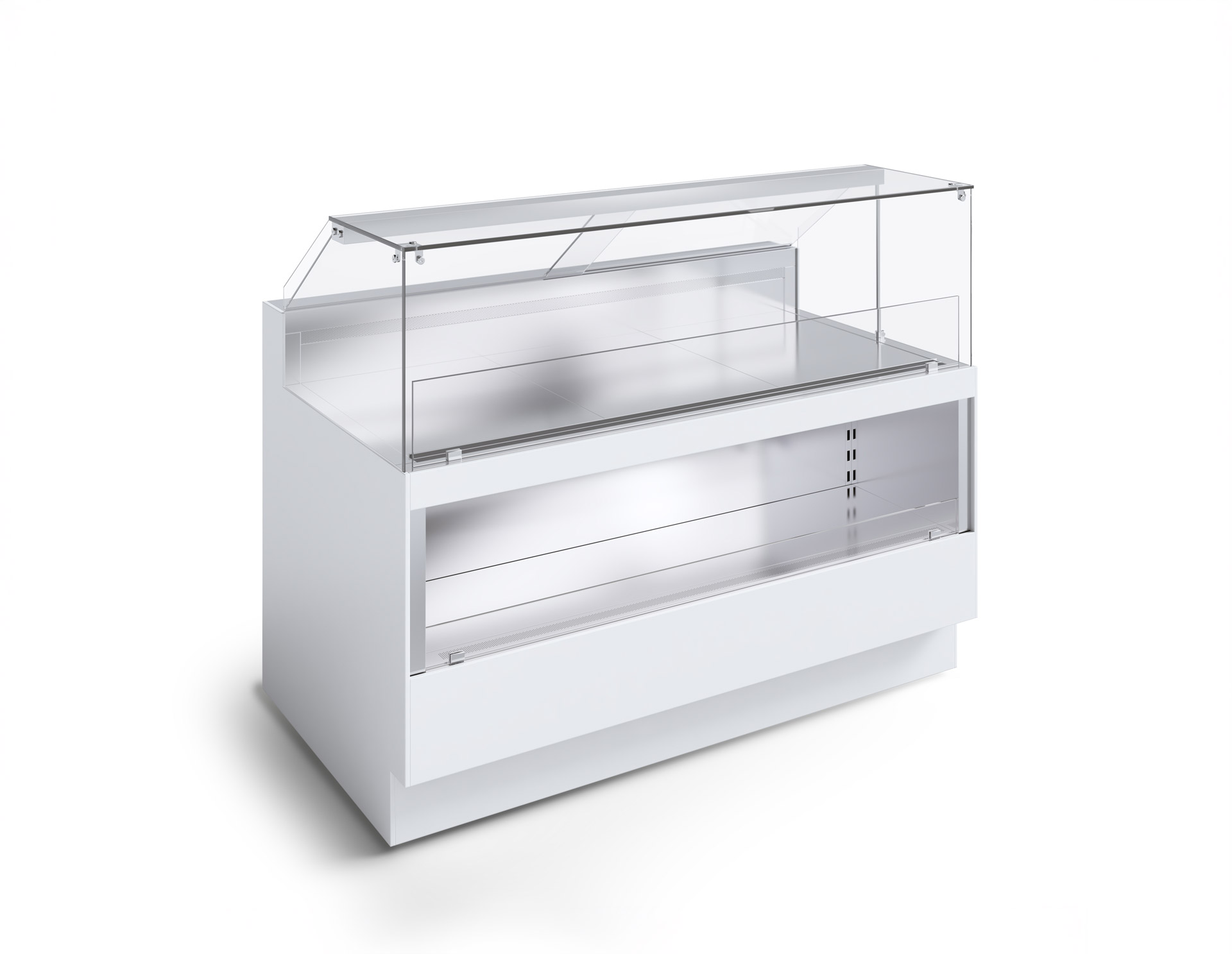

Model 6040 in a Combi version is ideal for expanding sales offerings. This version combines a refrigerated self-service compartment with a glazed one for assisted sales.
Part of the 6040 family, this model is ideal for expanding the sales offering thanks to its self-service refrigerated compartment, in addition to the glazed assisted-service section.
Design Highlights
Sleek and modern design for superb refrigeration solutions
All visible components can be customized by using Ciam's selection of Materials, which includes a wide variety of gres, acrylics, engineered stones, natural stones, epoxy powder-coated sheets, sheets with electroplating treatment, brass, and wood.

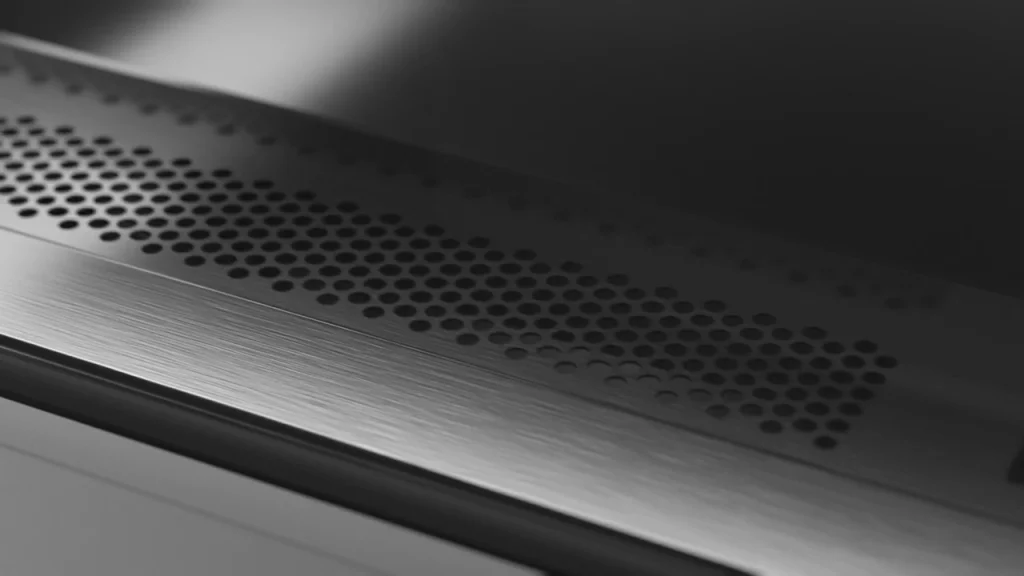

The air supply and intake are characterized by an elegant micro-perforated geometry.
The profiles and hardware are designed with a unique, minimalist style, most are made of steel with micro-cast molds, the standard finish is polished, but epoxy powder coating or galvanic treatment is available upon request.
Dimensions
Length: 1000, 1300, 1500, 1700, 2000mm
Depth: 830mm
Height: 1200, 1350mm
.
.
.

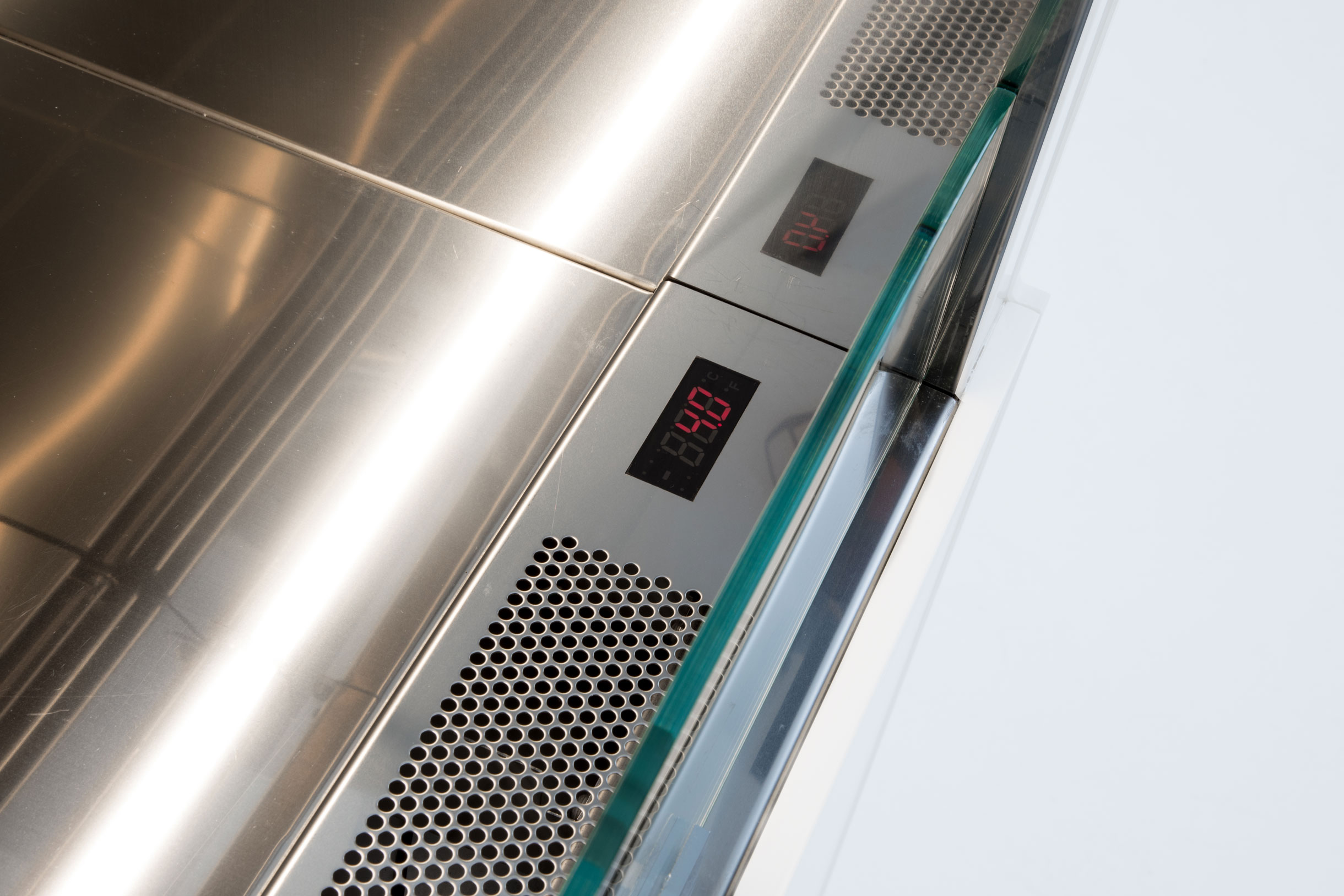

The digital temperature display, flush-mounted into the structure.

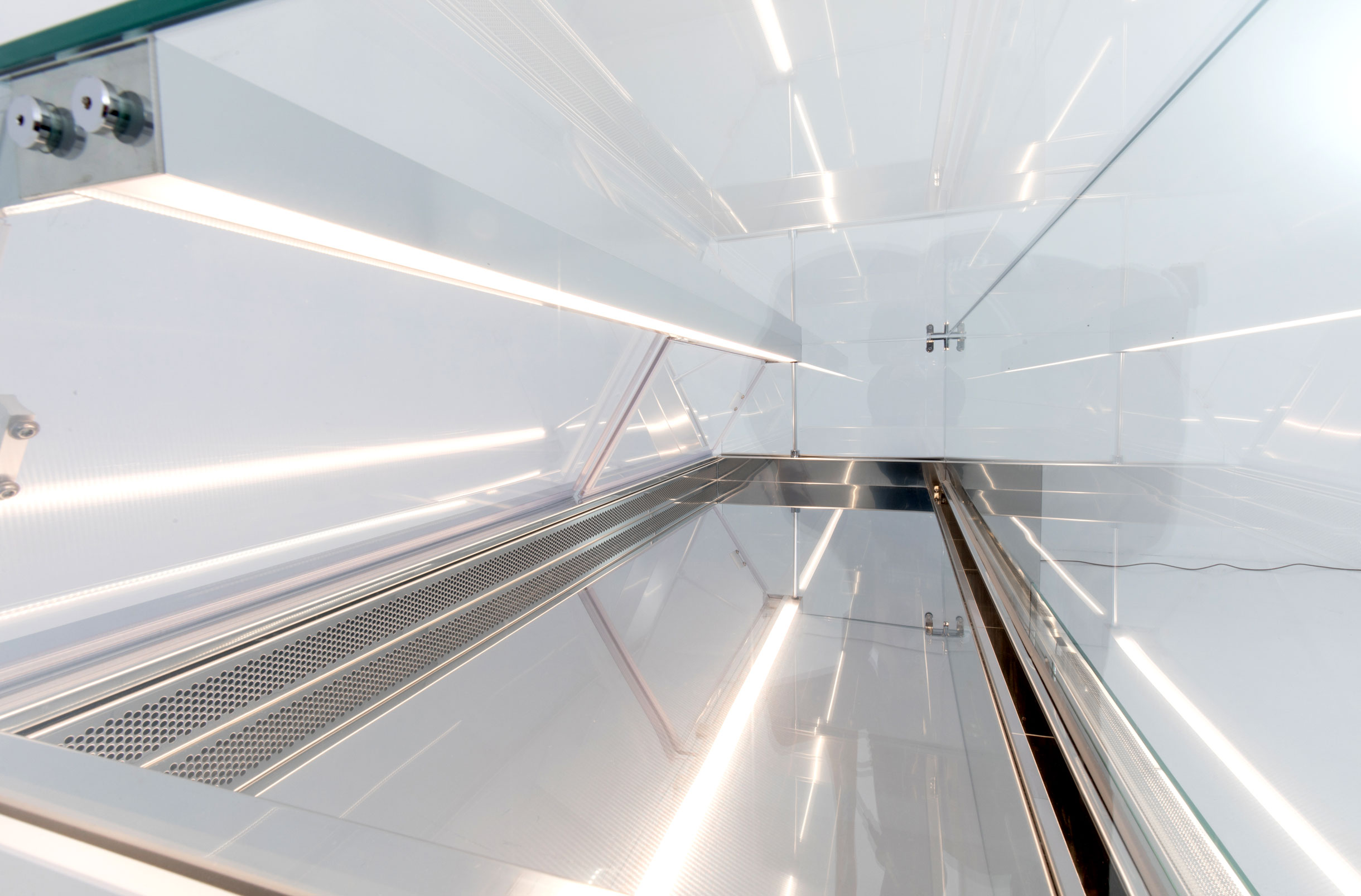

The perfectly integrated LED lighting diffuses a striking light at a colour temperature of 3000°K.
The evaporator unit can be supplied in the power-assisted lift-up version, this facilitates cleaning of the tank bottom.
The technical compartment is equipped with an easy cleaning filter in order to ensure quick cleaning of the filter. This helps the condensing unit to work properly and preserves it from breaking or failure.
An identification label featuring a QR code is located inside the refrigerator, providing access to downloadable user and maintenance manuals, as well as product-related technical documentation.
Available on request, the Ciam Connect package enables cloud connectivity for remote monitoring and management of a wide range of functions. The service also includes alarm notifications and preventive maintenance tools designed to help avoid faults and downtime.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
Ventilation
Dry Warm
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
N.D.
Refrigerant gas
N.D.
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
N.D.
Operating temperature
+80°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
N.D.
Ventilation
Bain-marie Warm
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
N.D.
Refrigerant gas
N.D.
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
N.D.
Operating temperature
+80°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
N.D.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Electrical
Refrigerant gas
R455a
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
E
Ventilation
Static
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic
Refrigerant gas
R290 (int.) / R452A
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+10°C / +2°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
E
