Eclipse

Excellence in shape, plug-in simplicity

Eclipse showcases are conceived to have excellent and high performances.

The range consists of 4 modules: L1150 (12 pans), L1650 (18 pans), L2150 (24 pans), L2150 (12+12 pans with 2 different temperatures) with curved glass. Eclipse showcases can be joined together with the same aesthetics (optional) and all the internal parts and the external part on the operator side are coated in AISI 304 polished stainless steel. Monolithic tanks are insulated with water-based ecological polyurethan.

Gelato

Design Highlights

Clean lines and efficient performance for ready-to-use refrigeration solutions.

Customization

Display area

The display compartment is designed to accommodate both 5-liter tubs (360x165x120h mm) and 6-liter tubs (360x250x80h mm).

Curved Glass Structure

The curved front glass is heated and features an upward opening system to facilitate cleaning operations. The side panels are made of heated laminated glass, complete with RAL 9005 (jet black) aesthetic silk-screening and silver aluminum profiles that extend along the sides of the paneling.

Dimensions

Lenghts: 1150, 1650, 2150 mm
Depth: 1092 mm
Height: 1300 mm

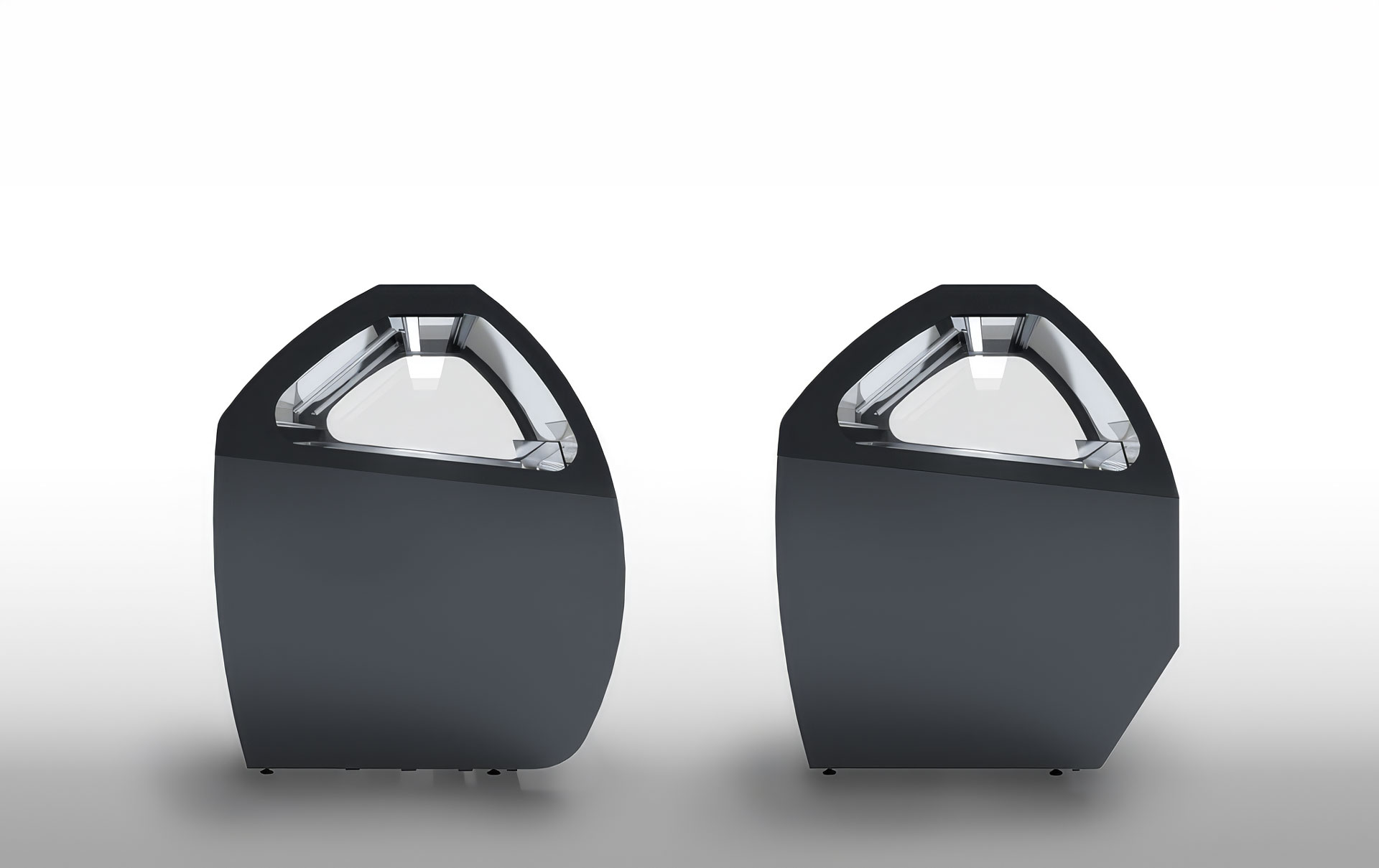

Eclipse Product Range

The range consists of 4 modules: L1150 (12 pans), L1650 (18 pans), L2150 (24 pans), L2150 (12+12 pans with 2 different temperatures) with curved glass.

Straight paneling

The HDF paneling (straight version) includes side and front panels in a standard RAL 9005 jet black finish, featuring a matching micro-perforated lower grille. Custom RAL colors are available upon request.

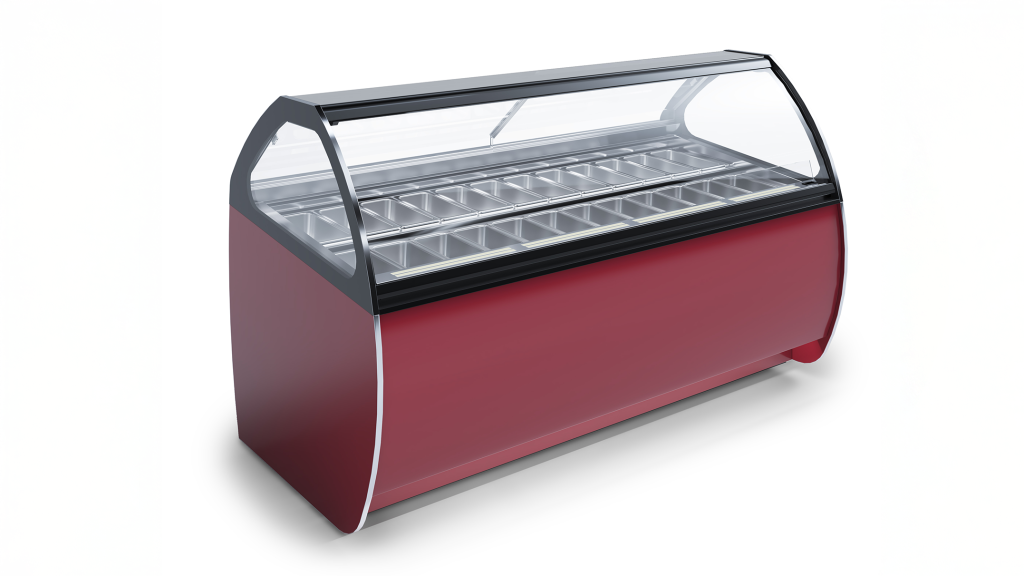

Curved paneling

The curved design enhances Eclipse's distinctive aesthetic, making it a unique interior design element. Side and front panels are made of HDF with a standard RAL 9005 (jet black) finish and a matching micro-perforated bottom grille. Upon request, the coating can be customized with a choice of RAL colors.

Channeling

Eclipse showcases can be joined together with the same aesthetics.

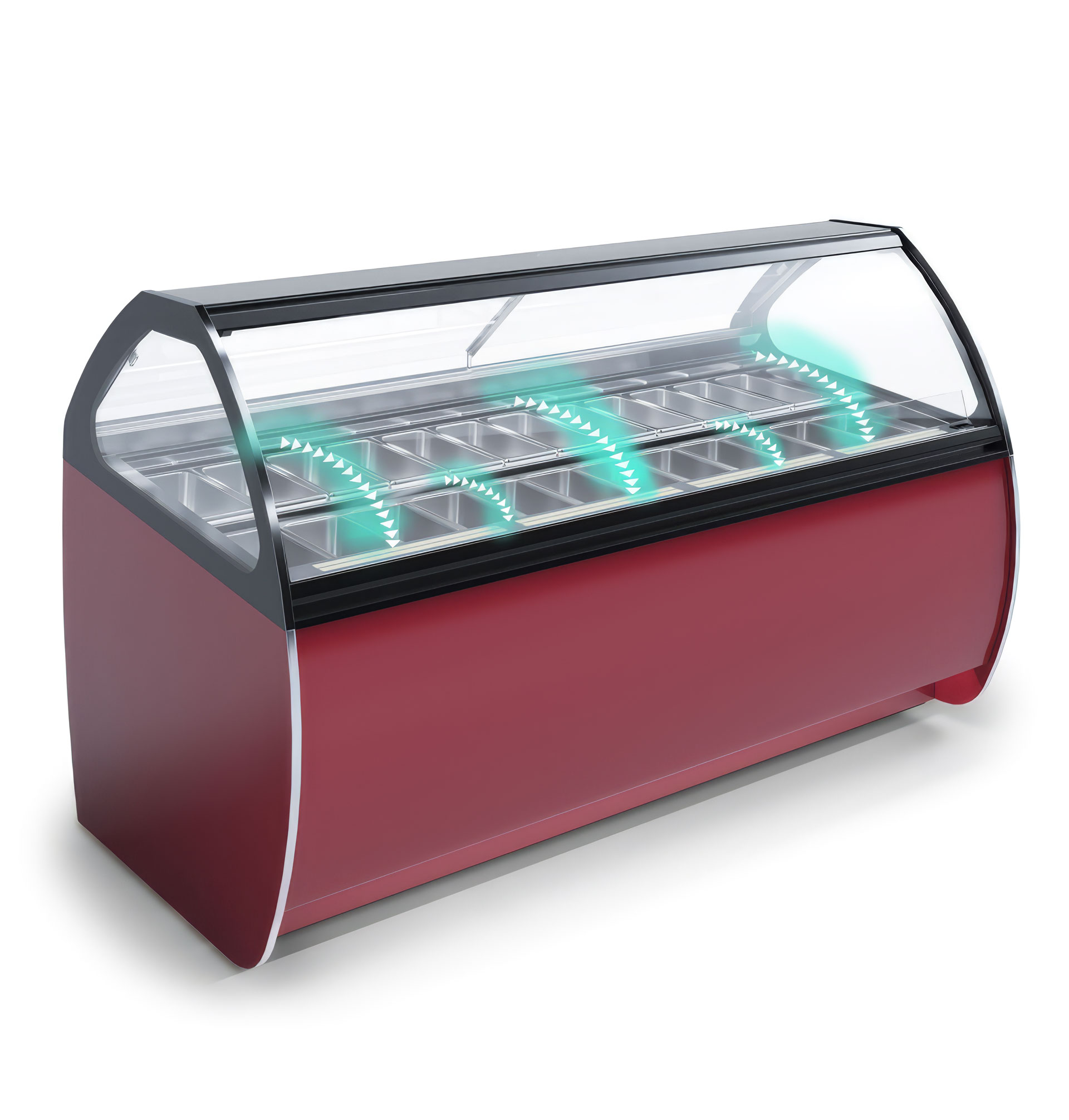

Double air-flow refrigeration

Double-air flow refrigeration maximizes the performance of the display case by achieving perfect uniformity of cooling on all trays.

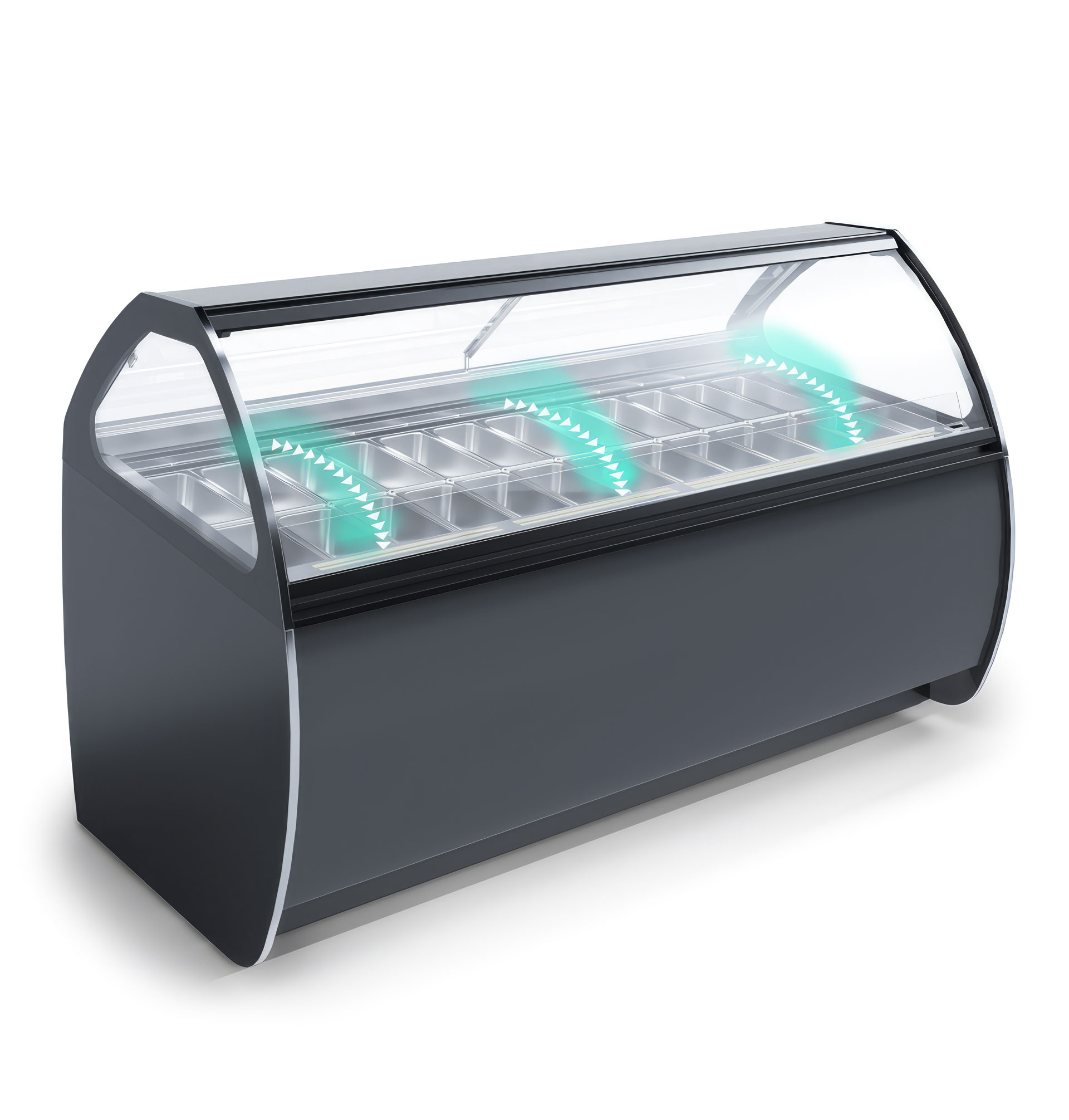

Single air-flow refrigeration

Single delivery refrigeration allows the installation of the double row of storage pans (max. height of pans 120mm).

Touch control panel

The elegant touch control panel comes as standard on all refrigerated modules, ensuring intuitive and immediate control of the main operating functions.

Lighting - 3000°K

The perfectly integrated LED lighting diffuses a striking light at a colour temperature of 3000°K.

Yris System

On request, the innovative Yris system can be installed, allowing the showcase lighting to be controlled via app.

PETG sliding doors

The refrigerated compartment is accessible through PETG sliding doors, equipped with perimeter gaskets.

QR code

An identification label featuring a QR code is located inside the refrigerator, providing access to downloadable user and maintenance manuals, as well as product-related technical documentation.

Ciam Connect

Available on request, the Ciam Connect package enables cloud connectivity for remote monitoring and management of a wide range of functions. The service also includes alarm notifications and preventive maintenance tools designed to help avoid faults and downtime.

Defrost Line

The DEFROST LINE technology ensures ultra-fast cycle-inversion defrosting, which reduces temperature recovery times while minimizing energy consumption and thermal stress on the product.
