Category Horizontal showcases
Mirror is a refined and elegant display table designed to dematerialize through its own reflection, highlighting the displayed product like a real precious jewel.
Entirely covered with mirror and back-painted glass elements, Mirror represents a new and contemporary way of conceiving the counter, standing free in the center of the room. Mirror is available in positive and negative refrigeration versions. The models are perfectly channelized and consist of 3 linear display cases plus an end display case to complete island compositions.
Design Highlights
Sleek and modern design for superb refrigeration solutions

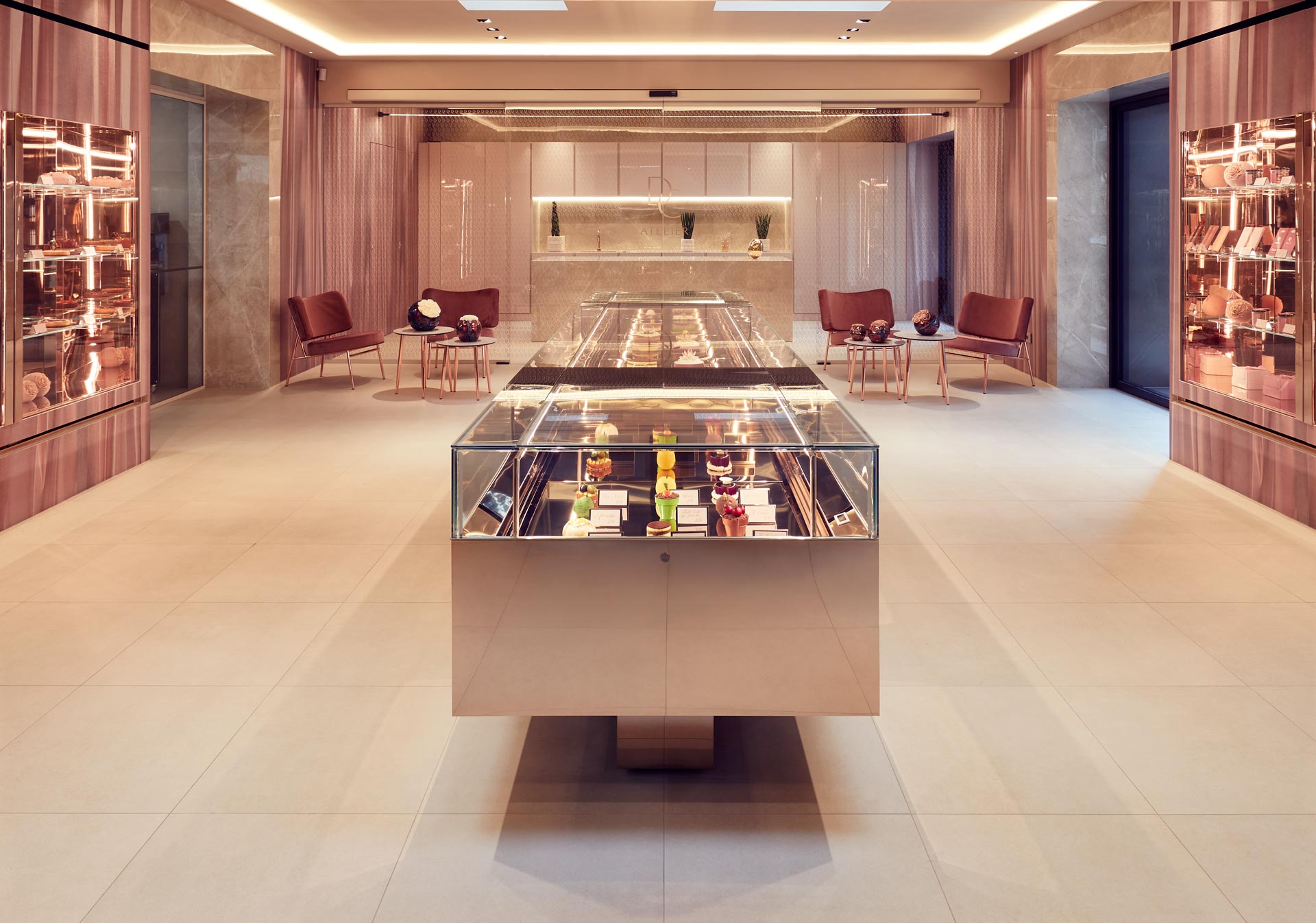

Mirror is an elegant refrigerated display table, ideal to be placed in the center of the room. With its sleek design and ergonomic proportions, Mirror provides outstanding visibility of the displayed product.

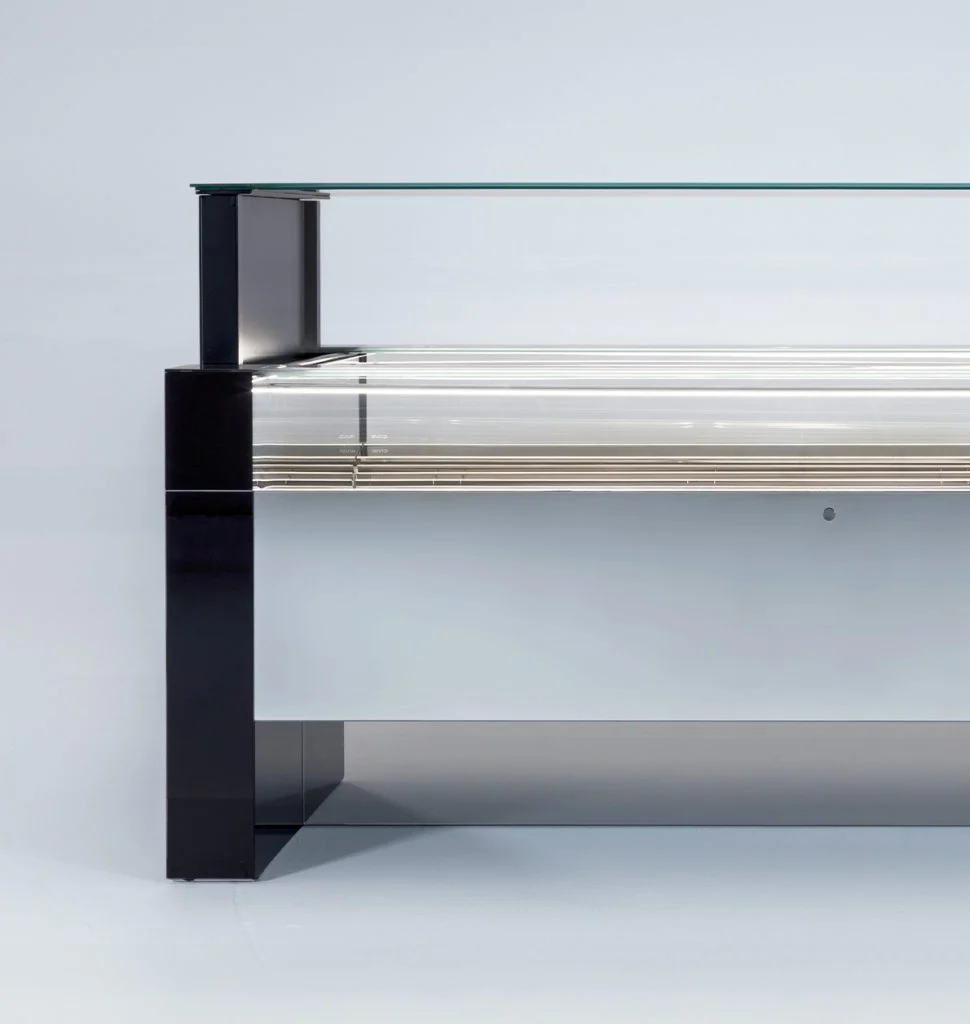

The glass is opened thanks to an automatic system: with a simple touch of the flush button, the top glass automatically slides upward, allowing the operator to access the refrigerated compartment. Subsequently, a further pulse on the button allows the glass to automatically return to its original closed position safely.

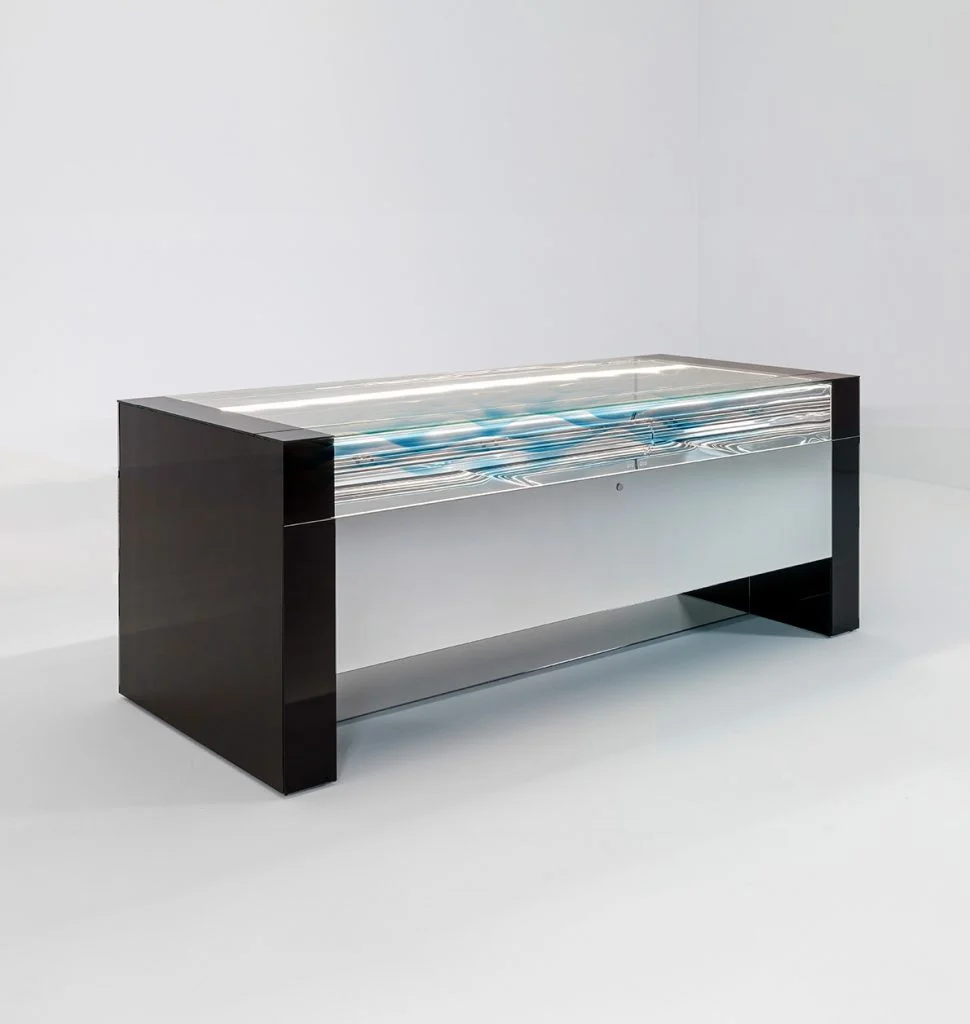

Mirror display cases feature a high-efficiency ventilated refrigeration system that does not deteriorate the displayed product.

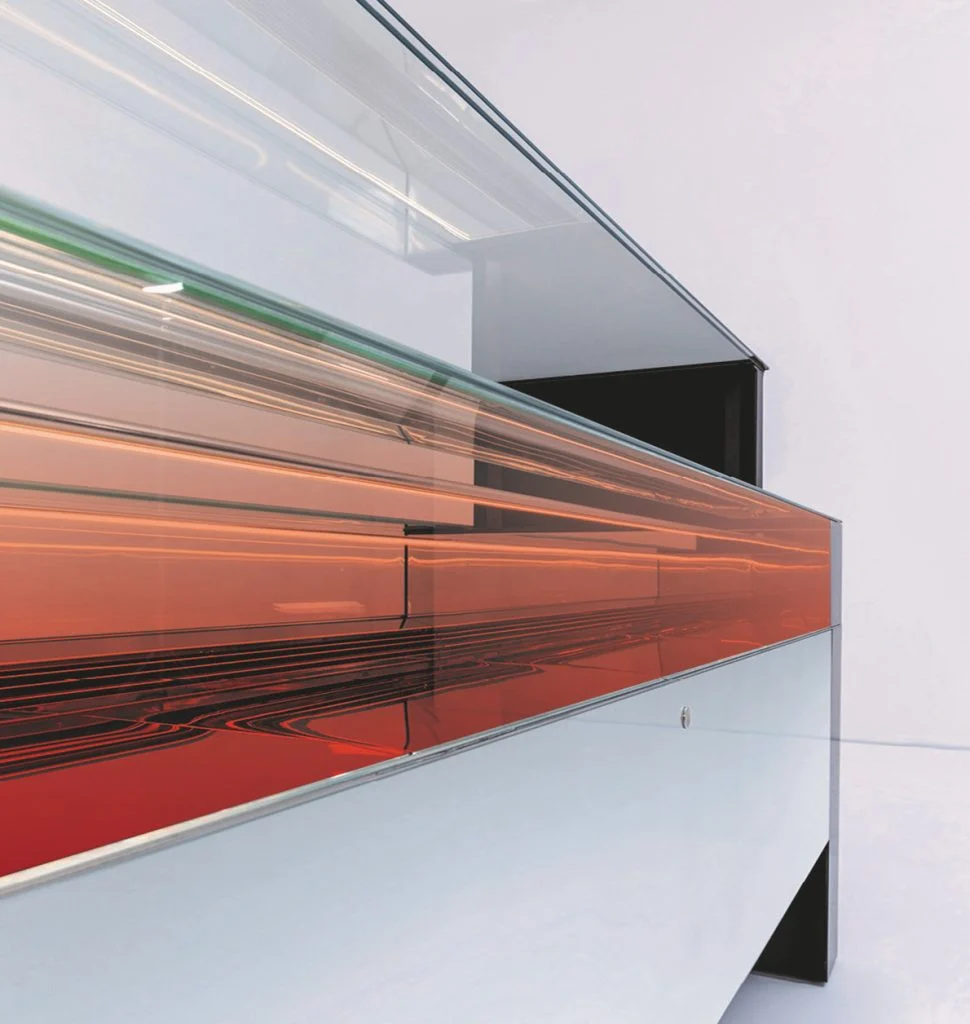

The perfect transparency and lightness of the showcase is the basis of a quality display, which is why Mirror is equipped with laminated and heated thermal glass that prevents condensation in any environmental conditions.
Dimensions
Lenghts: 1350, 1850, 2350 mm (+ terminale 920 mm)
Depth: 994 mm
Height: 919 mm

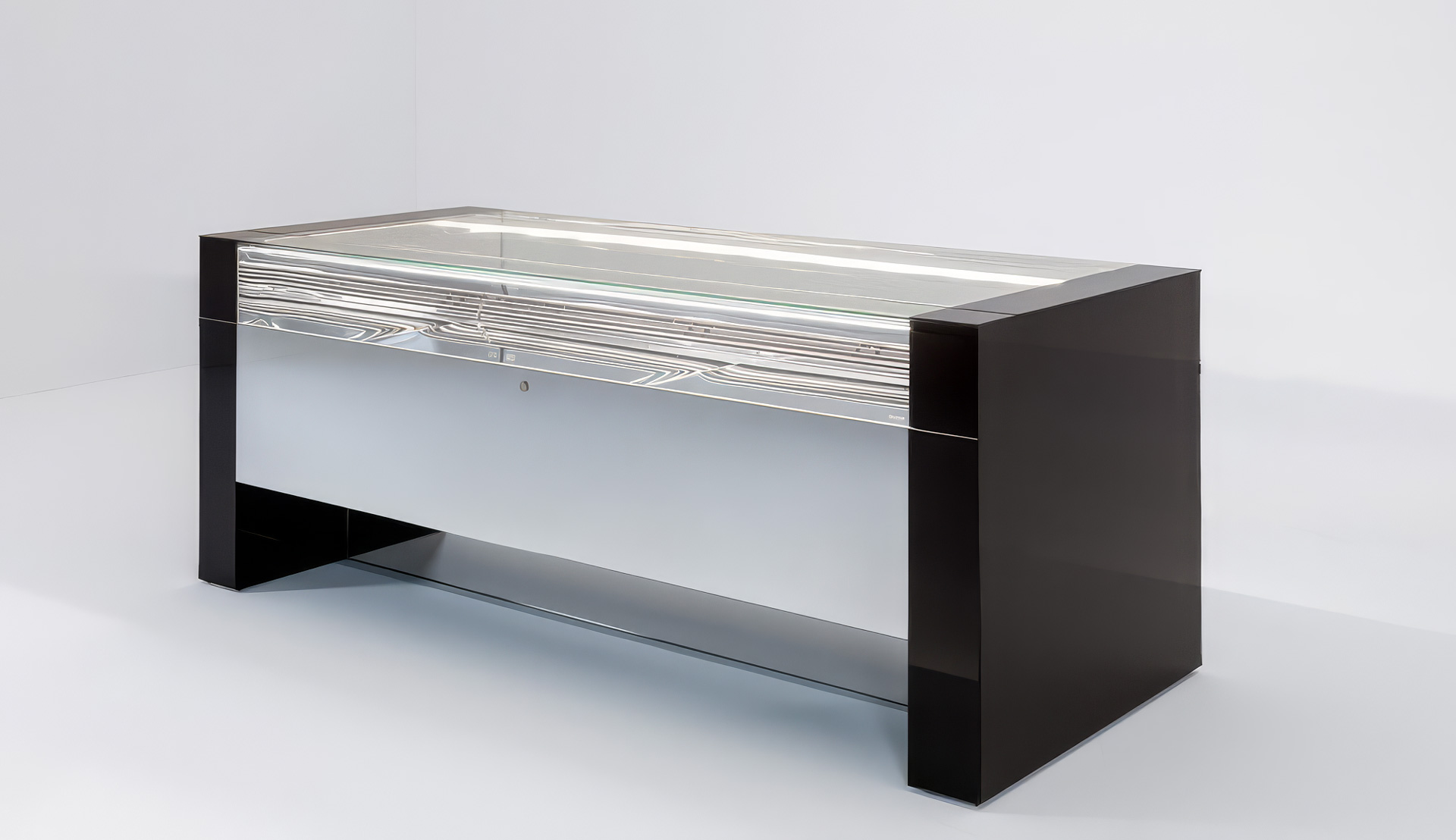

Mirror is available in both a positive-temperature version for fresh pastries and chocolate and negative-temperature version for frozen pastries. Mirror display cases are offered in three lengths (1350, 1850, 2350 mm) and can be completed with 920 mm side modules.

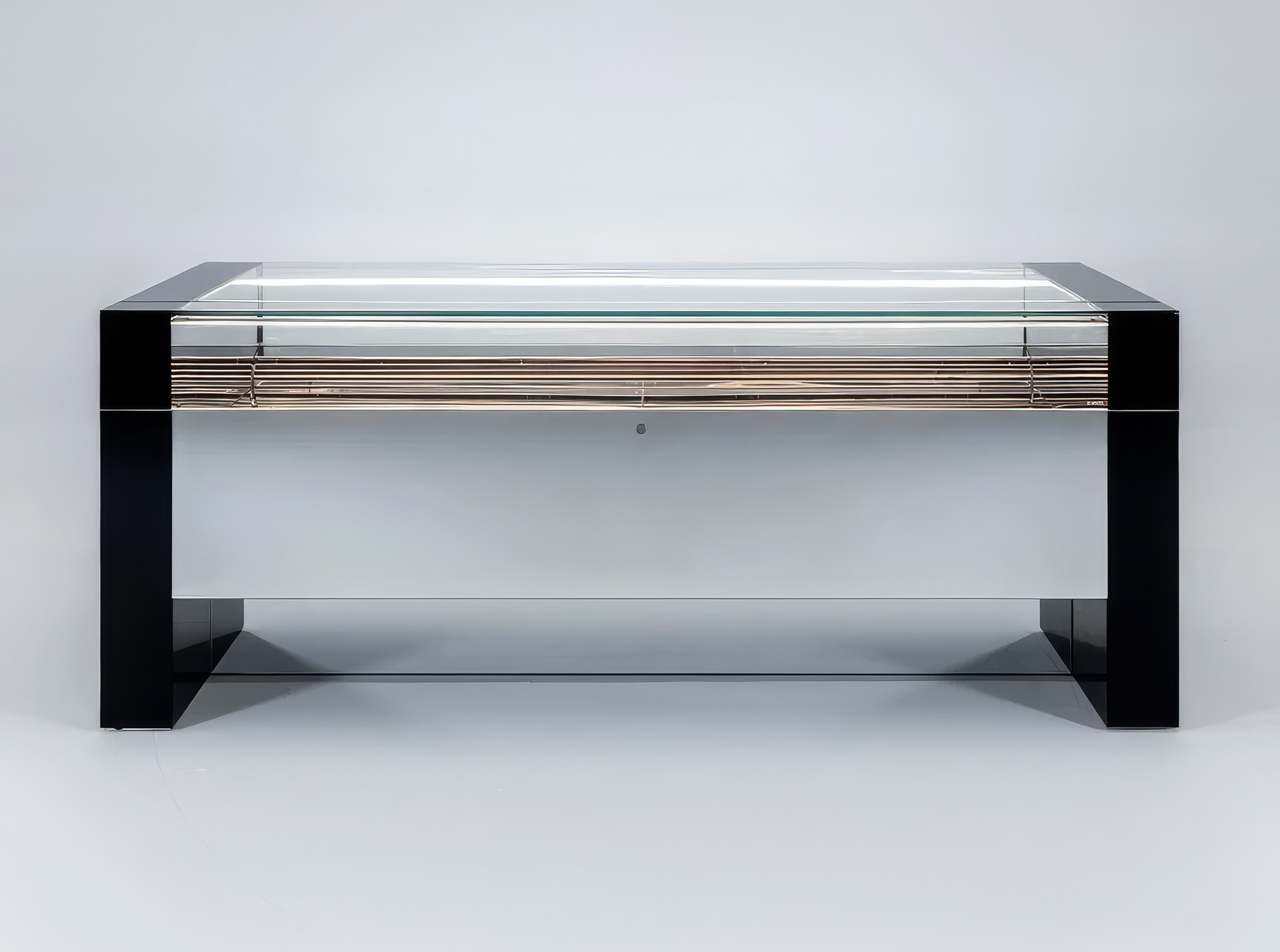

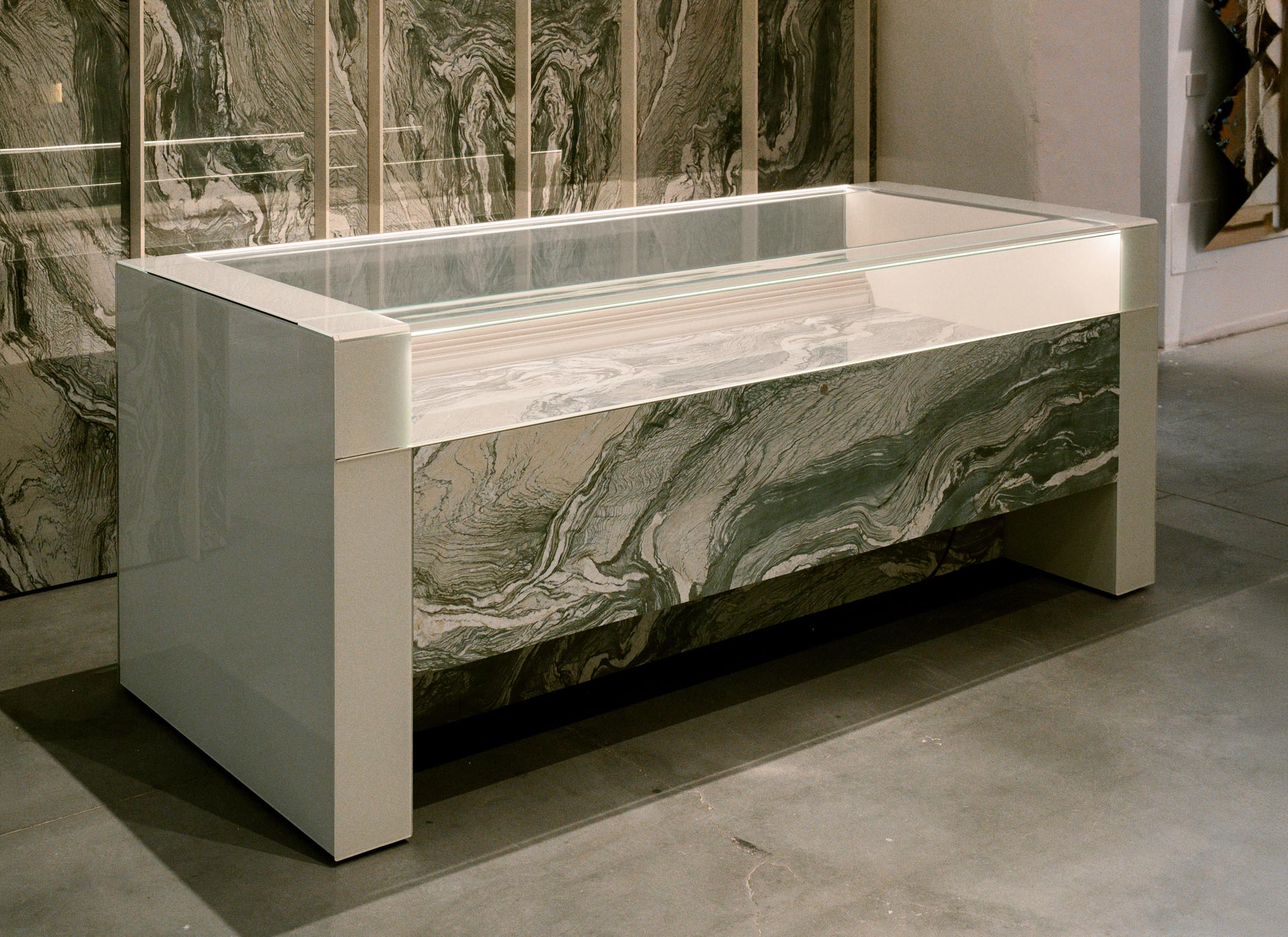

The paneling of Mirror is made of glass and mirrors that give the feeling of lightness and suspension, upon request the finishes can be customized in colors and materials.

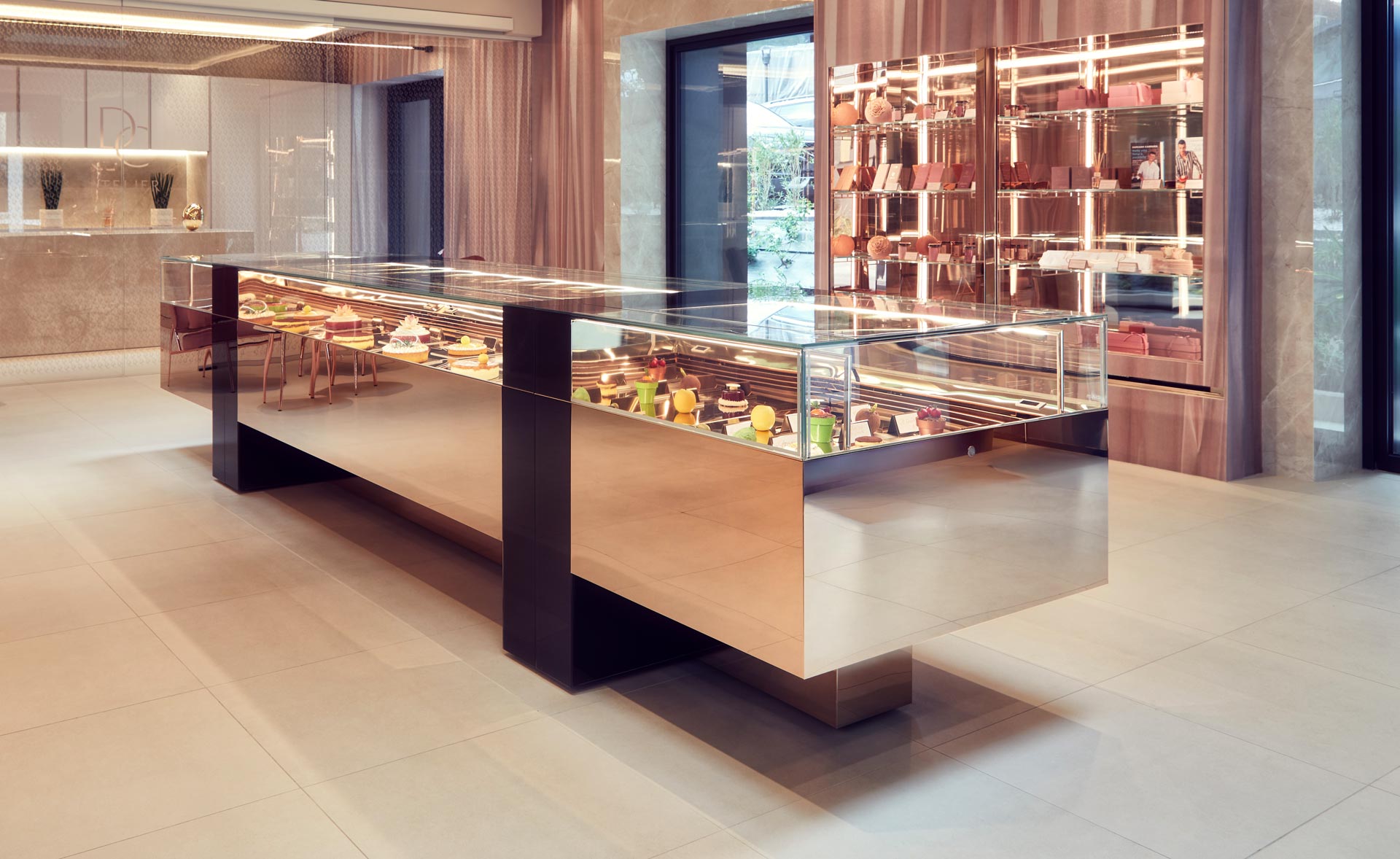

Mirror showcases can be perfectly channeled in aesthetic continuity.

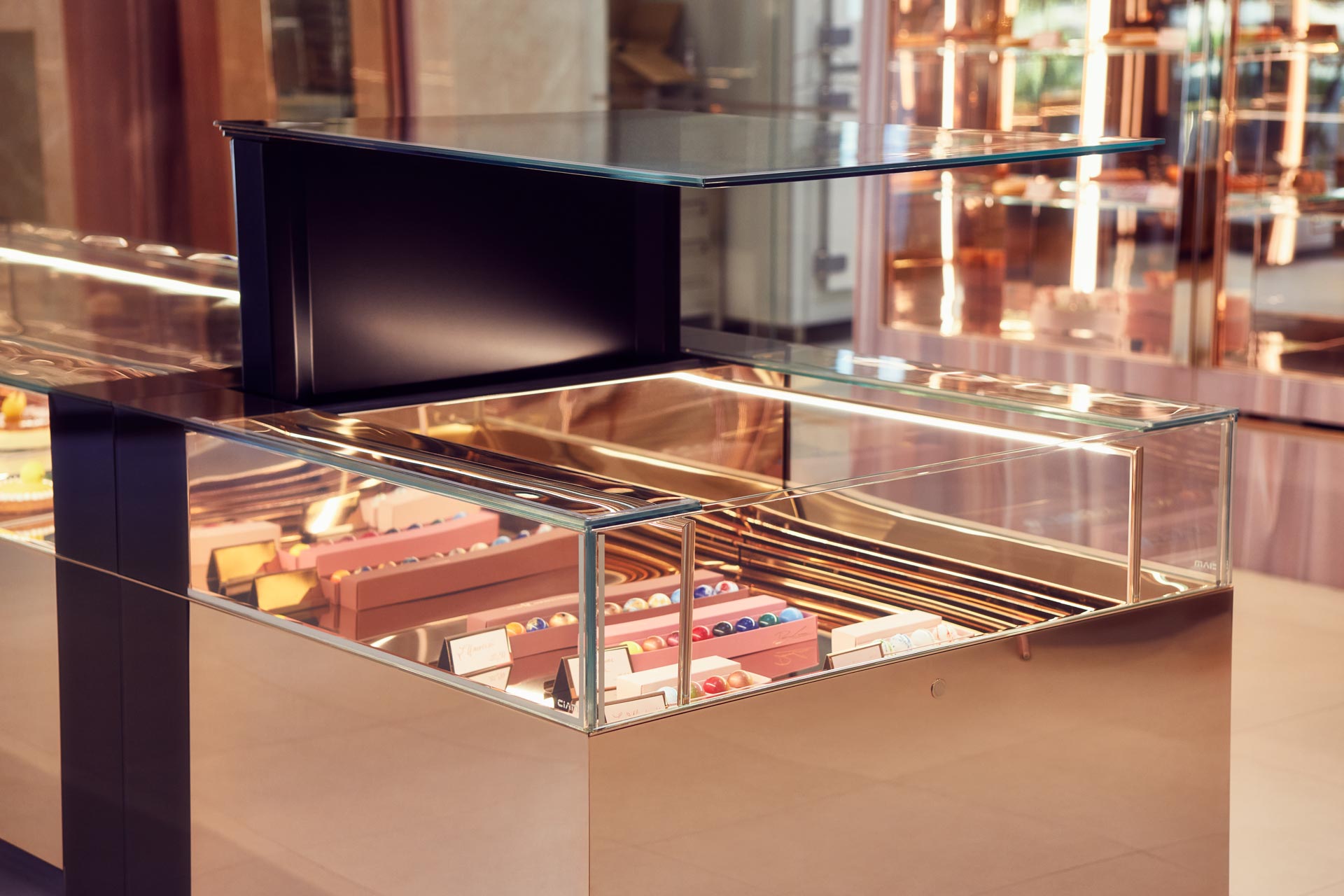

Mirror is designed to be placed in the center of the space, the end refrigerated element facilitates the use of island layouts, allowing the operator access from all four sides.
An electronic thermostatic valve can be included as optional equipment, specifically in the case of connections to refrigeration rack system.
The elegant touch control panel comes as standard on all refrigerated modules, ensuring intuitive and immediate control of the main operating functions.
The perfectly integrated LED lighting diffuses a striking light at a colour temperature of 3000°K.
Upon request, it is possible to have humidity control on refrigerated cabinets, specifically for fresh pastry and praline use; this is compatible with both the standard touch control unit and the Touch Pro control panel.
The electrical system is enclosed in a special airtight box with quick connectors, this system simplifies installation and maintenance.
Available on request, the Ciam Connect package enables cloud connectivity for remote monitoring and management of a wide range of functions. The service also includes alarm notifications and preventive maintenance tools designed to help avoid faults and downtime.
Compatible with the MULTIX system (patented), which allows working temperature and humidity programmes to be set, recorded and monitored according to the customer's requirements.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Autoamitc / Reverse cycle
Refrigerant gas
FGas (UC ext.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Semi-Hermetic
Operating temperature
-18°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
