The 900/750 series include refrigerated, heated and ambient modular showcases, available in: six lengths, three corner models, two depths (900 and 750 mm) and up to ten types of glass gantries.
This series is distinguished by the classic display of the lowered display compartment, which offers a large capacity. The timeless design of the showcases allows designers to easily integrate them into any stylistic context. The polished aluminum ceiling lights are arranged for the installation of 3000°K diffused LEDs. The upper ceiling light fixture is integrated with tracks for sliding the operator-side plexiglass doors, ensuring that the refrigerated compartment is hermetically sealed with perimeter gaskets. Glass shelves are attached to the sides by chromed supports and can integrate the overhead lighting fixture as optional equipment. Refrigerated models use eco-friendly gas R290 as standard and are equipped with built-in compressor.
Design Highlights
Sleek and modern design for superb refrigeration solutions
The 900/750 series include refrigerated, hot and neutral modular display cases, available in as many as six types of length, three types of corner models, two types of depth (900 and 750 mm).
Tutti gli accessori di ferramenta sono stati progettati in maniera coordinata e sono in finitura cromata.
Dimensions
Length: 1000, 1250, 1500, 2000, 2500, 3000mm
Depth: 830, 968, 980mm
Height: 1200, 1350mm

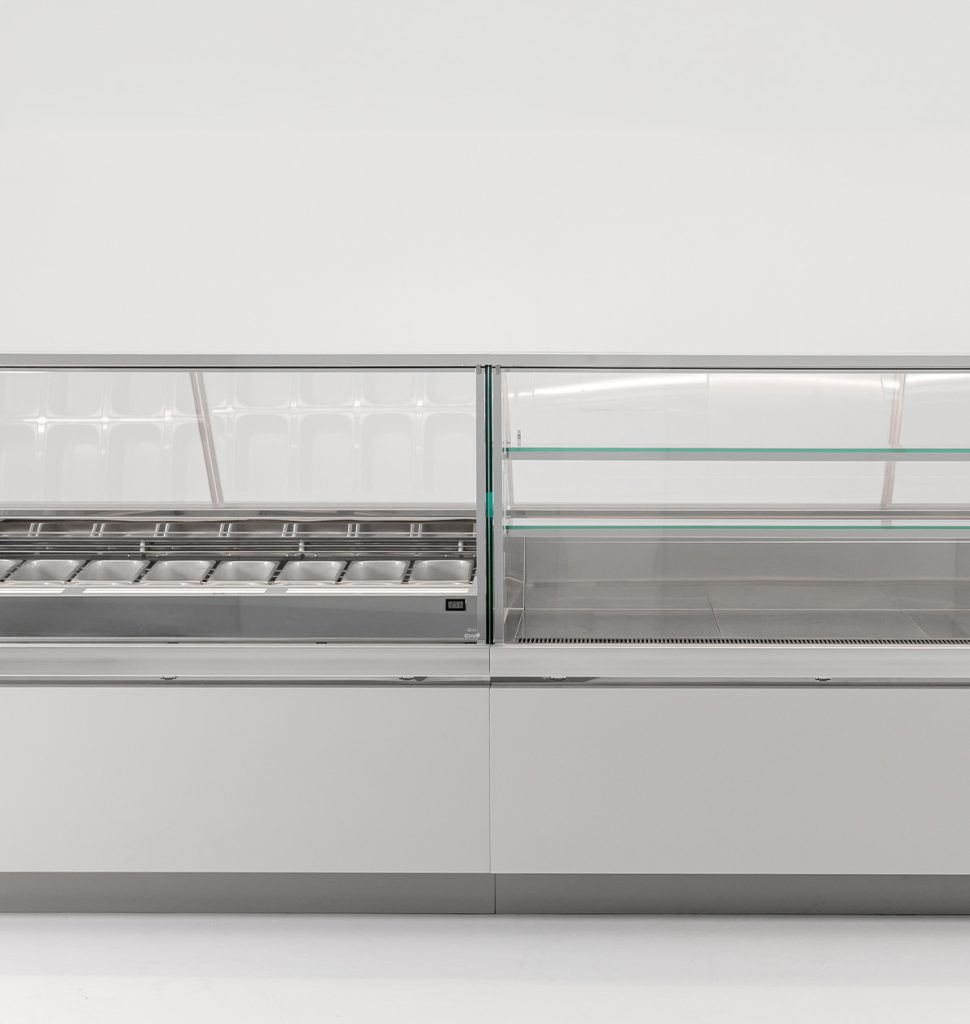

The 900 and 750 series display cases are perfectly channelable in aesthetic continuity regardless of the type of system (ice cream, pastry, deli...).

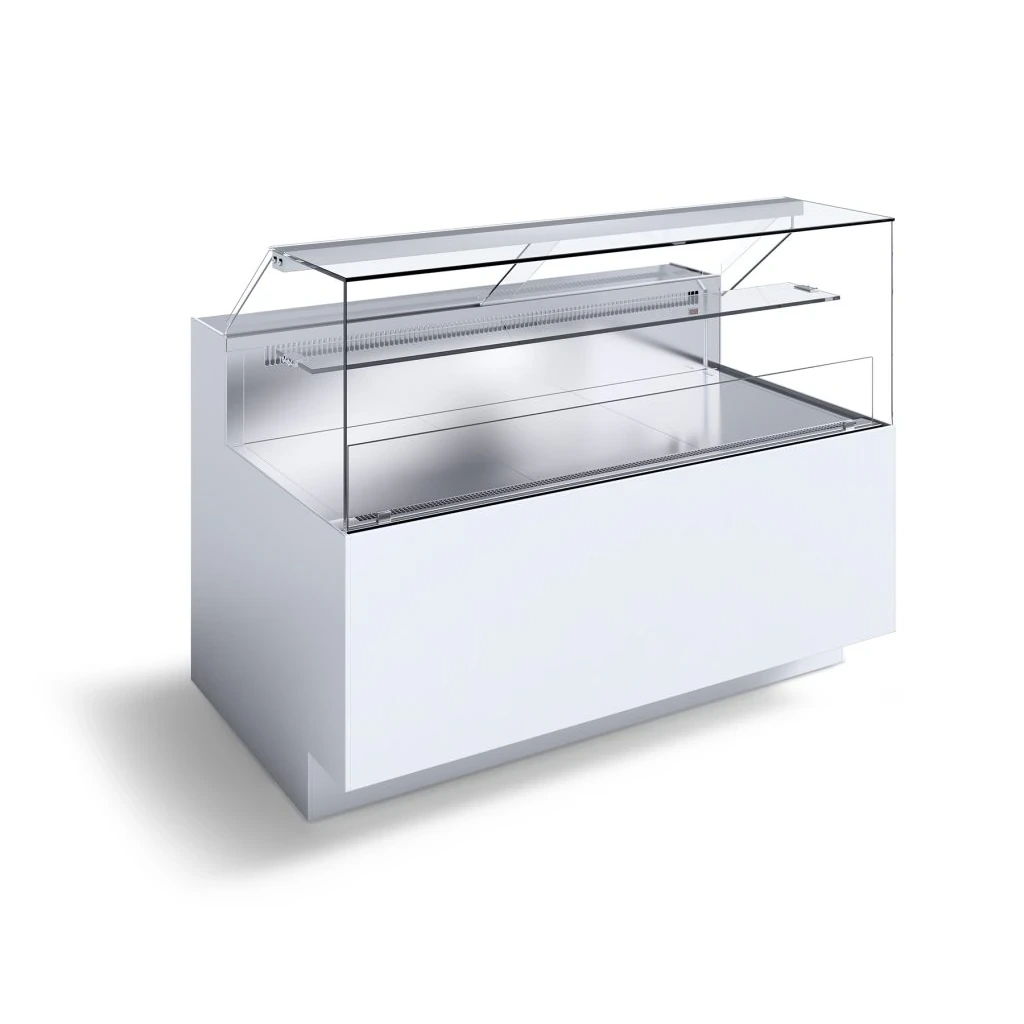

UV glued glass | heated glass sides | bright aluminum LED light fixture | N.01/02 fixed glass shelves | PETG easy sliding doors system | | anti-fog front air baffle.

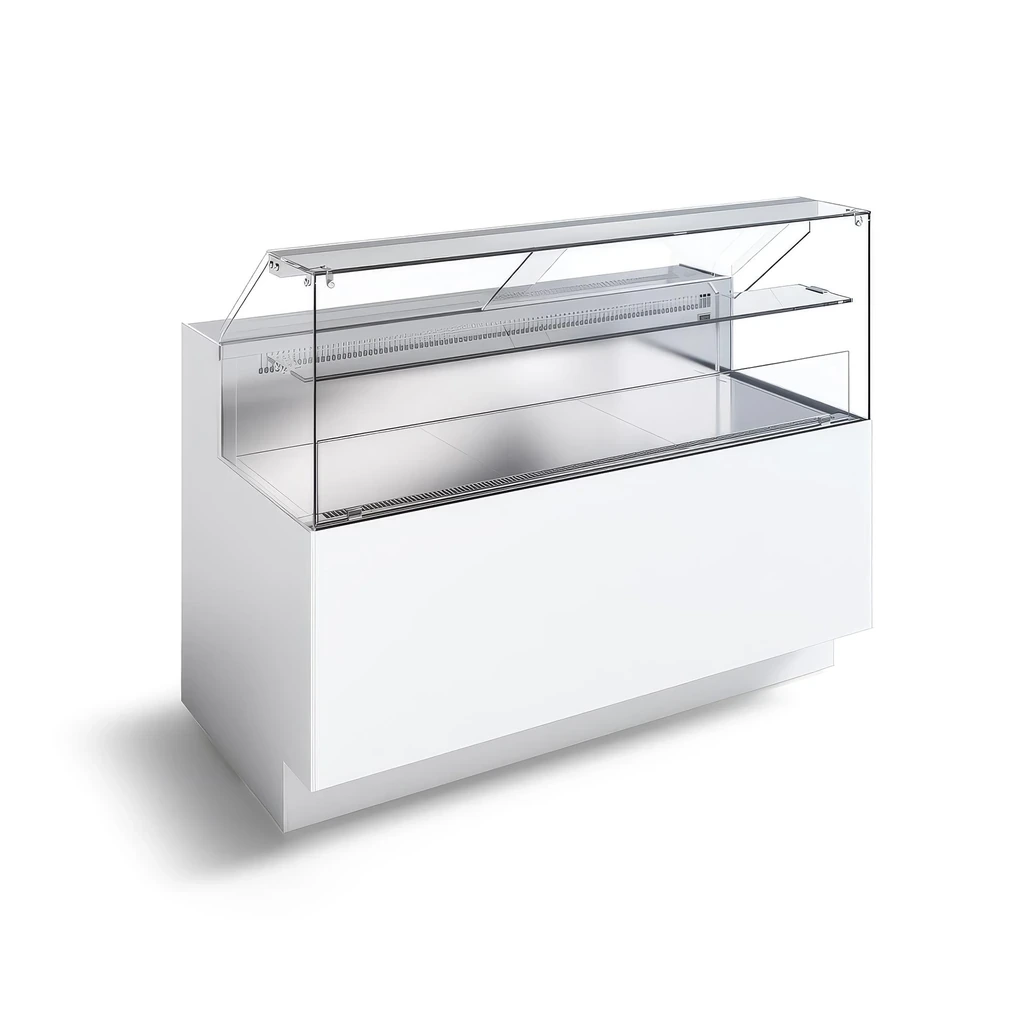

Glass structure with mechanical fastening | heated glass sides | bright aluminum LED light fixture | N.01/02 fixed glass shelves | PETG easy sliding doors system | anti-fog front air baffle.

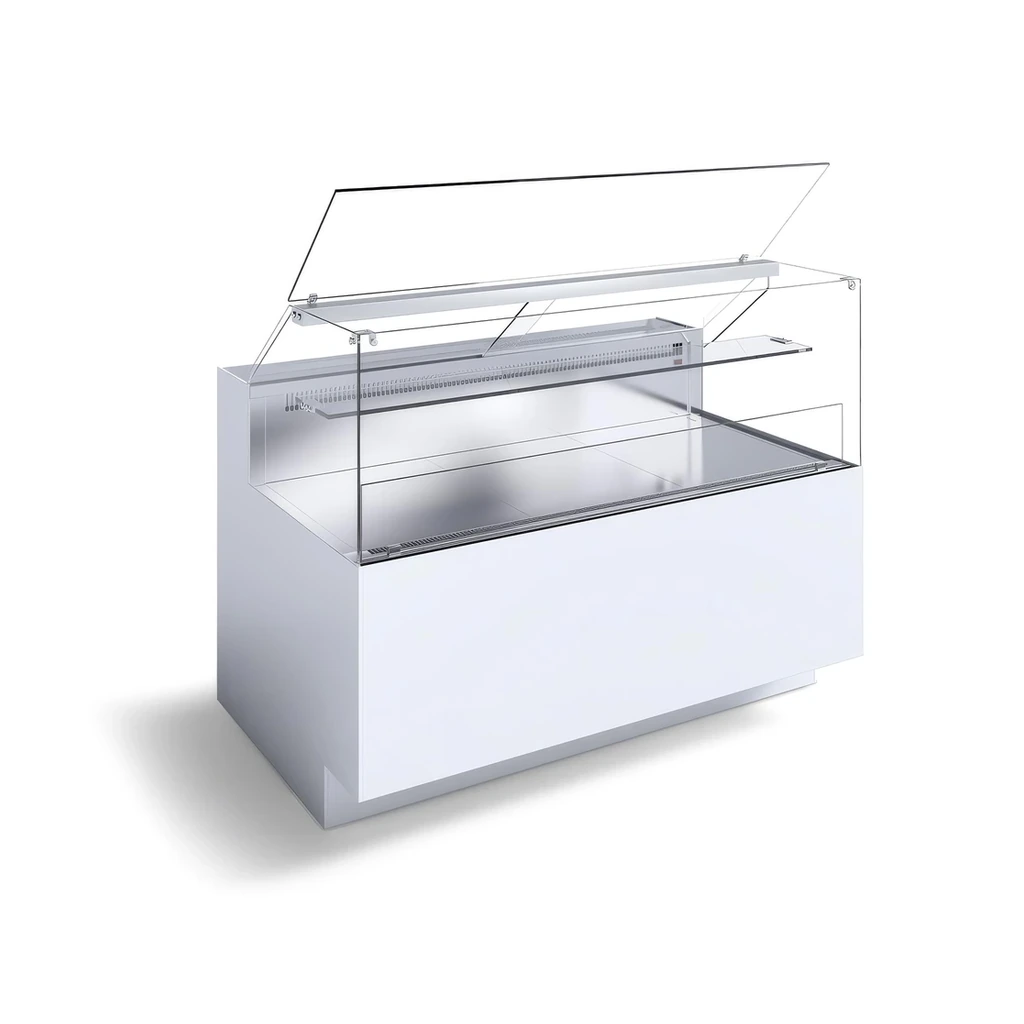

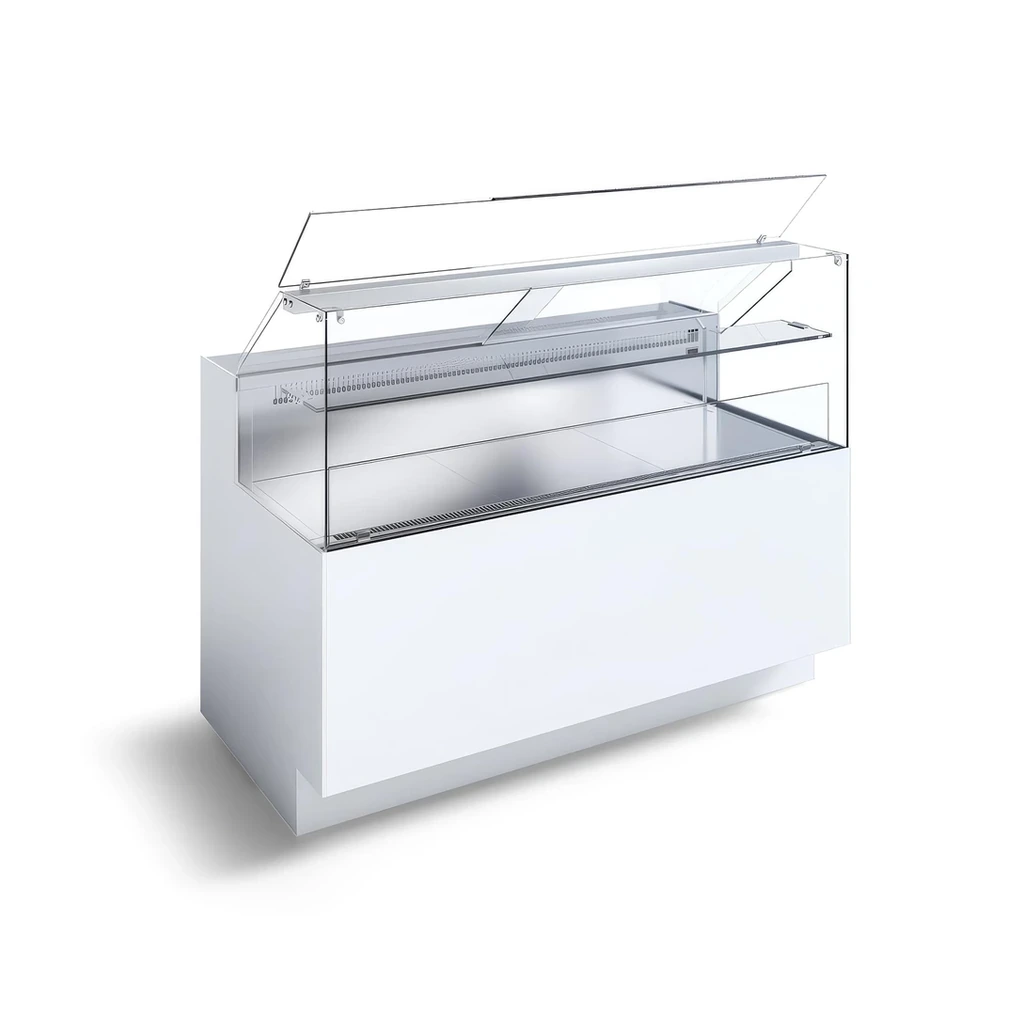

Upper glass structure screwed front glass on aluminum blocks | heated glass sides | the top glass can be lifted up | upper glass structure, thickness 10mm | N.01/02 fixed glass shelves | LED lighting canopy in brilliant aluminum | plexiglas sliding doors.

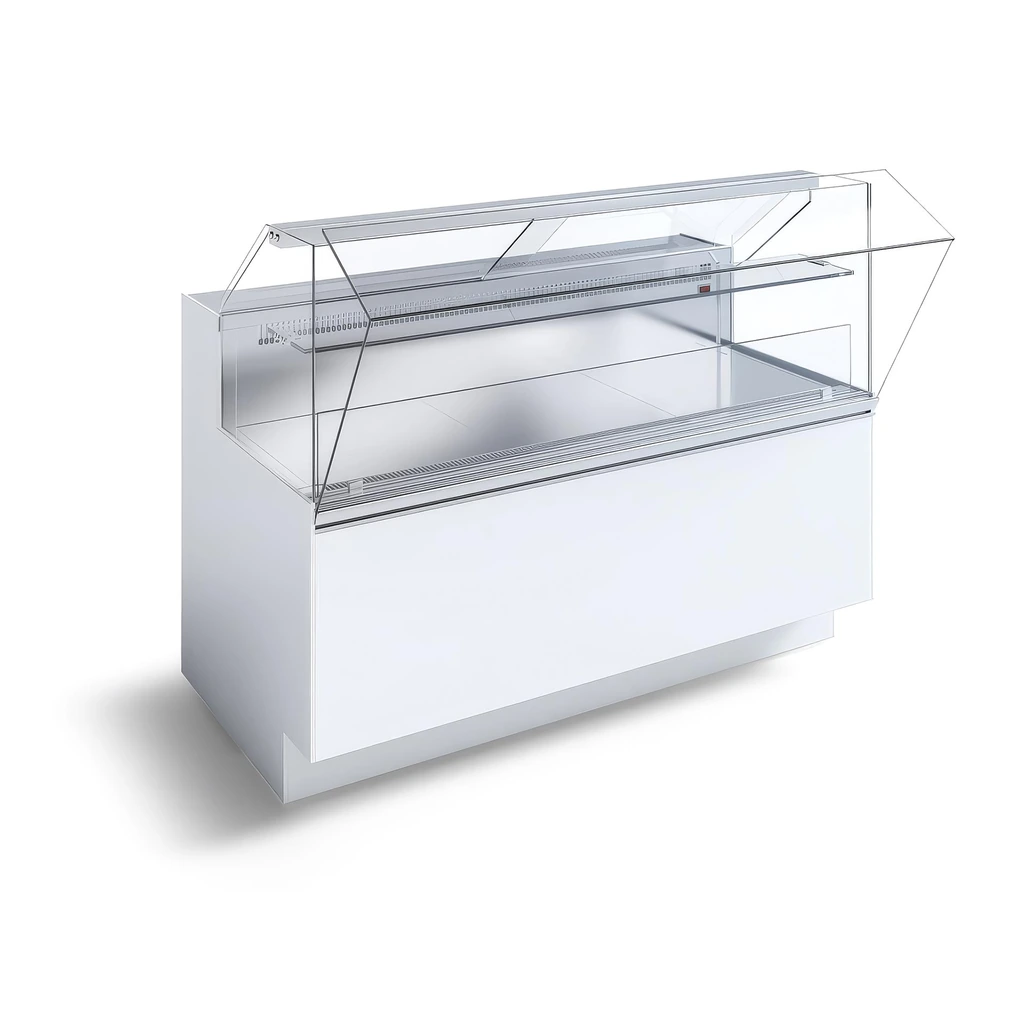

UV glued glass downward opening hinged on bright aluminum profile | side glasses with anti-fog treatment | bright aluminum LED light fixture | fixed glass shelf | PETG easy sliding doors system | anti-fog front air baffle.

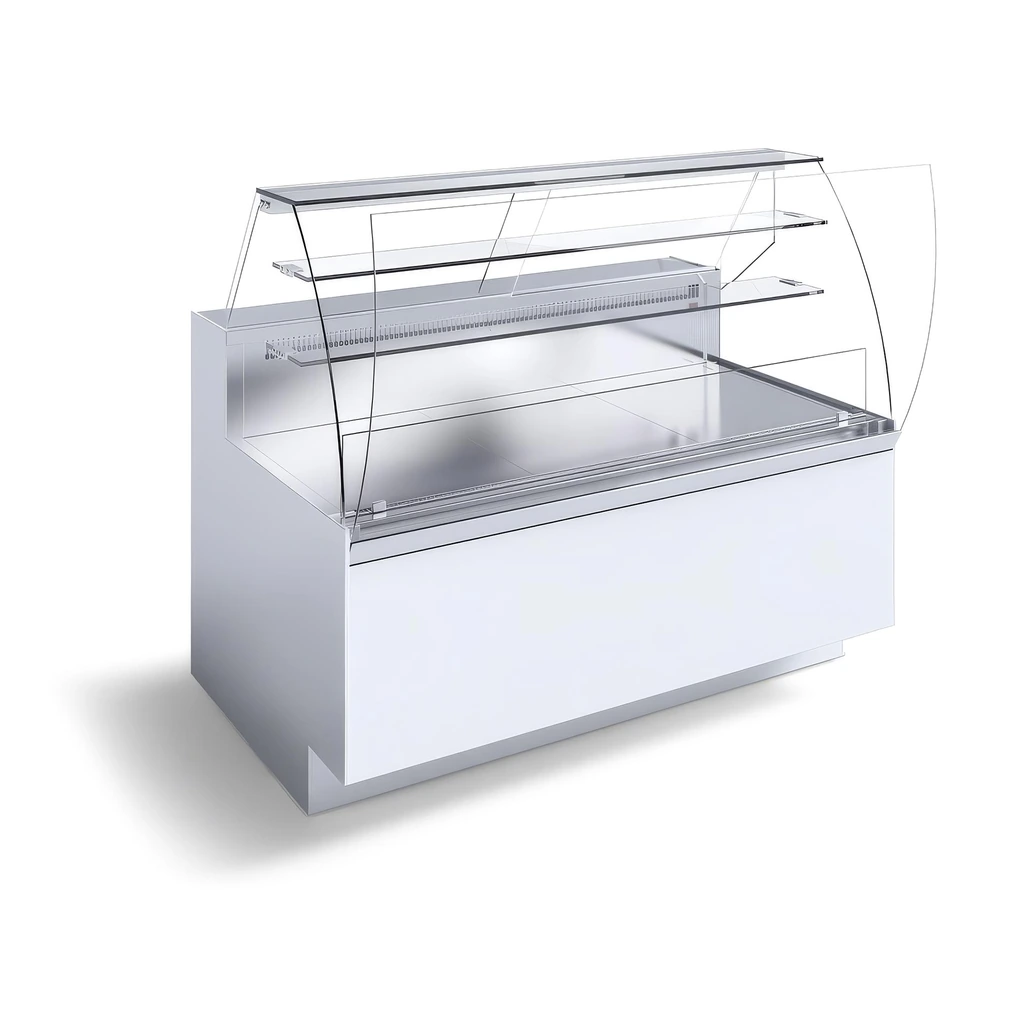

Curved, tempered front glass with lift-down opening and hinged on "silver" anodized aluminium profiles | tempered side glasses with warm serigraphy | N°2 fixed glass shelves | plexiglass sliding doors | aluminum LED light fixture.

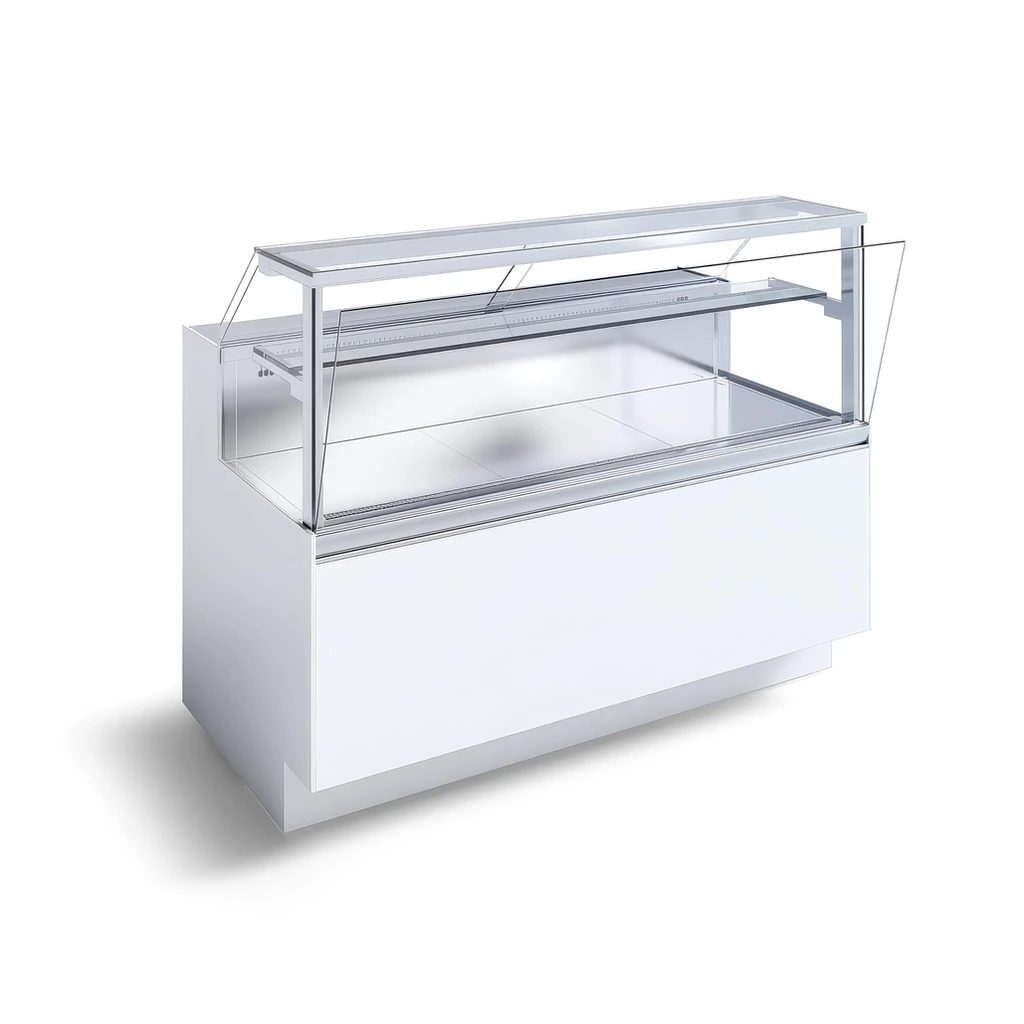

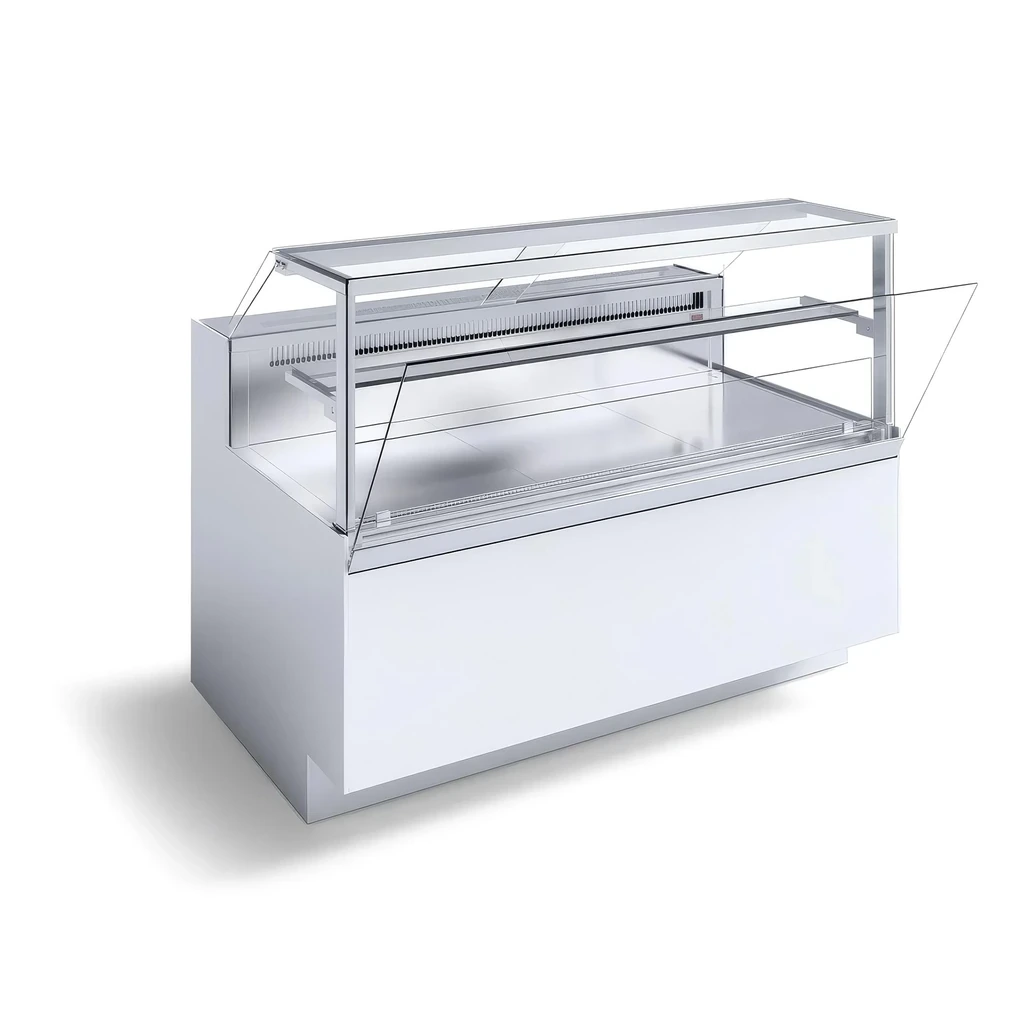

Front glass hinged on brilliant aluminum profile with downward opening | heated glass sides | side profiles in brilliant aluminum | n.2 intermediate glass shelves | bright aluminum LED light fixture on each tier | glass top | PETG easy sliding door system | anti-fog front air baffle.

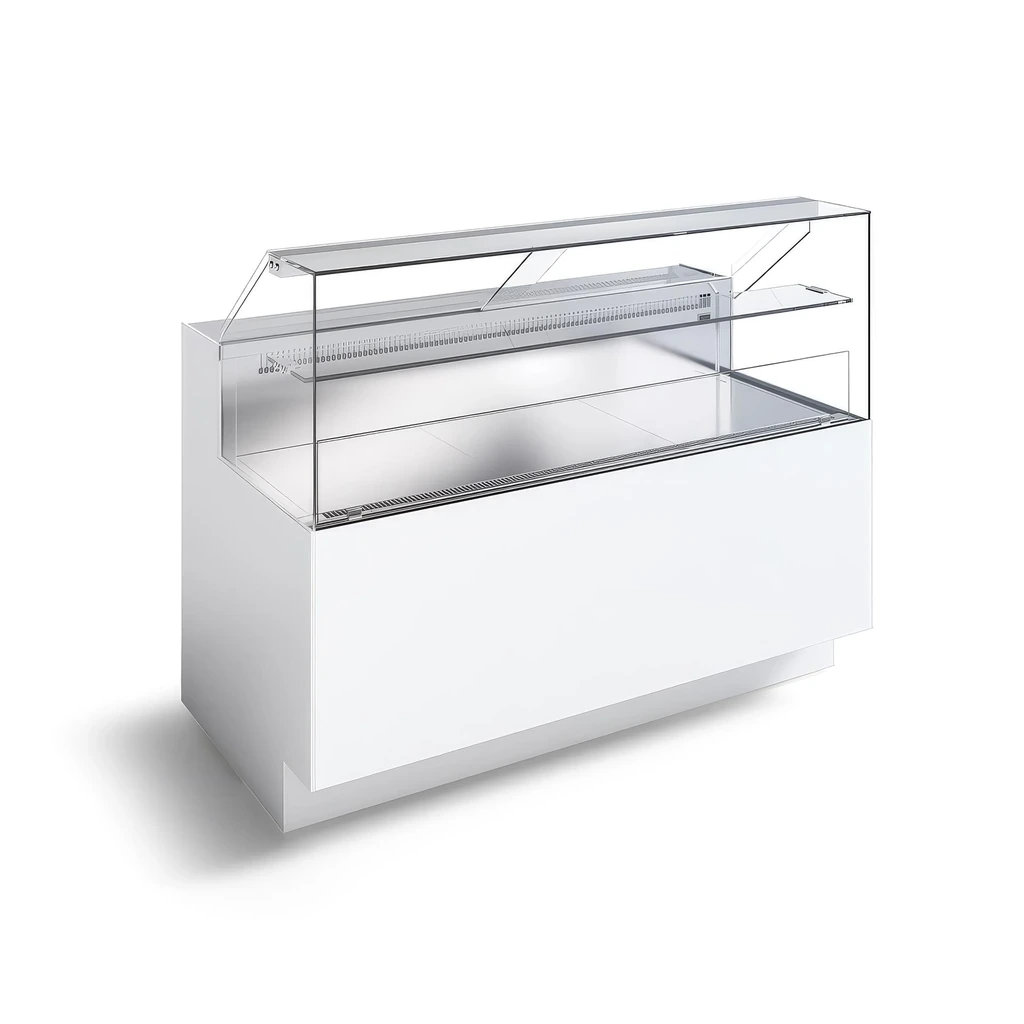

UV glued glass | heated glass sides | bright aluminum LED light fixture | N.01/02 fixed glass shelves | PETG easy sliding doors system | anti-fog front air baffle.
Glass structure with mechanical fastening | heated glass sides | bright aluminum LED light fixture | N.01/02 fixed glass shelves | PETG easy sliding door system | anti-fog front air baffle.
Upper glass structure screwed front glass on aluminum blocks | heated glass sides | the top glass can be lifted up | upper glass structure, thickness 10mm | N.01/02 fixed glass shelves | LED lighting canopy in brilliant aluminum | plexiglas sliding doors.
UV glued glass downward opening hinged on bright aluminum profile | side glasses with anti-fog treatment | bright aluminum LED light fixture | fixed glass shelf | PETG easy sliding doors system | anti-fog front air baffle.
Front glass hinged on brilliant aluminum profile with downward opening | heated glass sides | side profiles in brilliant aluminum | N.01/02 intermediate glass shelves | bright aluminum LED light fixture on each tier | glass top | PETG easy sliding door system | anti-fog front air baffle.
The 900/750 series display cases can be supplied with HPL or painted paneling upon request.
The 900/750 series showcases can also be supplied in a semi-finished version, when the coating is by the customer.
The 900/750 series display cases can also be supplied in a Drop-in version that is embedded in the worktop
The glass shelves are fixed on two chrome-plated brackets.
Refrigerated display cases have glass anti-condensation baffle.
Hot bain marie display cases are available for both the 900 Series and 750 Series.
