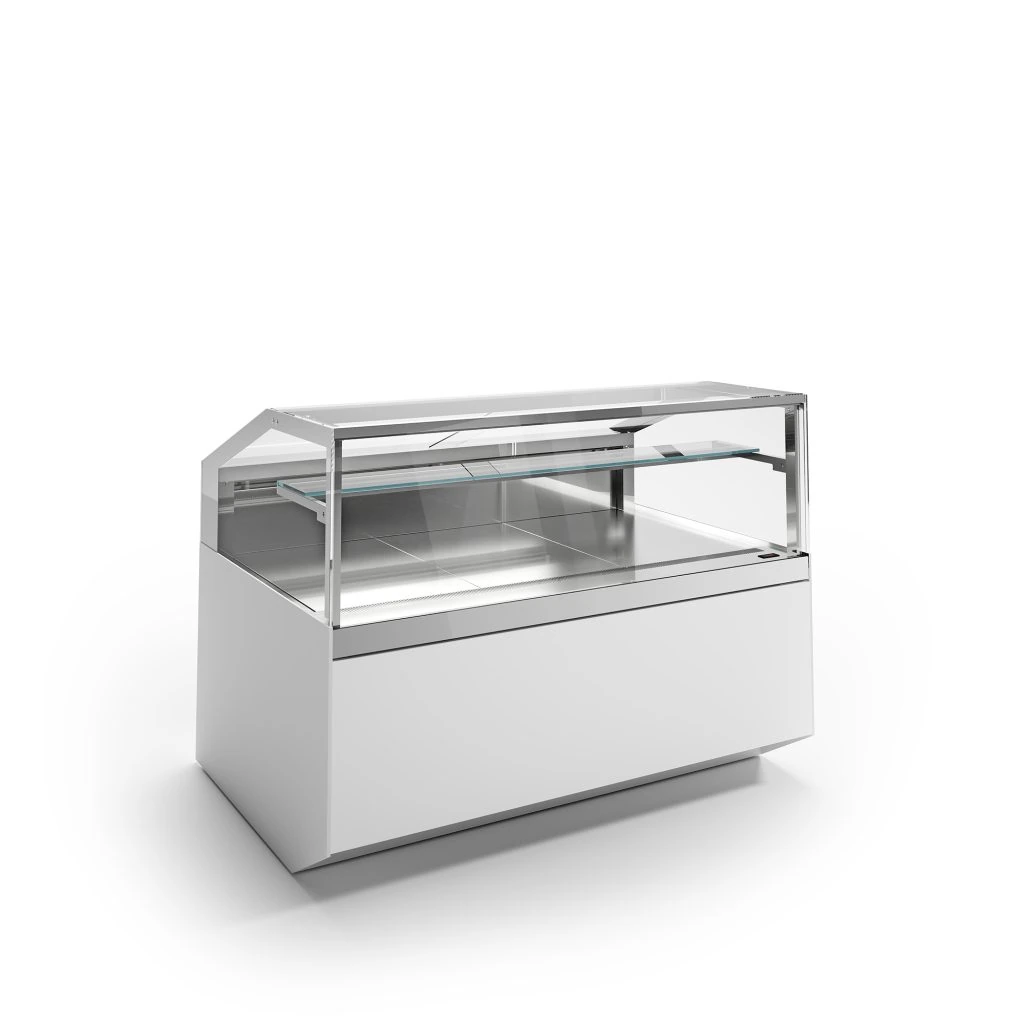

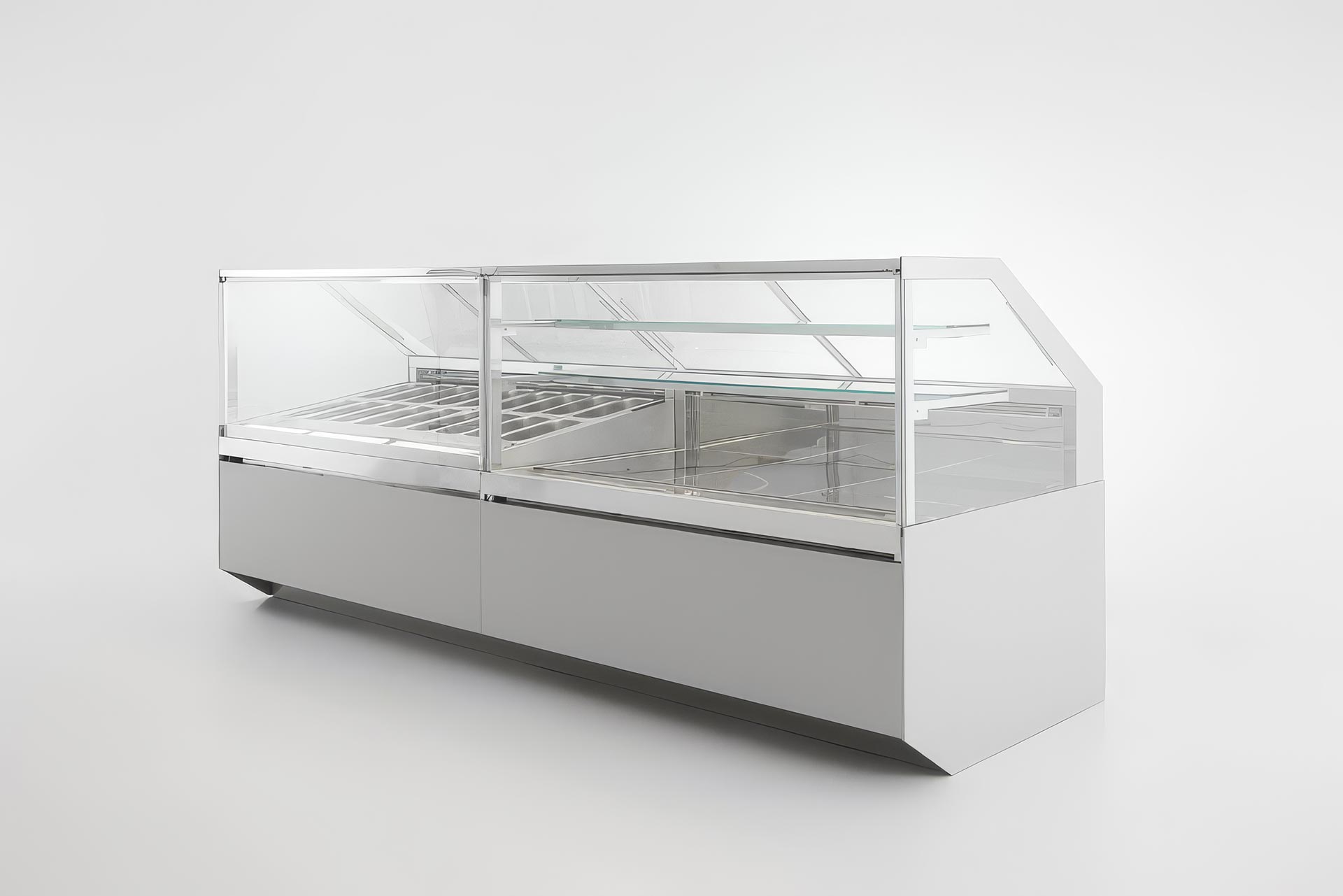

The Vertigo series consists of three linear modules (1110, 1610, and 2106 mm) with 8-mm glass sides, and two 30° corner modules, which can be perfectly channeled thanks to the mechanical clamping of the pre-molded sides and front uprights.
The tanks are monolithic, steel-clad and insulated with environmentally friendly polyurethane, while the display area is in polished stainless steel. The showcase has heated front glass with patented anti-fog system, and the front glass can be opened downward. The sides are stratified and heated with mirror screen printing. The polished aluminum ceiling light includes an integrated Plexiglass sliding track with airtight closure. Uprights, shelf supports and profiles are in polished aluminum, with glass shelves. Lighting is provided by 3000°K diffused LED micro-lamps. Vertigo display cases are designed for excellent performance. Ice cream display cases have semi-hermetic motors with ultra-fast reverse cycle programmed defrosts. Pastry display cabinets offer a wide range of versions (ventilated refrigerated, ventilated refrigerated with drawers, static, fully refrigerated), designed to meet all the needs of pastry chefs and maintain a constant temperature in refrigerated areas.
Design Highlights
Elegant and modern design for superior refrigeration solutions.
All visible components can be customized using the Ciam's Materials range, which includes a wide selection of stoneware, acrylics, quartz compounds, natural stones, epoxy powder-coated sheets, sheets with electroplating treatment, brass, and wood.
The Vertigo series consists of three linear modules (1110, 1610 and 2106 mm) with 8-mm glass sides, and two 30° corner modules, which can be perfectly channeled thanks to the mechanical clamping of the pre-molded sides and front uprights.
Dimensions
Length: 1110, 1610, 2106mm
Depth: 1127mm
Height: 1200mm
Vertigo display cases can be perfectly channeled in aesthetic continuity regardless of the type of system (ice cream, pastry, deli...).
Vertigo showcases can be supplied with HPL cladding or lacquered paneling upon request.
Vertigo showcases can also be supplied in an uncladded version, in this case the cladding is provided by the customer.
Intermediate glass shelves, where planned, have integrated micro-lighting. Both height and depth adjustments are made by means of low-voltage electrified racks, which avoid the use of electric cables.
Heated single glass front that opens downwards | Heated laminated glass side panels with mirrored screen printing | n.01 intermediate shelf complete with lighting / n.02 intermediate shelves complete with lighting, of which the lower one is refrigerated in positive temperature models / n.03 intermediate shelves complete with lighting, of which the lower one is refrigerated in positive temperature models | Bright aluminum profiles | 3000°K diffused LED lighting | Operator compartment with easy-sliding PETG sliding doors
