Category Vertical showcases
Bellagio is an innovative refrigerated lamp consisting of a cylindrical trunk with curved glass chamber walls that slide upwards with a servo-assisted system.
The refrigeration is ventilated and located at the top, where the compressor and technical compartment are integrated. The lower plate is illuminated both on the inside and the outer bottom. Bellagio is available in table, floor, and ceiling-suspended versions and can be customized in the finish of the three curved panels
Applications
Design Highlights
Sleek and modern design for superb refrigeration solutions

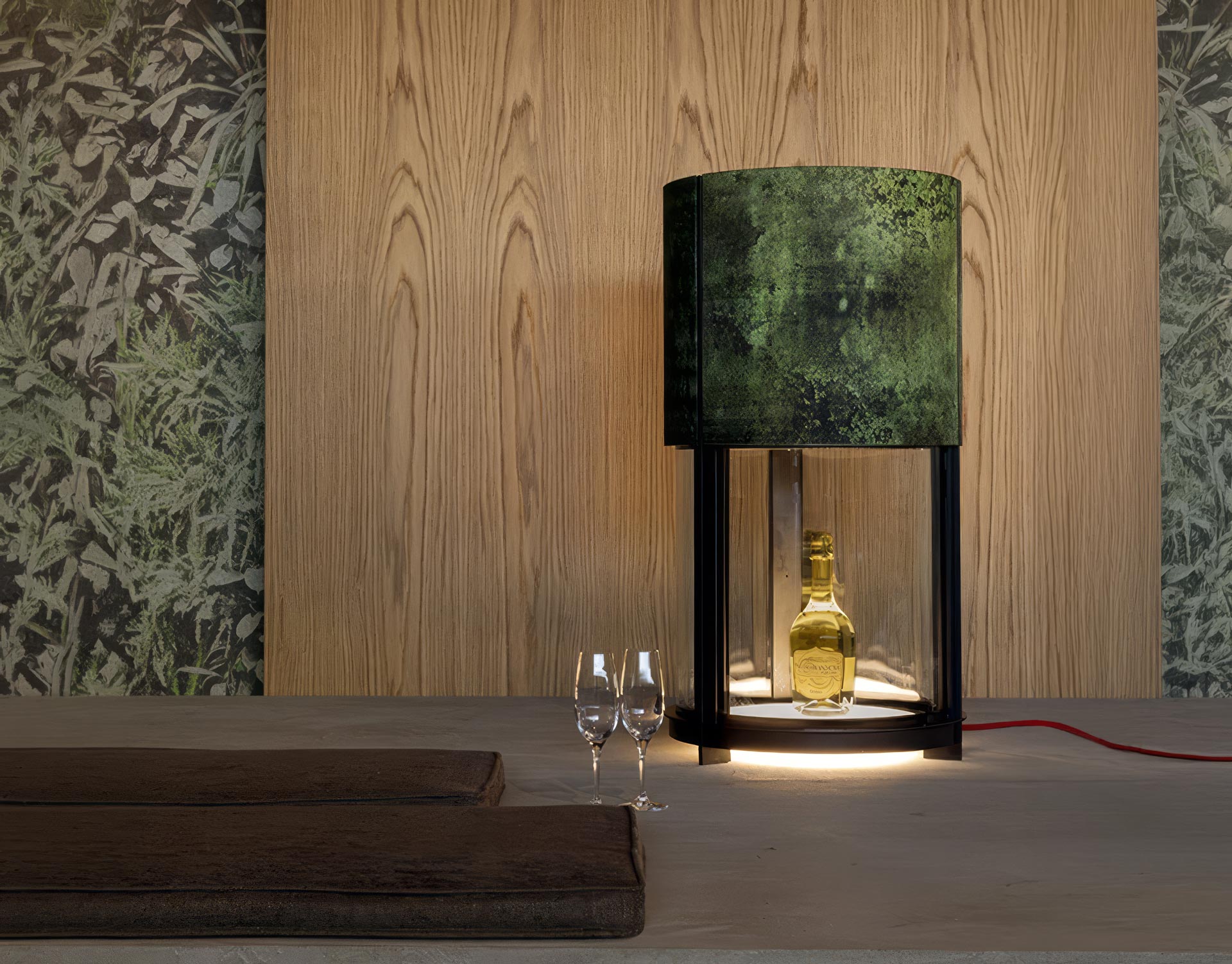

The Bellagio lamp is a freestanding module that operates simply by plugging it into a power outlet. Thanks to the condensate evaporating tray and automatic defrosting, it does not require a water connection for drainage.
The curved glass panels lift upwards through a servo-assisted system.

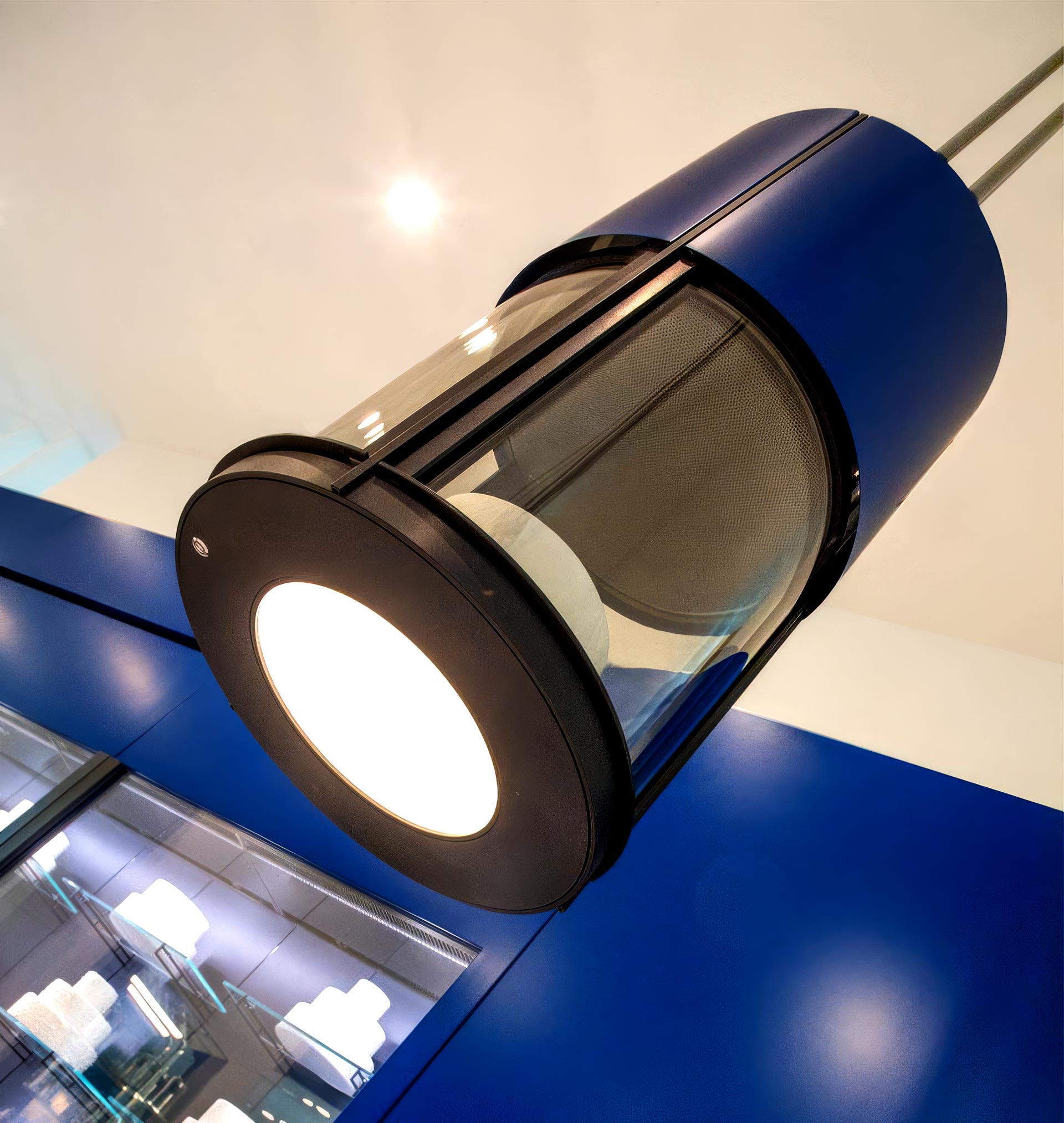

The Bellagio lamp provides dimmable lighting, easily adjustable via a button located under the lower panel, to create the perfect atmosphere at any moment.

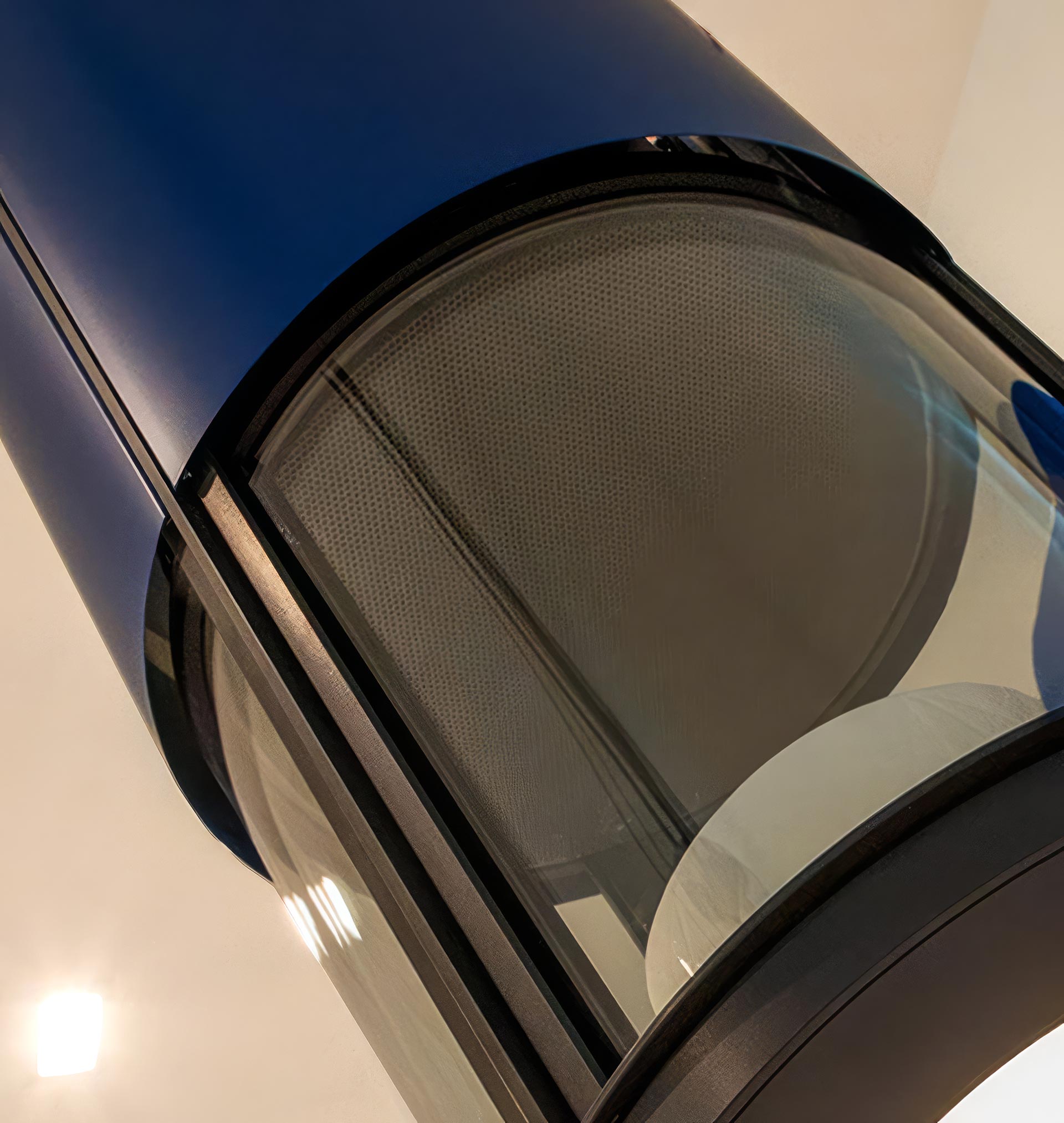

The ventilated refrigeration system with a micro-perforated ceiling ensures an even distribution of cold air throughout the entire display area.
Dimensions
Height: 440mm
Depth: 440mm
Width: 840, 2015mm
The Bellagio lamp offers extensive customization options, allowing you to choose the finish of the three curved panels. This feature enables the lamp to adapt to various styles and environments, making it unique and versatile.

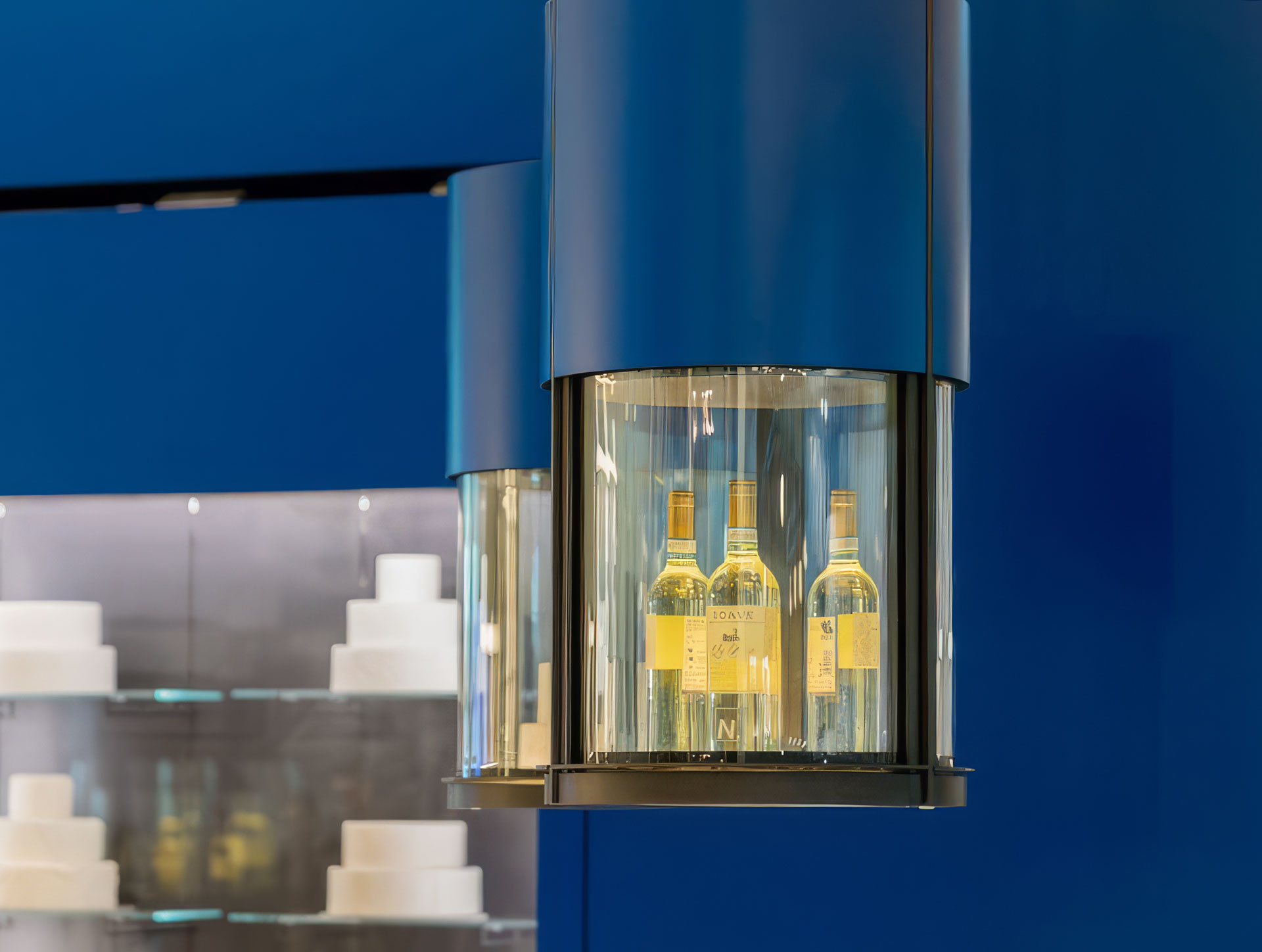

The ceiling version of the Bellagio lamp adds a touch of refinement from above, illuminating the environment with elegance and functionality.
The floor version of the Bellagio lamp combines elegance and functionality, making it a distinctive element for any environment.
The tabletop version of the Bellagio lamp offers practicality and style, ideal for enhancing any surface with a touch of elegance
High-efficiency ventilated refrigeration system
Programmed defrostings are ultra-rapid reverse cycle.
Refined integrated LED lighting enhances the appeal of displayed products with a standard 3000 K colour temperature. Optional 4000 K and 2700 K versions are available to suit a variety of display environments.
The showcases can be fitted with a condensate evaporation tray, where it is not possible to connect the drainage system to the venue's existing water outlet.
All internal condensing units are hermetic and use the eco-friendly gas R290 with low GWP (3) in compliance with the F-GAS Regulation Reg. 2024/573.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic
Refrigerant gas
R290 (UC int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+10°C / +6°C
Lighting
3000°K
Power supply
230 V / 1 ph / 50 Hz
Energy class
N.D.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Electrical
Refrigerant gas
R455a
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+2°C / +8°C
Lighting
3000°K
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
D / E
