The Grab&Go R290 line of plug-in refrigerated cabinets is designed to meet the growing market need for plug-in refrigerated equipment for both positive and negative temperatures, using the environmentally friendly gas R290.
With this innovative range, CIAM offers sustainable and efficient solutions for the display and storage of refrigerated products while meeting ecological requirements through the use of an environmentally friendly refrigerant.
Design Highlights
Elegant and modern design for superior refrigeration solutions.
Upon request, the interior, exterior sheets and glass screen printing can be customized using any RAL colors of your choice.

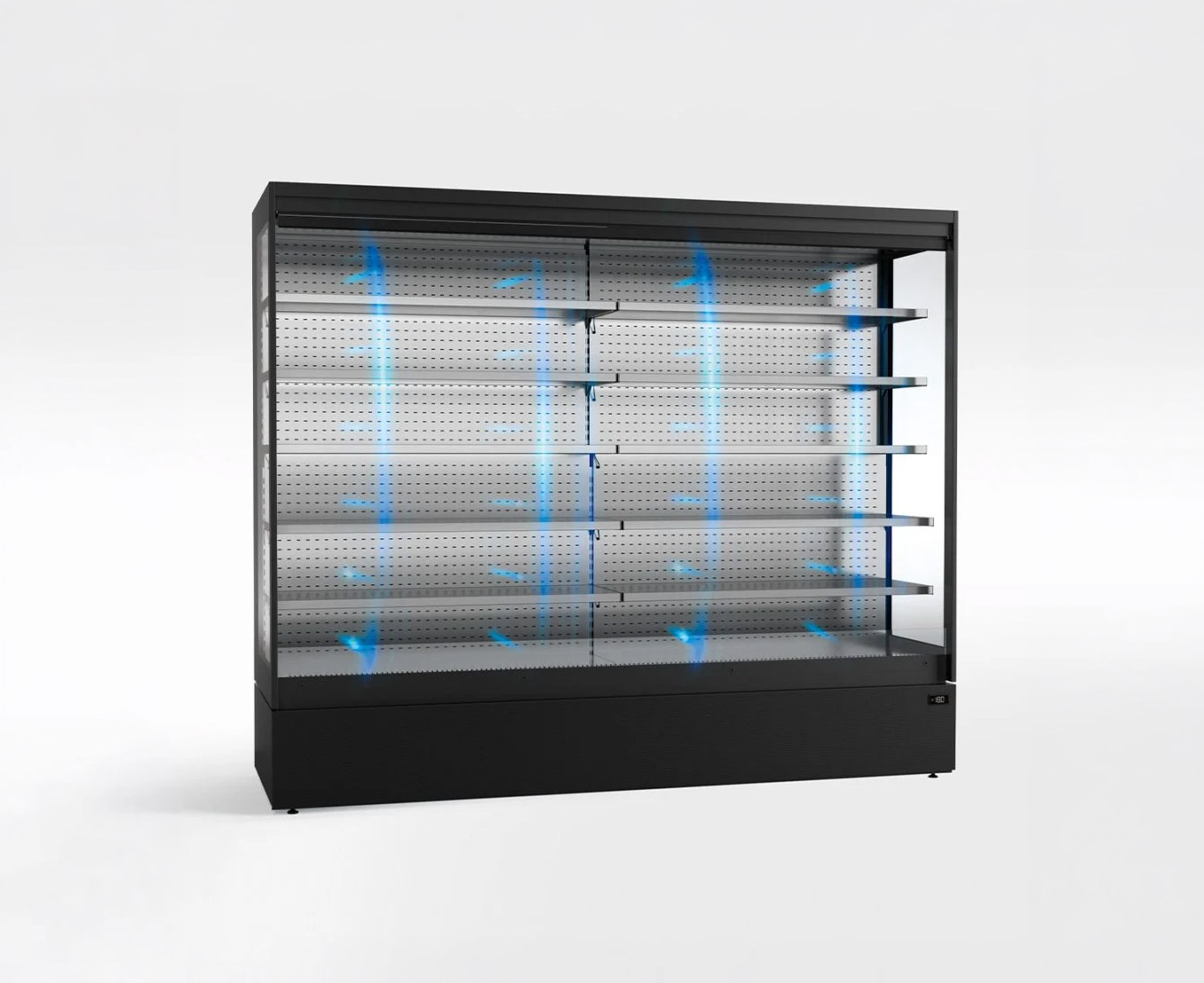

The new refrigeration design with a wall-mounted ventilated system enabled an increase in the volume of the refrigerated compartment by allowing greater product display and including the internal condensing unit in a technical compartment with the minimum height dimension.
Dimensions
Lengths: 700, 1400, 2100mm
Depth: 790mm
Height: 2050mm

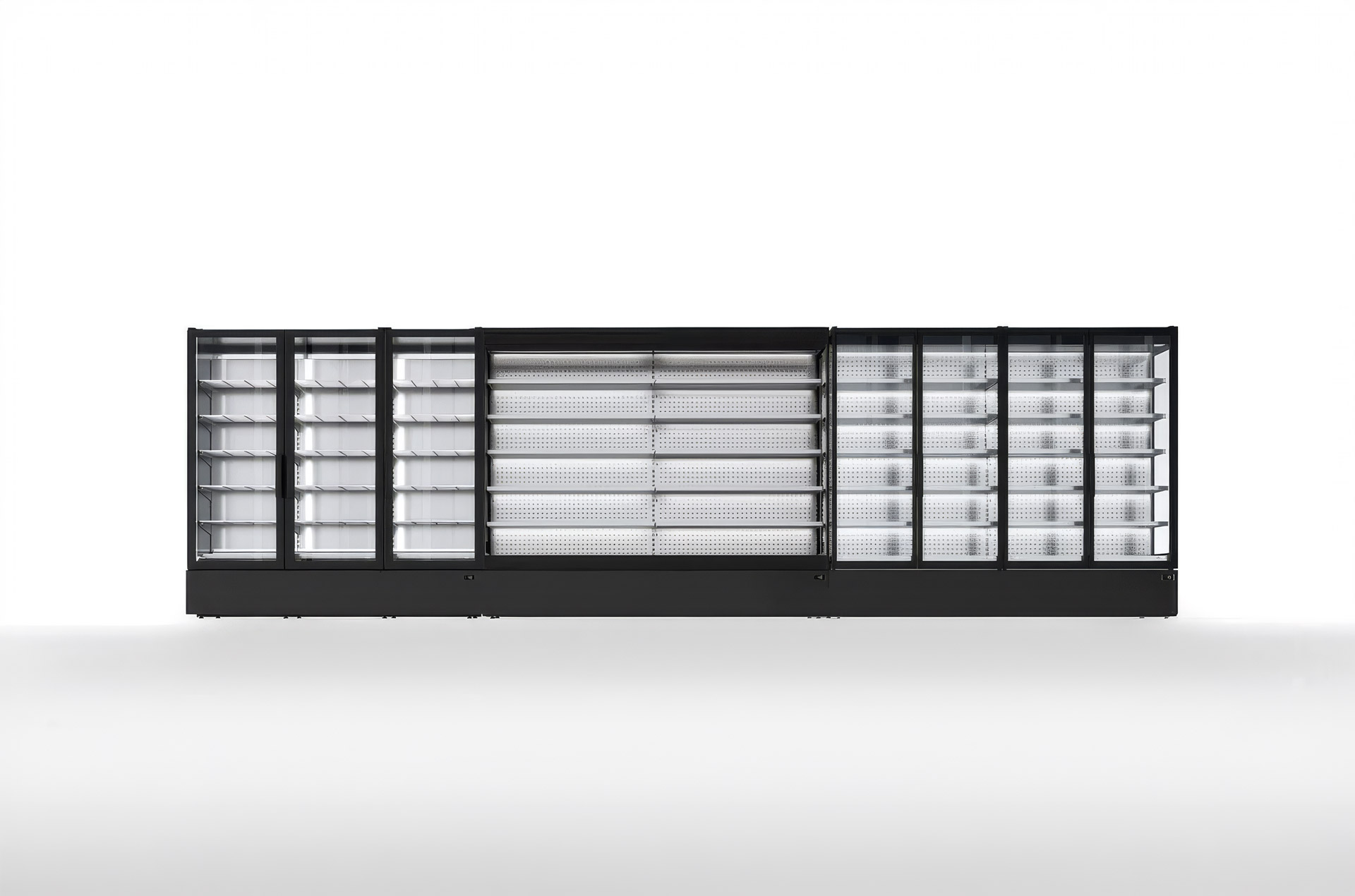

Refrigerated cabinets can be channelled in aesthetic continuity without an intermediate side, while all models in the range can be placed sequentially next to each other as they share the same depth, height, and technical compartment dimensions.

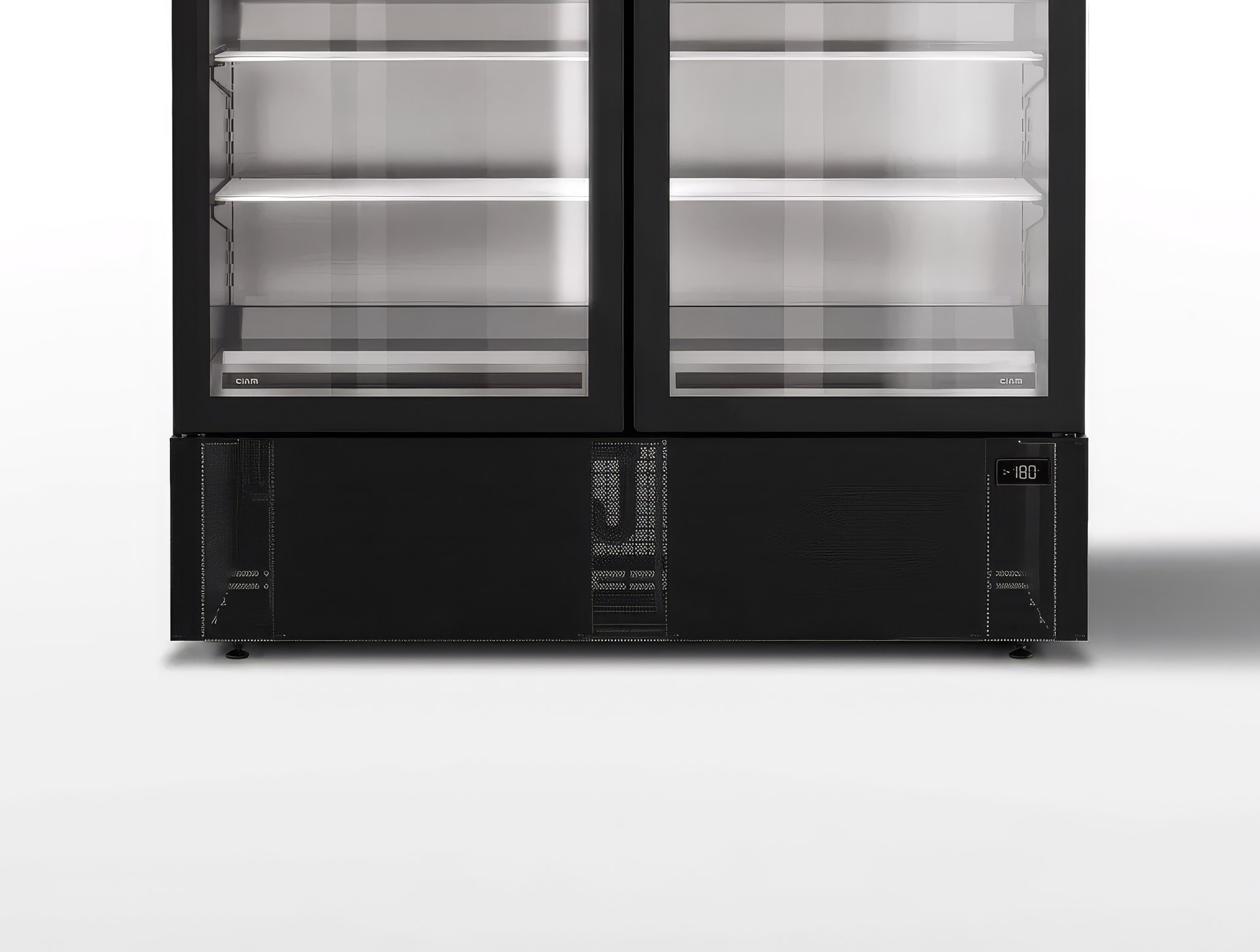

The technical compartment features the use of an elegant micro-perforated template that ensures proper air intake to the condensing unit
It is possible to request solid sides instead of panoramic ones for refrigerated models, in which case the thickness is 30mm and the standard finish is stainless steel for the inside and RAL 7021 for the outside surface. Freezer cabinets, on the other hand, can only be supplied with solid sides.

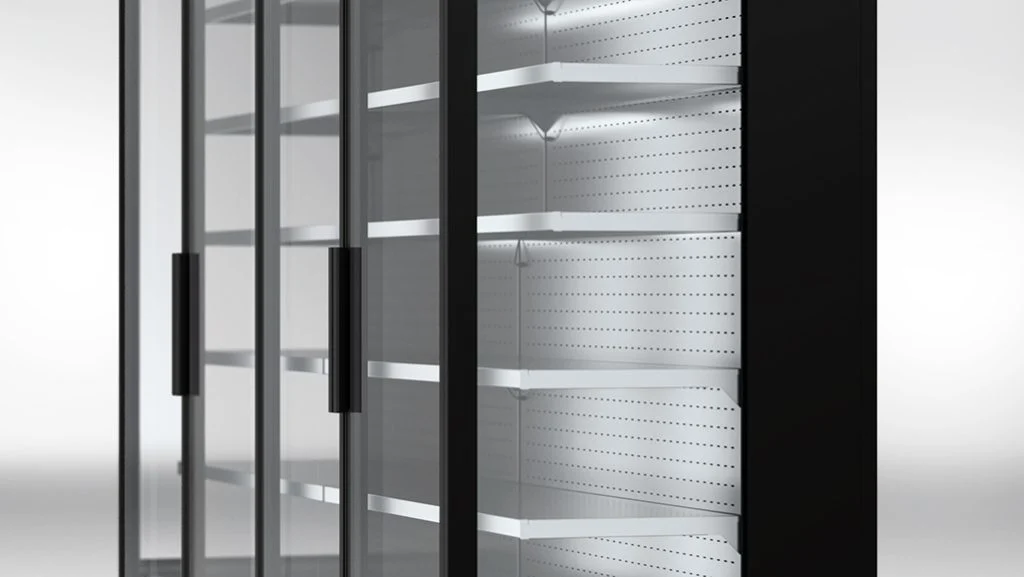

Grab&Go refrigerated cabinets have double-pane glass panoramic sides with RAL7021 screen printing as standard. Upon request, a RAL color of your choice can be applied.

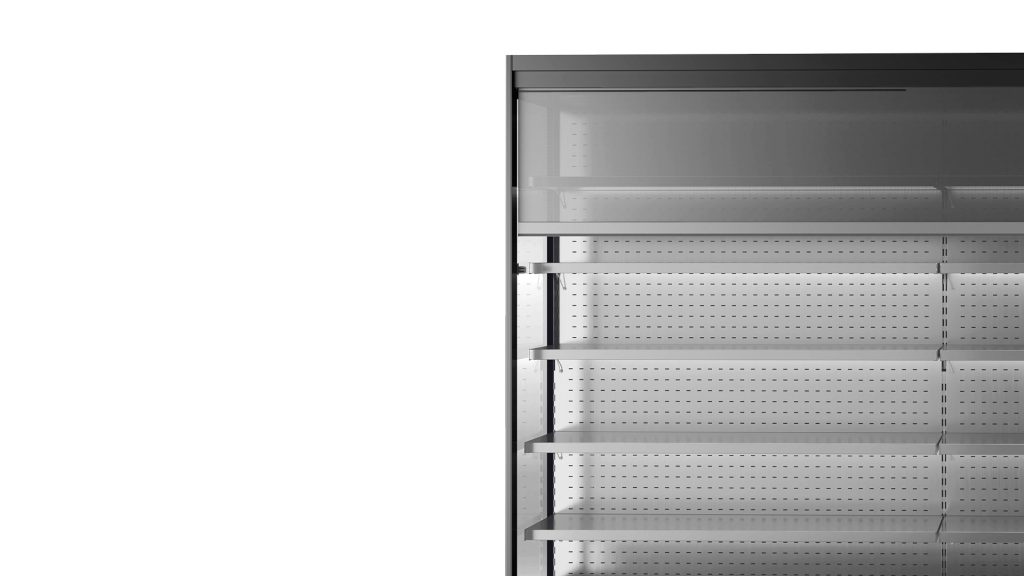

Refrigerated open cabinets are equipped with a roller blind in micro-fabric, magnetic hooking and glass baffle

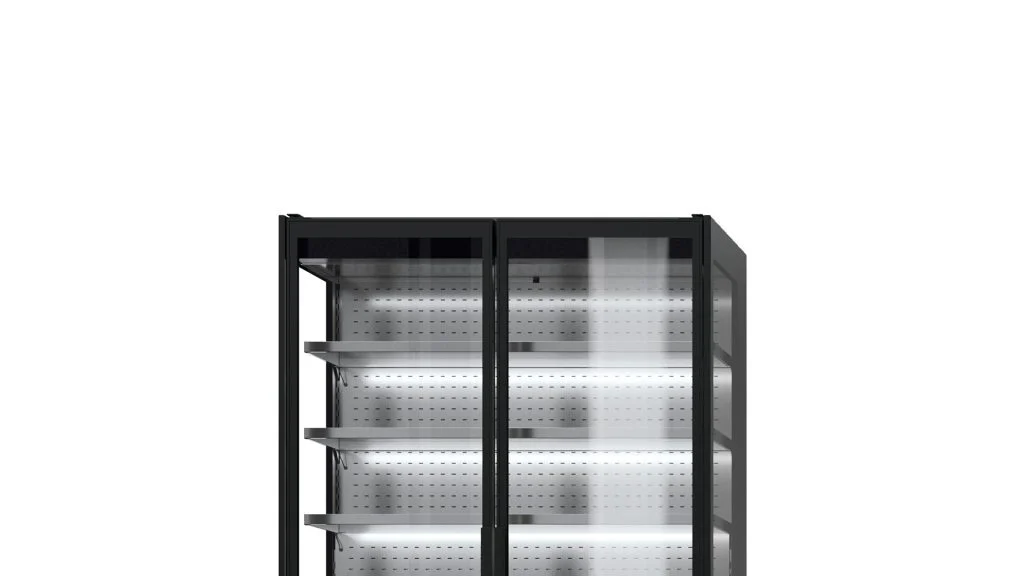

Refrigerated cabinets can be supplied with double pane Eco-type doors with standard RAL 7021 screen printing. This set-up provides higher energy savings compared to the Open version
The shelves available for this family of cabinets differ depending on refrigeration type. The standard shelf type for refrigerated models is the pressure-folded polished steel version; the shelves, as well as the interiors, can be customized with special epoxy powder coatings, framed glass or wood. The standard shelf type for freezer models is RAL 7036 stainless steel. Alternatively, it is possible to have pressure-folded stainless steel shelves with can be customized in colour.
