Circle series consists of refrigerated, heated and ambient modular display cases available in 3 depths and as many as 16 types of glass gantries.
The static glycol refrigeration is perfect for ensuring temperature uniformity for fast ice cream scooping for both upper and lower round tubs. The lids are available in the two versions Sopra Piano, placed on the top, and Filo Piano, perfectly flush with the worktop; the lid series has a wide range of customization of finishes and materials.
Applications
Design Highlights
Flexibility and technology for any business requirement

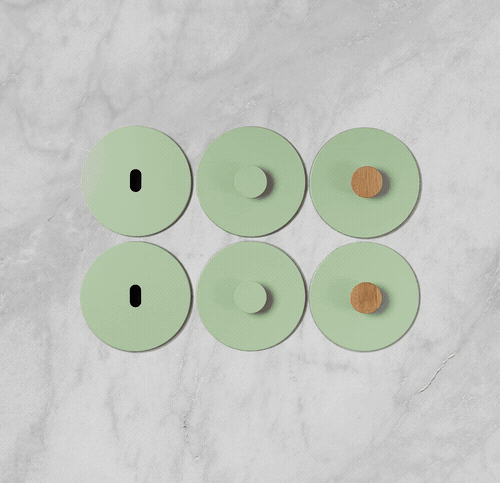

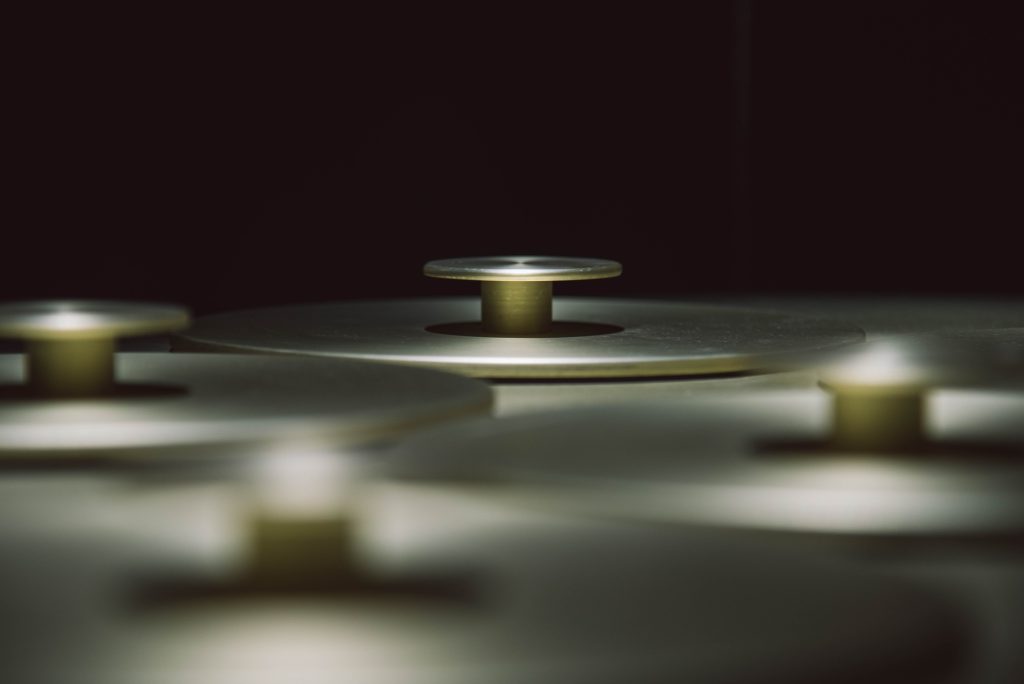

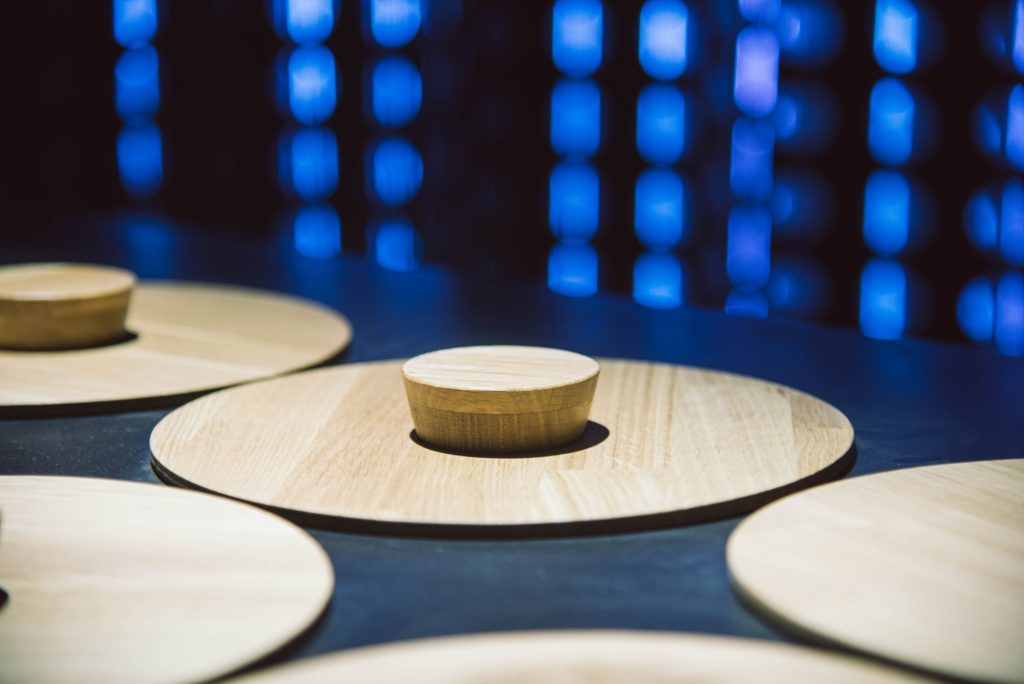

The Sopra Piano configuration features a disc resting on the worktop with three handle options (standard slot, knob type 1 or type 2) and a wide range of materials — satin or polished steel, powder-coated, galvanic treatment, acrylic, wood — to ensure maximum freedom of pairing with the venue's style.
I pozzetti Circle utilizzano carapine inox diam. 200mm H250mm (7Lt), quest’ultima sono alloggiate su contro carapine in acciaio inox con sistema di anti-rotazione su 4 punti. I pozzetti Circle possono essere forniti con e senza riserva di carapine. L’anello superiore è costituito da un innovativo collare plastico a filo piano e perfettamente complanare con le pareti interni della contro-carapina.

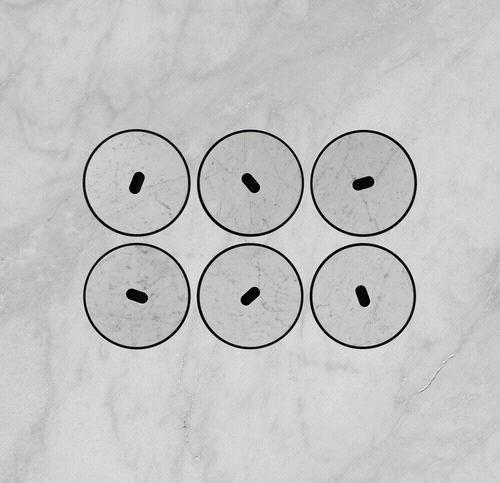

The Filo Piano configuration features a disc flush-mounted into the worktop with three handle options (standard slot, knob type 1 or type 2) and a wide range of materials — satin or polished steel, powder-coated, galvanic treatment, acrylic, wood — to ensure maximum freedom of pairing with the venue's style.
The plinth is in painted steel, lowered to house the condensing unit.

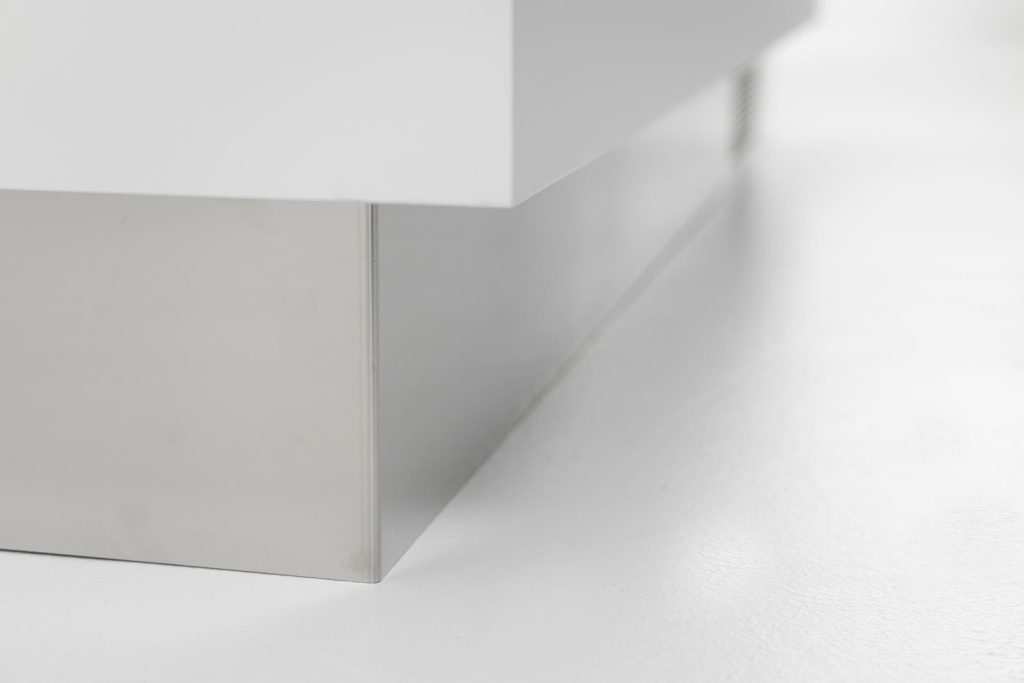

Upon request, a stainless-steel casing can be applied to finish the end of the horizontal base profiles.
Upon request, it is possible to apply wheels instead of feet.
Dimensions
Lengths: 400(2), 650(4), 900(6), 1150(8), 1400(10), 1650(12)mm
Depth: 660mm
Height: 931mm

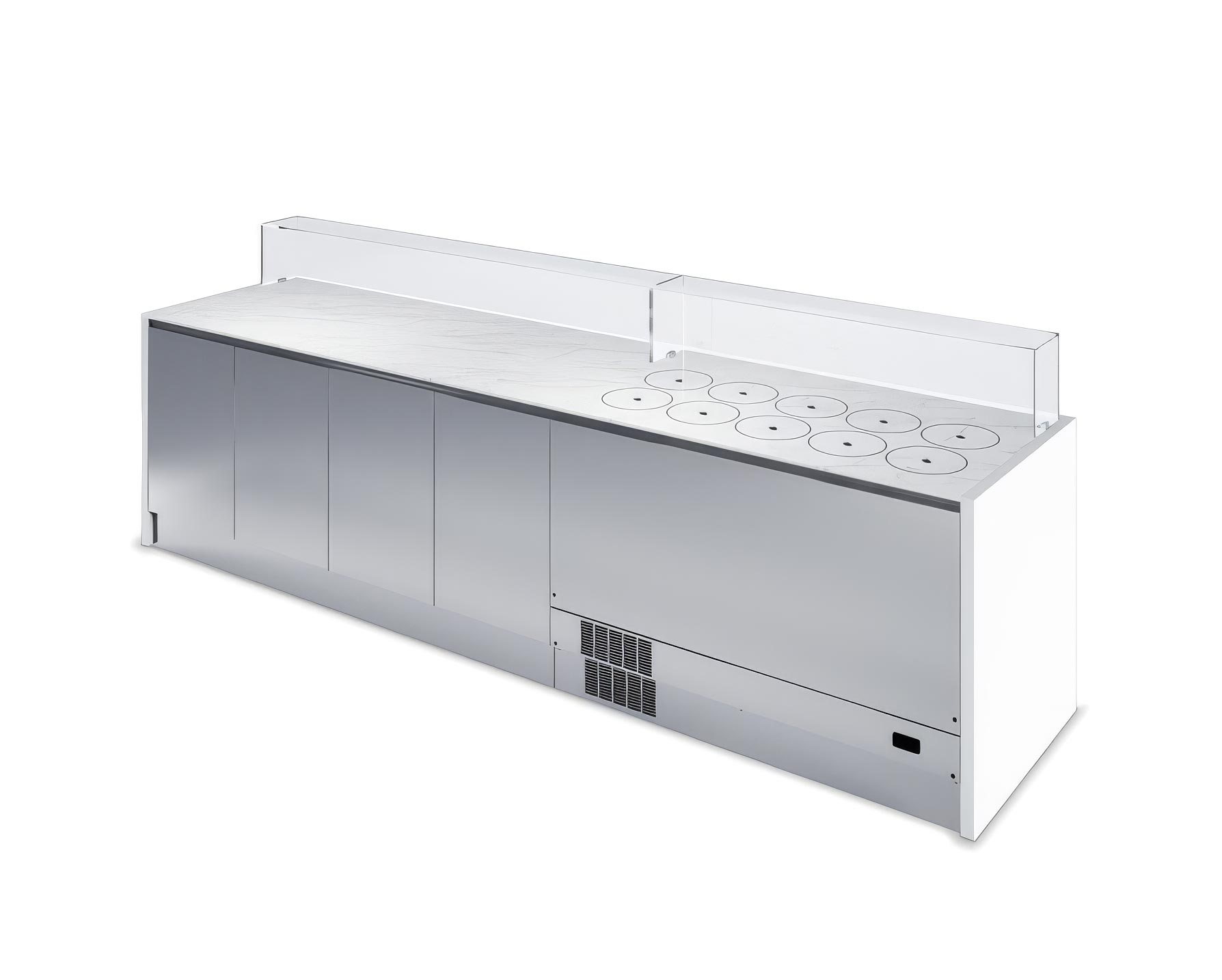

The banks pozzetto gelato possono essere abbinati alla linea dei Counters Compact di Ciam.
The Banks pozzetto gelato possono essere abbinati alla linea dei Counters Standard di Ciam.
Upon request, the pozzetti counter can be supplied with a glass case with, or without lighting.

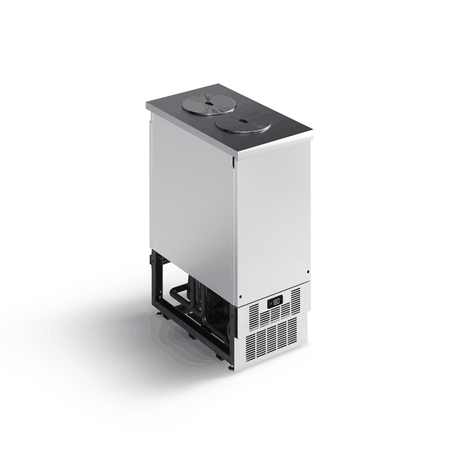

The Pozzetto Gelato Circle counter series consists of 6 linear modules 2 - 4 - 6 - 8 - 10 - 12 round tubs, available in versions with and without storage.
