Horizontal showcases
The Mya family includes professional showcases for pastry and gelato applications.

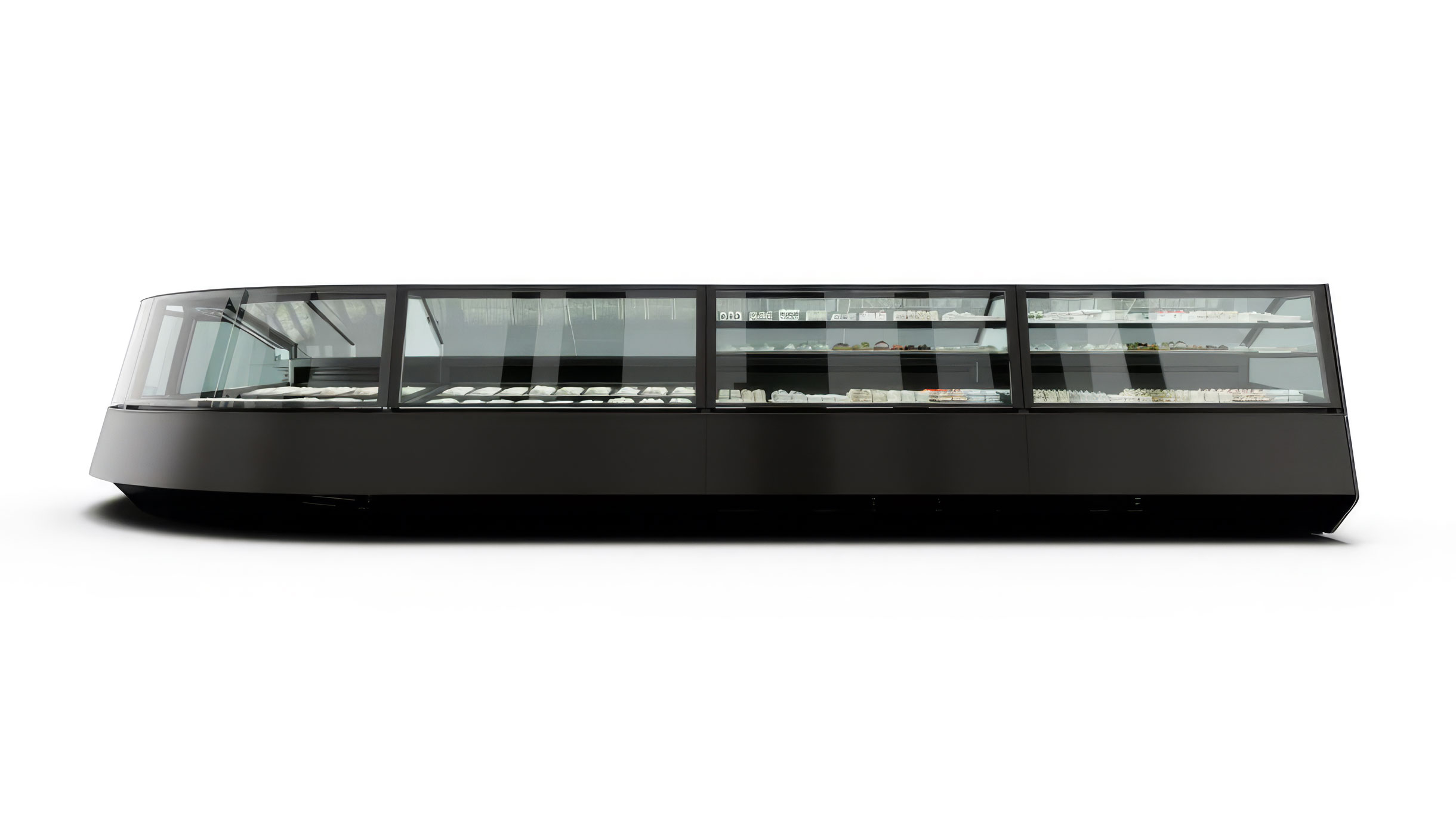

Mya showcases are characterized by wide, panoramic double-glazed glass tilted at 15°, available in two heights: H1350 and H1500. Modules are available in linear lengths of 1150 mm, 1650 mm, and 2150 mm (plus side panels), as well as a 45° corner module. The showcases are fully channelable thanks to mechanical arrangements ensuring optimal coupling. The tanks are insulated with eco-friendly polyurethane foam and lined with stainless steel. Gelato models feature a lowered display deck allowing for greater load capacity, while in the pastry version, the wide display tray extends over the entire tank surface, providing increased display capacity. Perfect product lighting is guaranteed by 3000K no-spot LED strips on each display shelf. Gelato showcases are equipped with hermetic motors using eco-friendly R290 gas, featuring ultra-fast reverse cycle programmed defrosting. Pastry showcases feature electric defrosting for versions with built-in motors, and hot gas defrosting for versions with remote motors. The range is completed by the Mya Plus version, featuring five fully refrigerated display levels (available in both positive and negative temperatures) with adjustable shelves on low-voltage electrified rack uprights.
Chocolate
Deli, Cheese, Meat & Fish
Gelato
Pastry
Applicazioni
Design Highlights
Elegant and modern design for superior refrigeration solutions.
The glass structure features a wide, panoramic, tilted double-glazed unit and is available in three heights: H1200, H1350, and H1500. The front glass opens upwards via a gas-strut assisted system. In the 45° corner showcase, the opening system is downward-folding. Profiles and uprights are in polished aluminum; custom finishes are available upon request. The standard screen-printing is mirror-finish, with custom colors available on request.

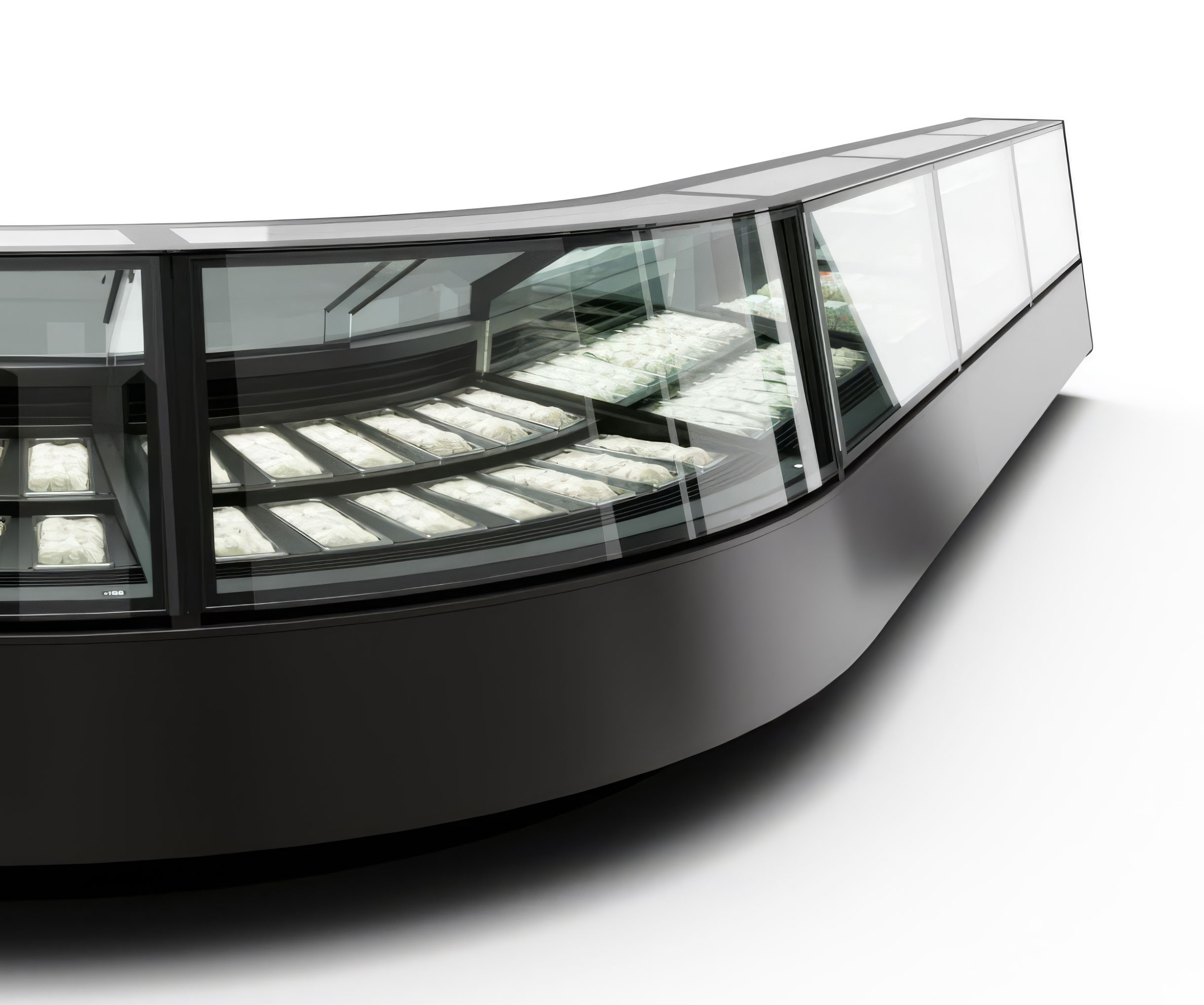

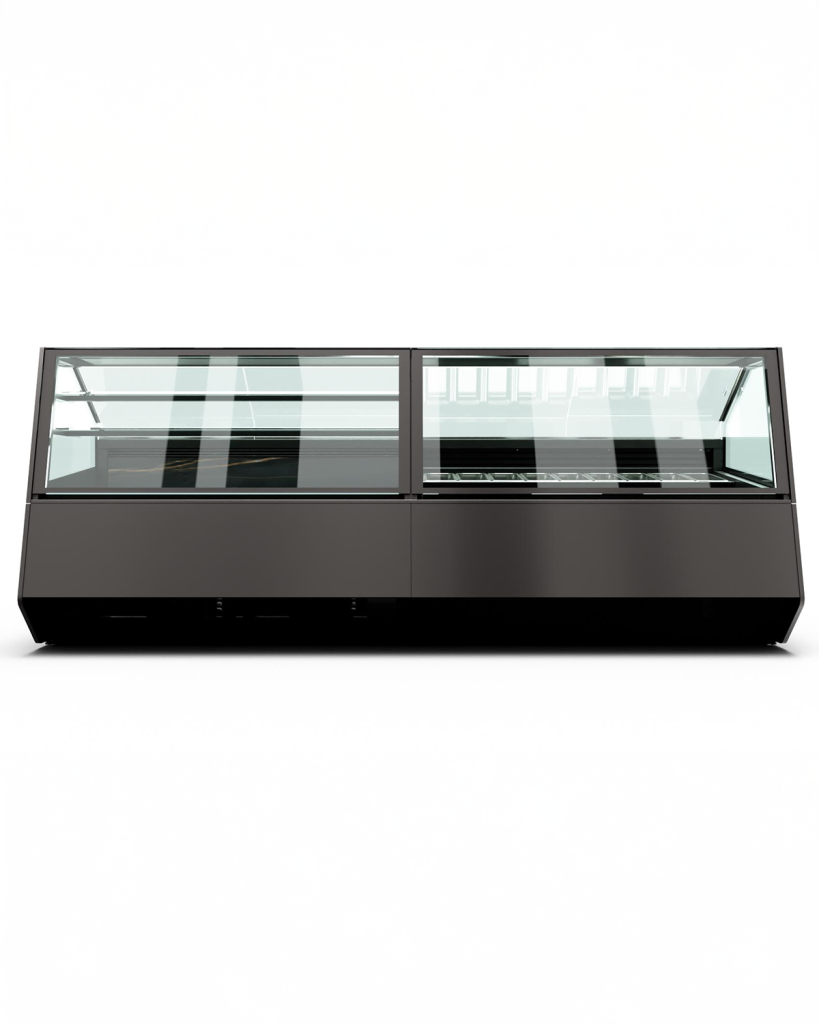

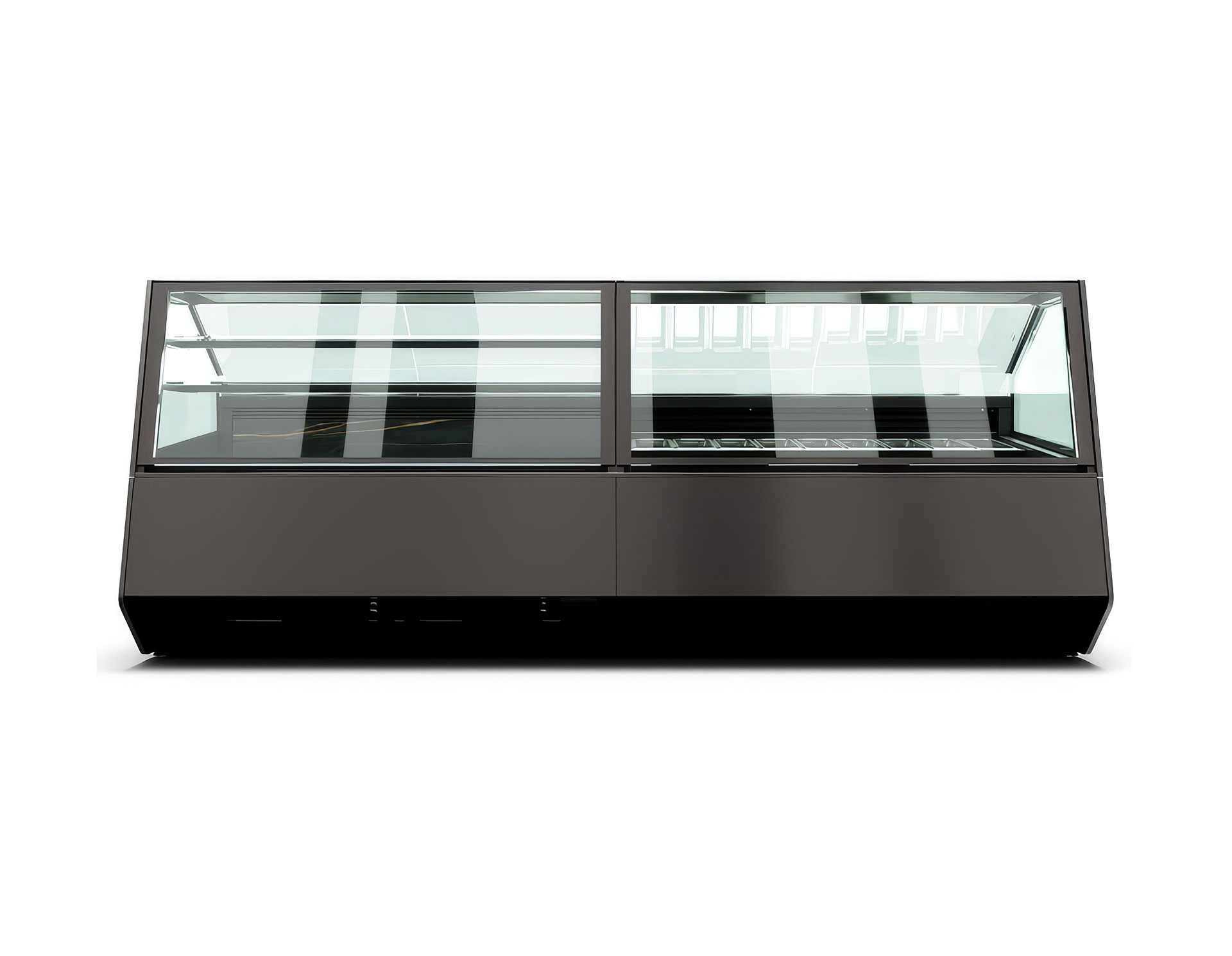

Mya showcases can be channeled for seamless aesthetic continuity, even between modules with different functions and temperatures.
Surface finishes, cladding, and glass screen-printing can be customized using CIAM's extensive range of materials, including porcelain stoneware, acrylics, quartz composites, natural stones, epoxy powder-coated sheet metal, galvanized sheet metal, brass, wood, and ceramic coatings.
By means of an electric actuator, the deck can be adjusted to two positions: flat or tilted. Additionally, the deck can be further raised, and internal components can be detached, allowing for thorough cleaning of the tank bottom.

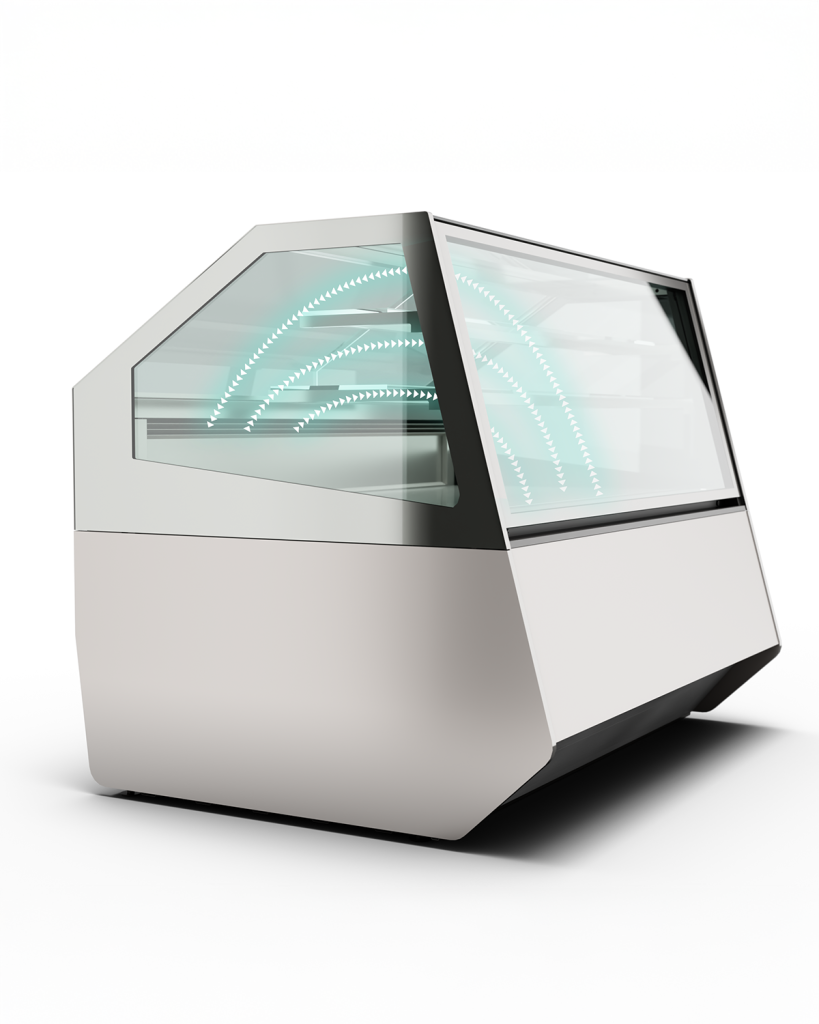

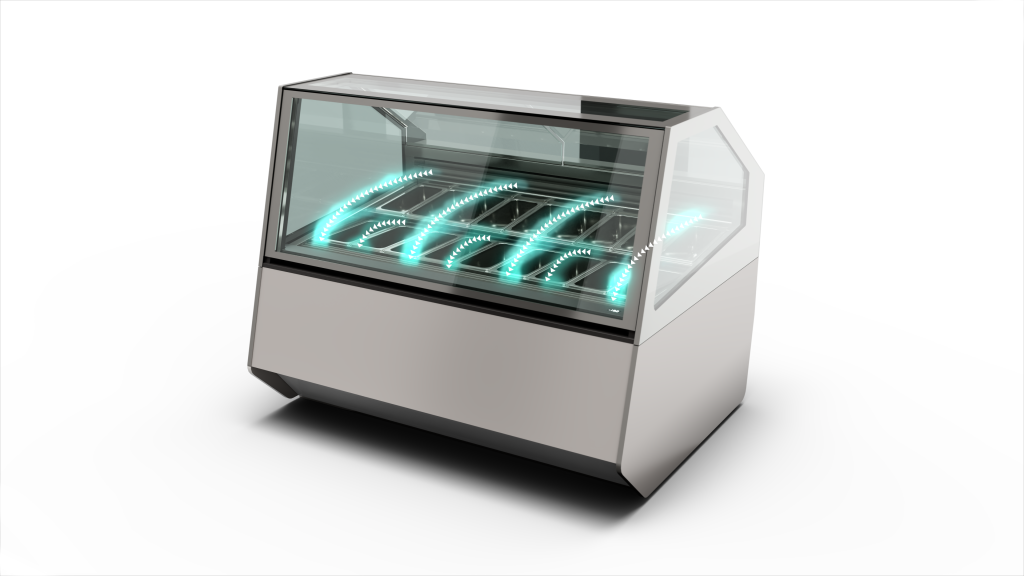

Gelato showcases are equipped with a dual-airflow refrigeration system, which ensures perfect temperature uniformity.
Pastry showcases are equipped with a selector switch that allows refrigeration to be set across various display levels, up to a fully refrigerated configuration.
Dimensioni

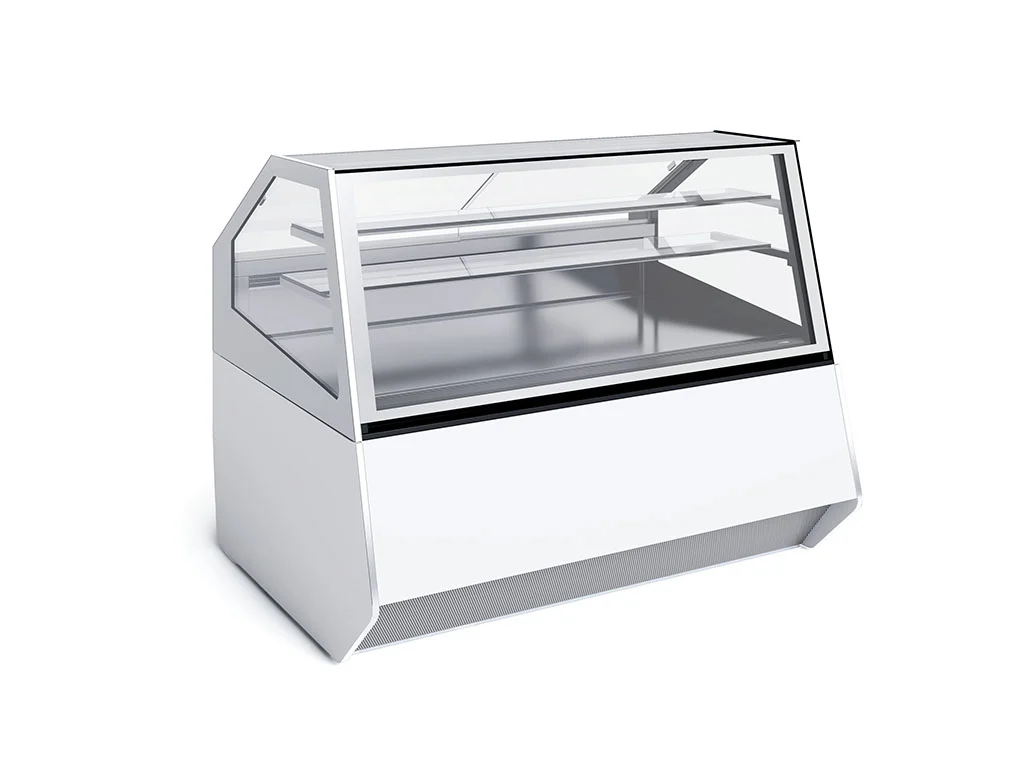

The Mya range is also available with customizable HDF paneling.

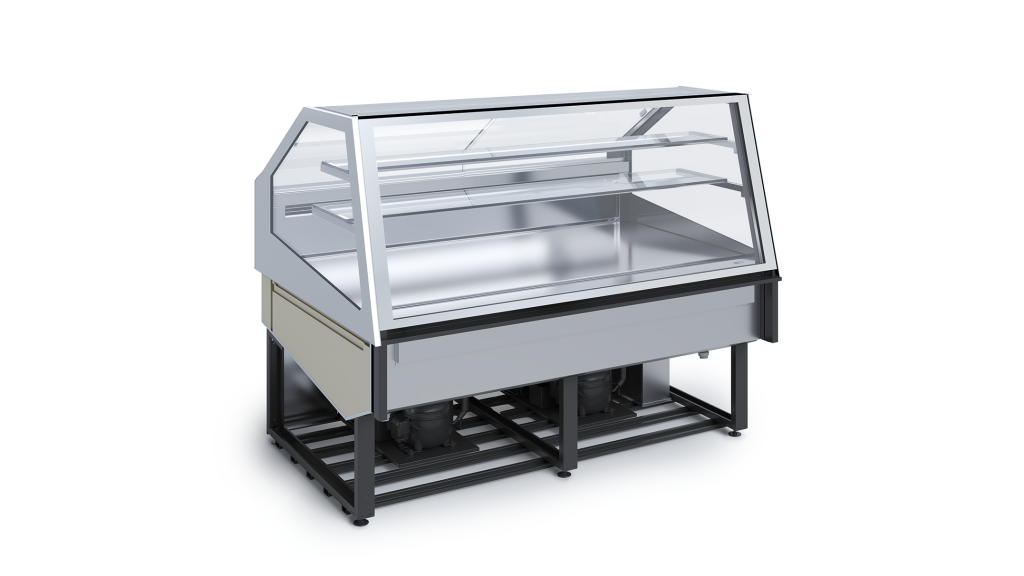

Mya showcases are also available as unfinished versions, intended for custom cladding by the customer

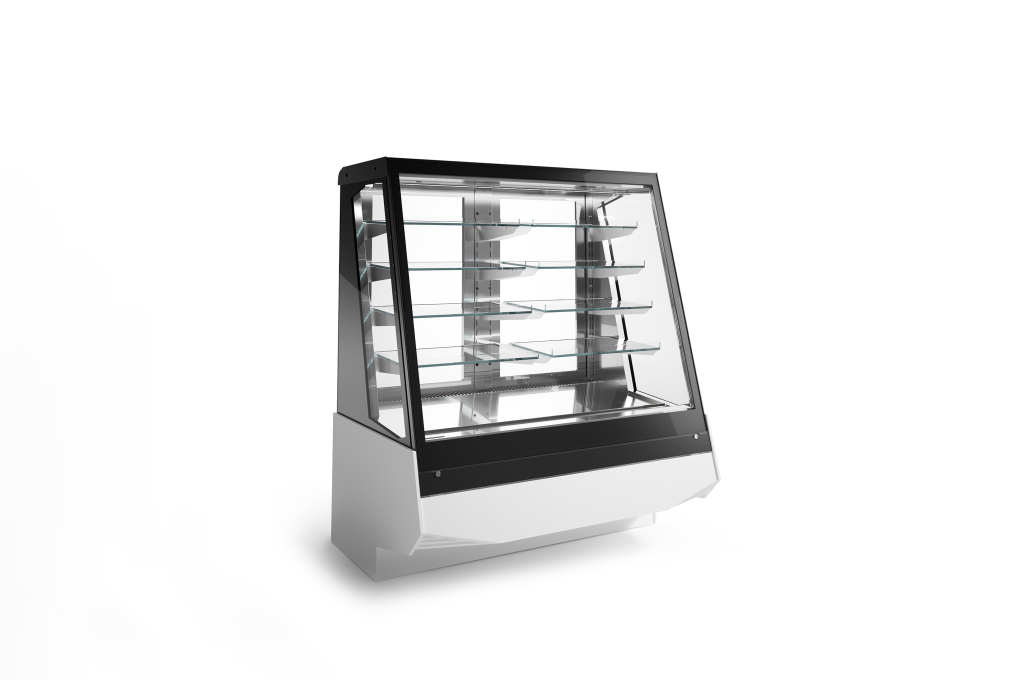

Mya Plus showcases feature full refrigeration across every display level and are perfectly modular in both H1350 and H1500 heights. The Mya Plus is available in both pastry (+5°C) and low-temperature (-18°C) versions.

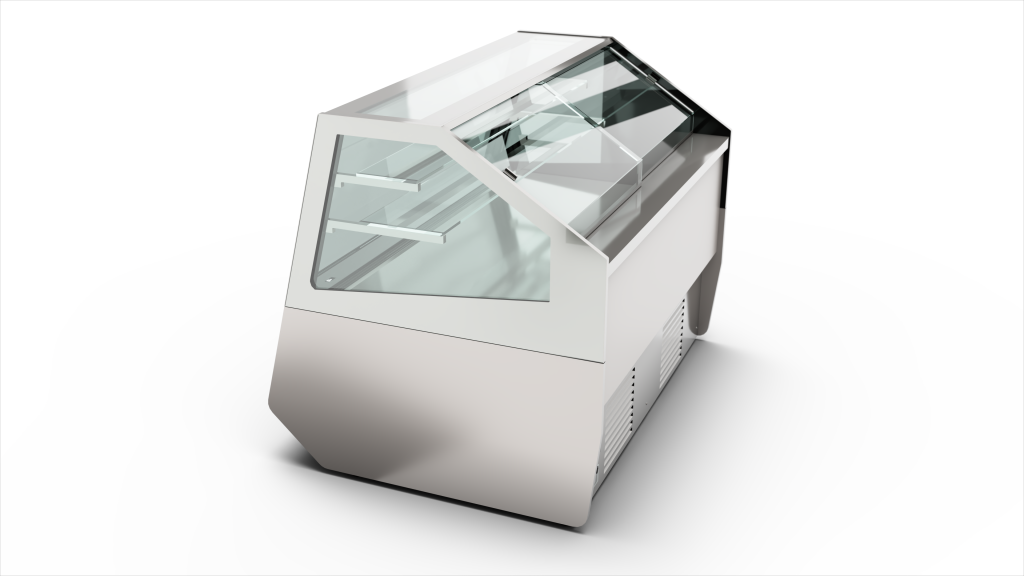

Access to the refrigerated compartment is through PETG sliding doors with perimeter gaskets. A microfabric roller blind can be inserted instead of the sliding doors upon request.

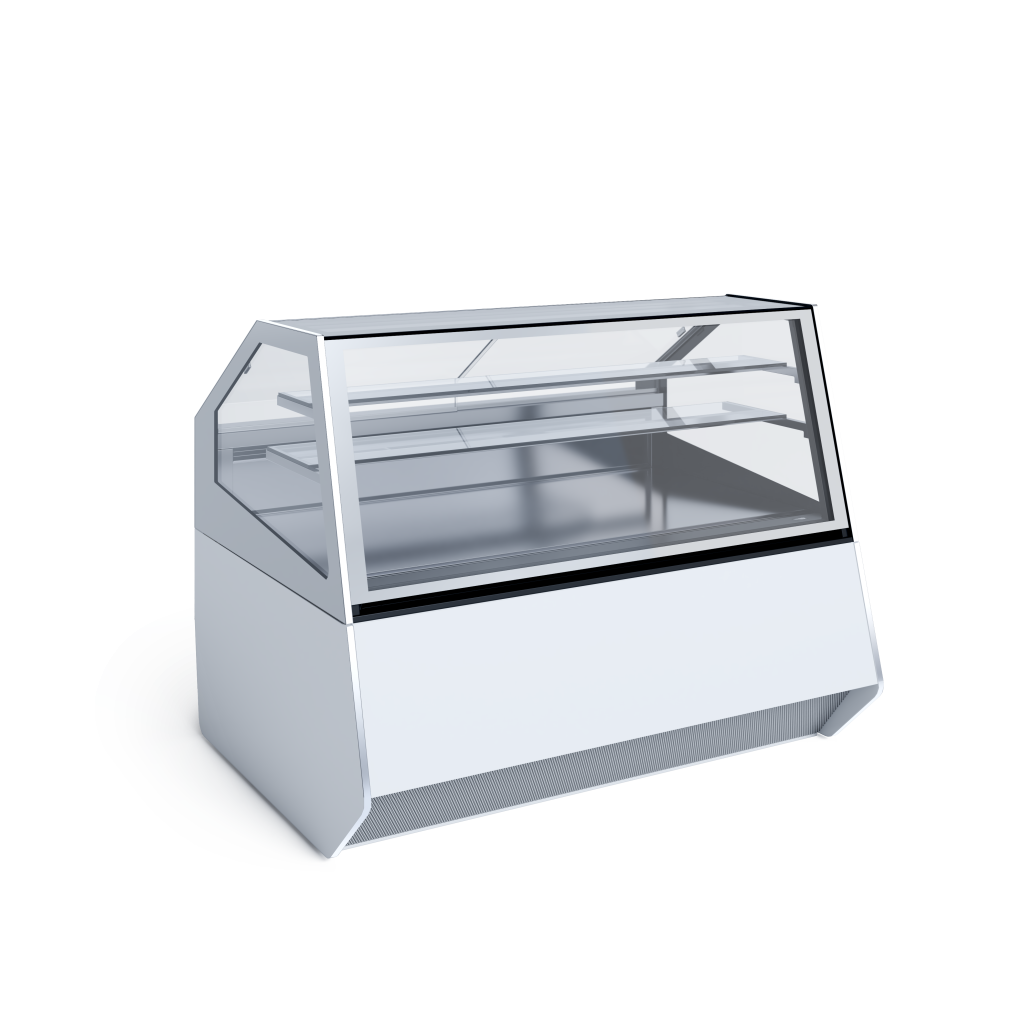

Tempered front double glass inclined at 15°, upward opening*, double glass sides with anti-fog warming system** with aesthetic screen-printing, glass top, n.02 intermediate glass shelves with LED light Fixture, visible profiles in polished mirror-finish aluminum, operator side closure with plexiglass panels, LED lighting system

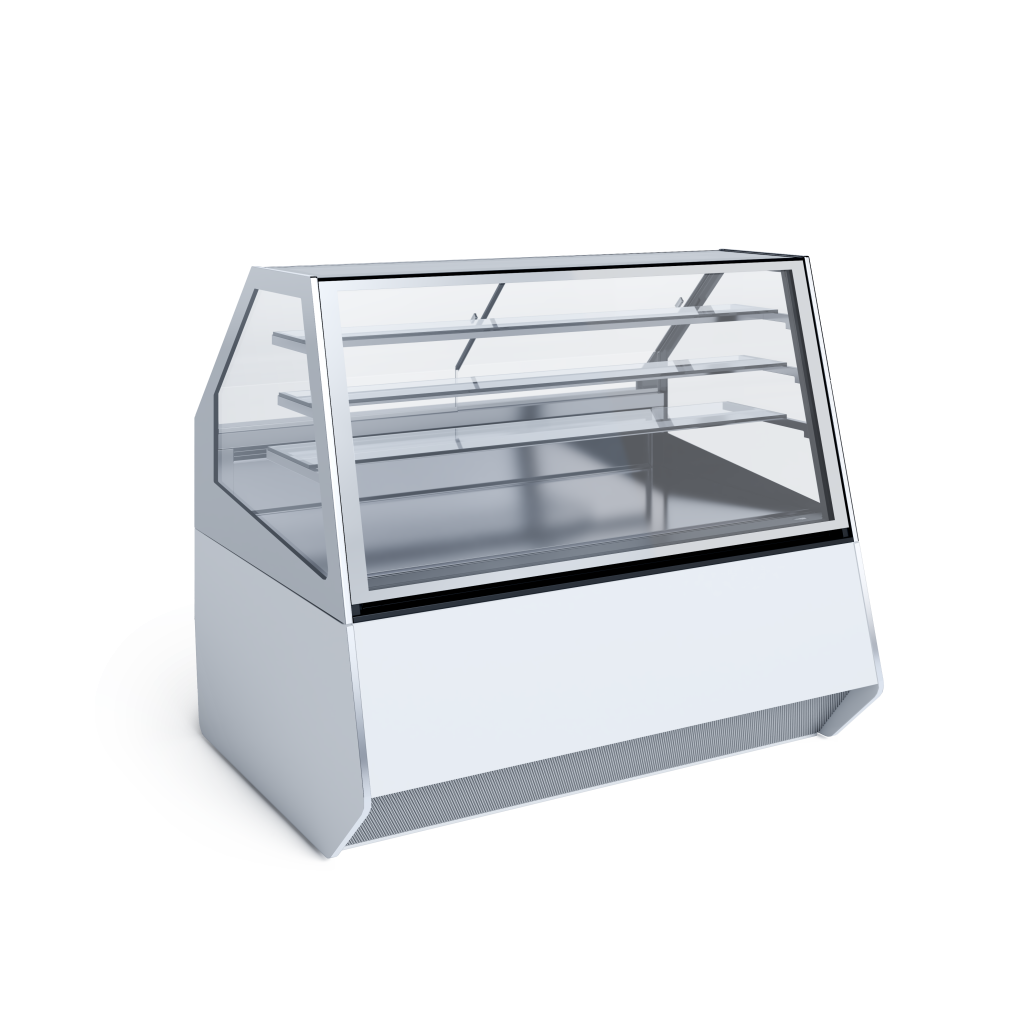

Tempered front double glass inclined at 15°, upward opening*, double glass sides with anti-fog warming system** with aesthetic screen-printing, glass top, n.03 intermediate glass shelves with LED light Fixture, visible profiles in polished mirror-finish aluminum, operator side closure with plexiglass panels, LED lighting system
