Category Horizontal showcases
The new automated dynamic display system for ambient/refrigerated display cases.
T_Move display cases are modular complying with the EN 600x400 pastry dimensions (EN 600x400) and feature an automatic transformation system from an ambient flush-floor display to a ventilated refrigerated display with double tilting baffle for air supply and intake. The display surface is made of brushed stainless steel and can be customized in any RAL finish with powder coating. T_Move display cases are available in floor-standing or drop-in built-in versions and have 3 types of glass gantries with 2 heights each (H1200 and H1350mm).
Applications
Design Highlights
Sleek and modern design for superb refrigeration solutions
All visible components can be customized in color through an epoxy powder coating process.

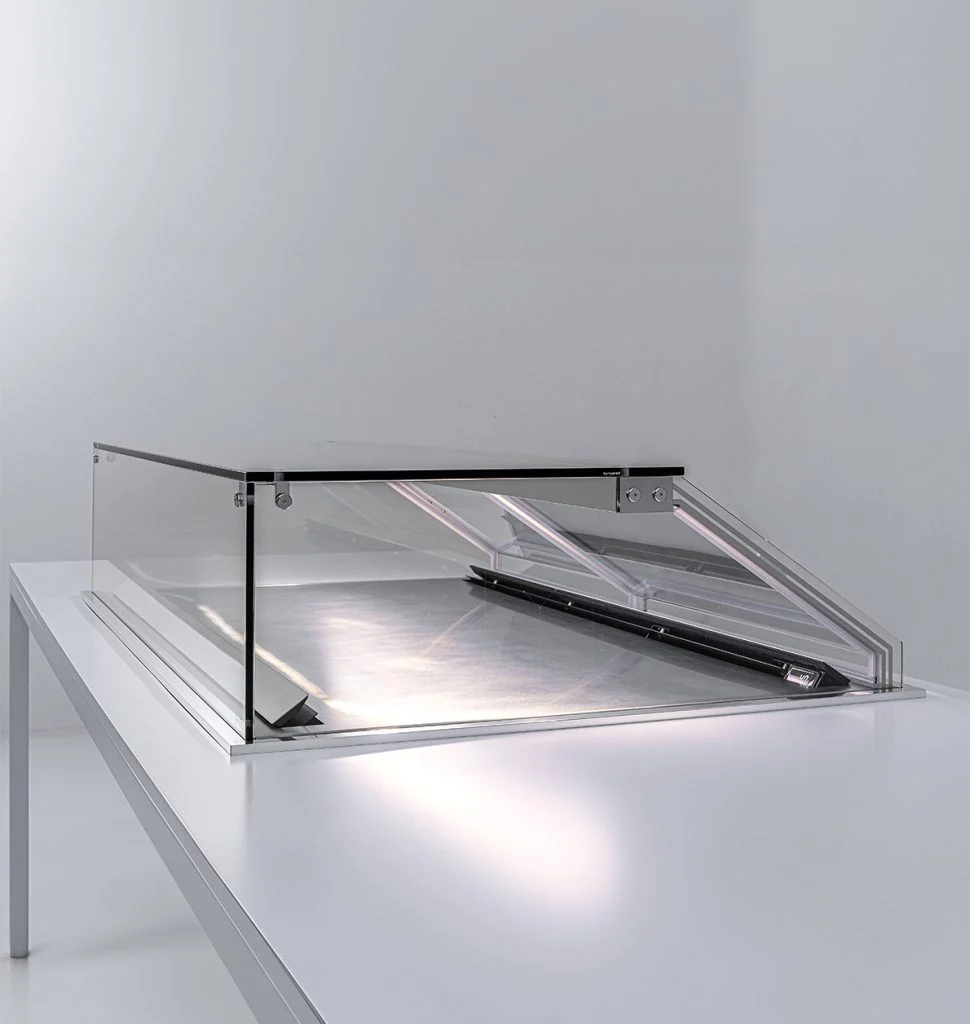

The display surface is perfectly flush with the surface. During refrigerated application, movable baffles are opened to canalize air flow.

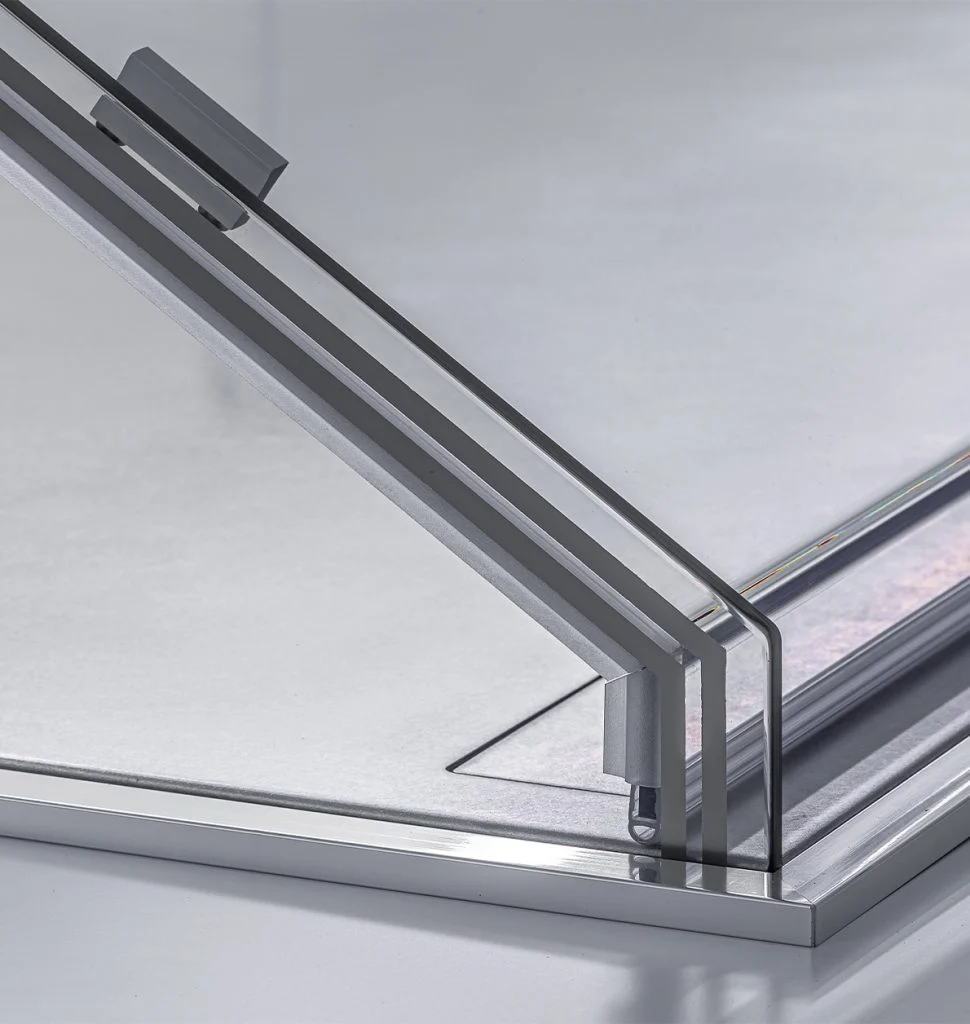

LED lighting is powered through low-voltage resistances built into the glass side panel, this allows for unique transparency with no visible electrical connections.
Dimensions
Lenghts: 900, 1300 mm
Depth: 820 mm
Heights: 1200, 1350 mm

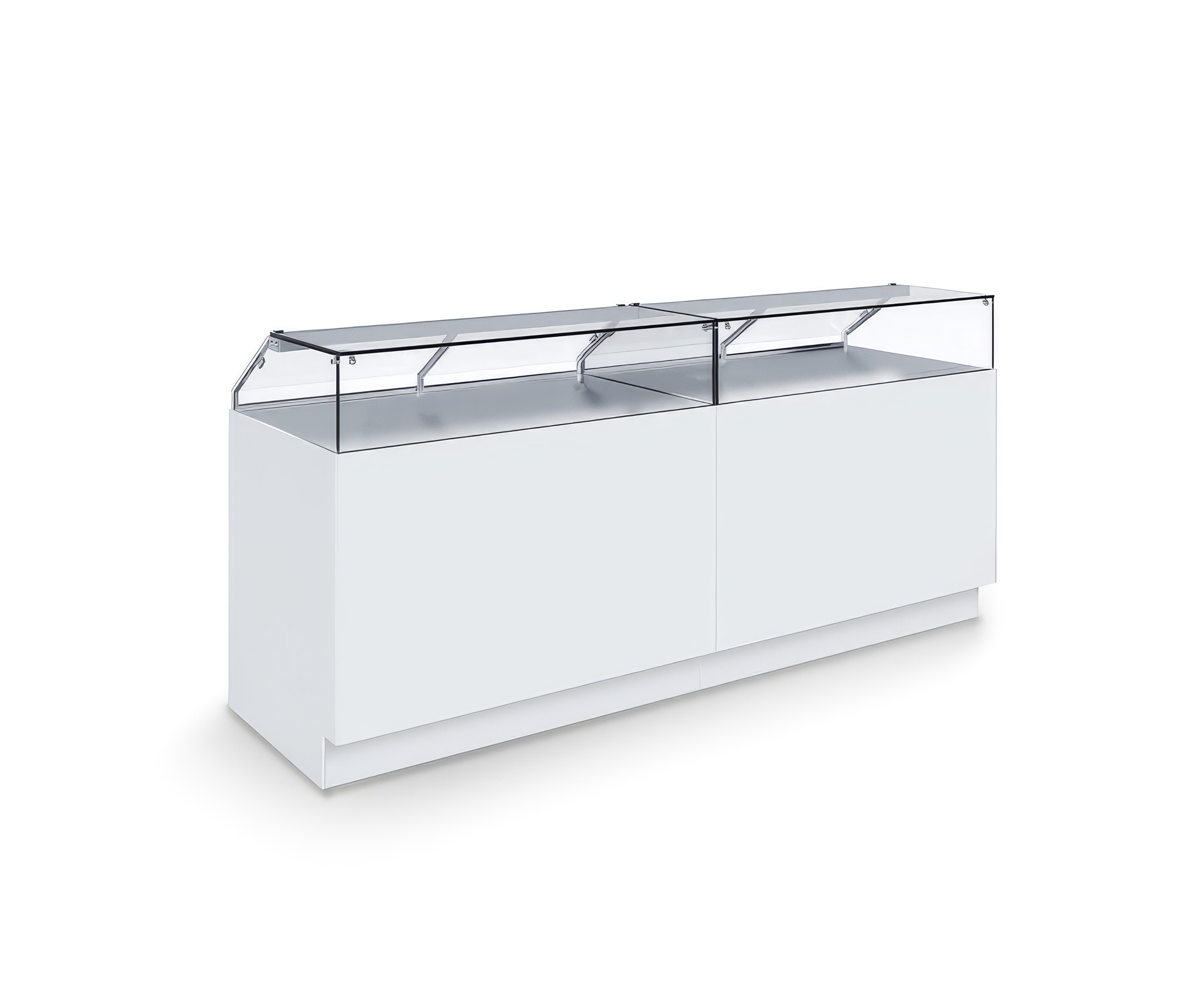

T-Move showcases can be channeled in aesthetic continuity.

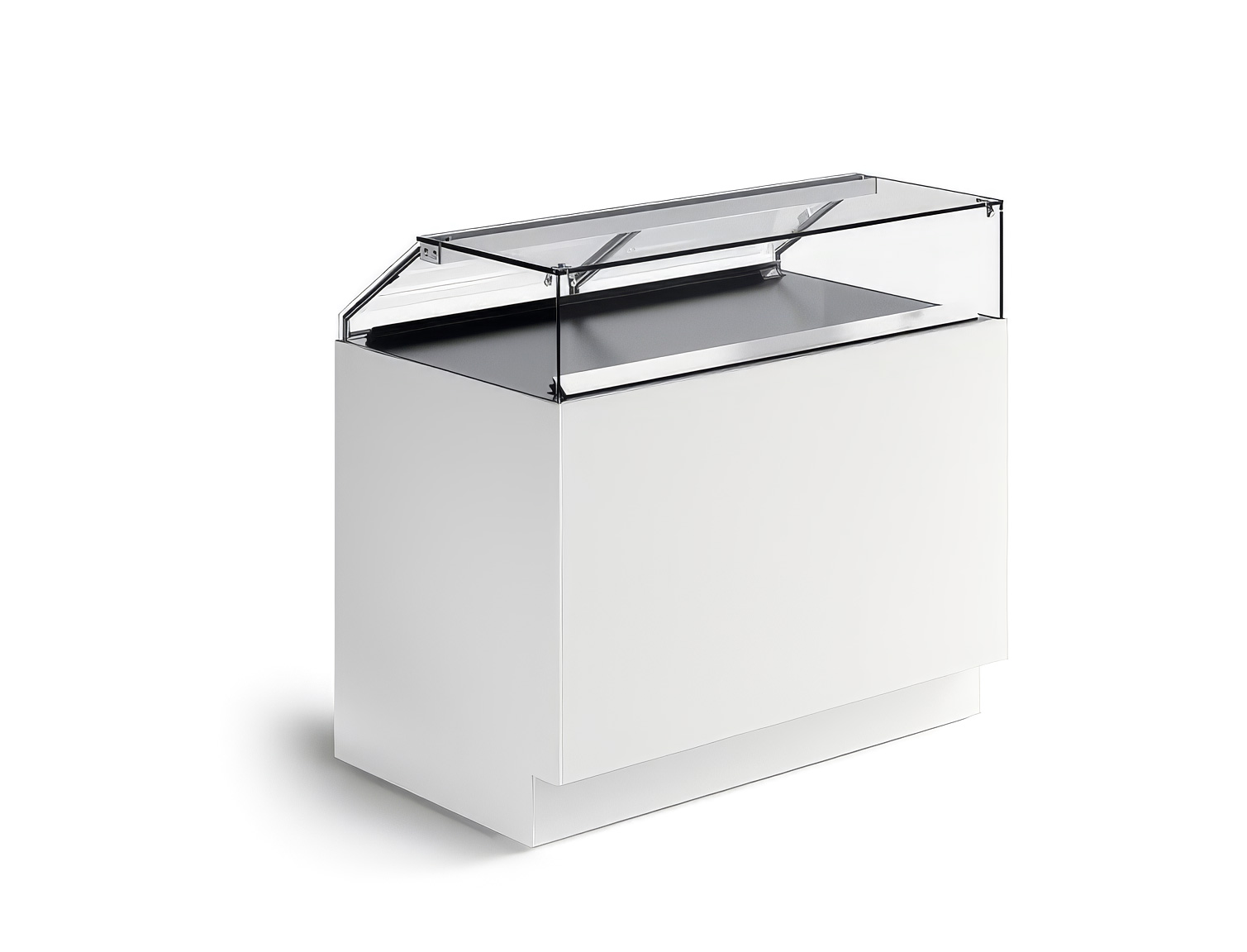

T-Move showcases can be supplied with either solid or lacquered HPL paneling upon request.
T-Move display cases are modular, complying with the EN 600x400 pastry dimensions. They are therefore available in two lengths: 940 and 1340 mm, and in the depth of 820 mm.

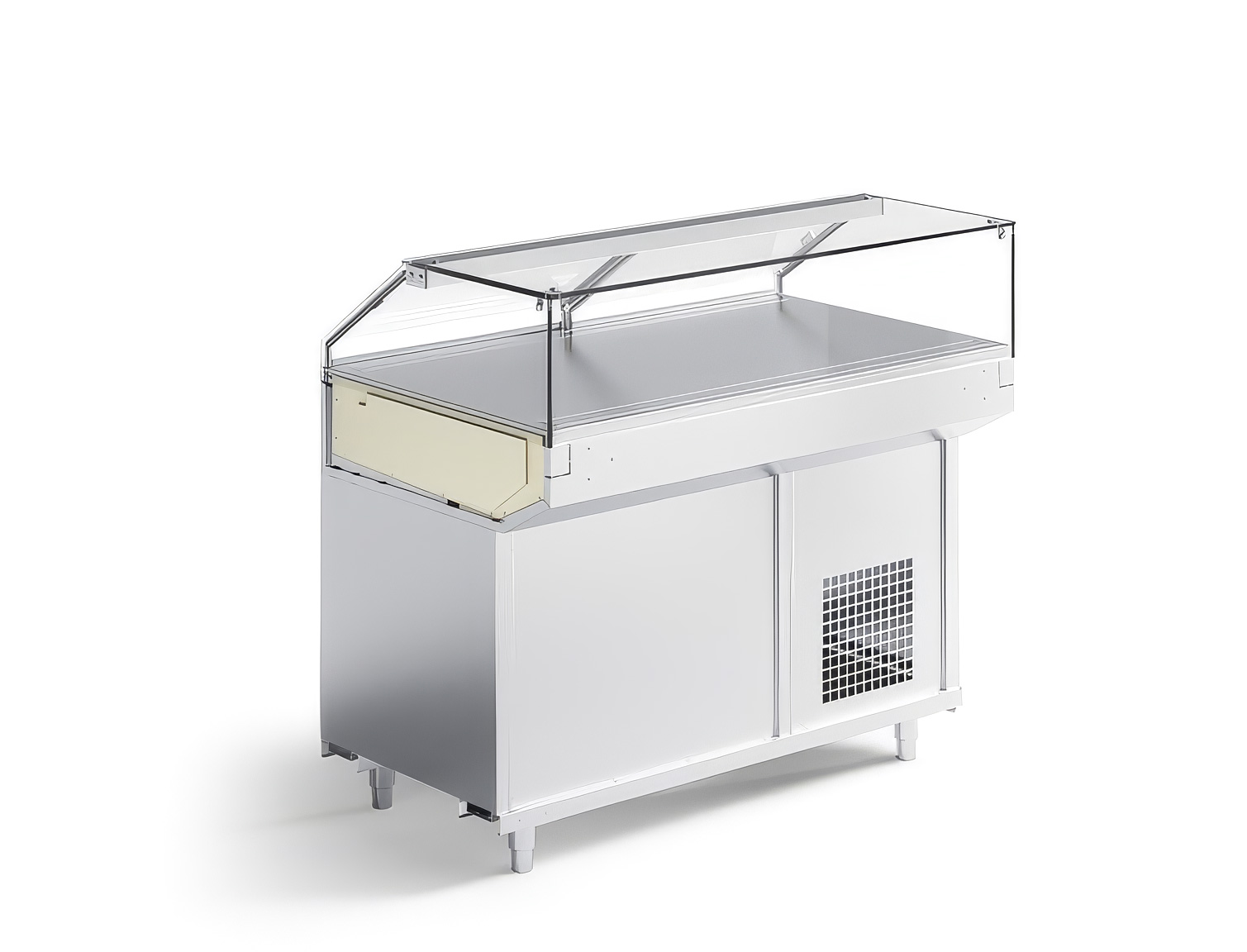

T-Move showcases can also be supplied in a semi-finished version, when coating is provided by the customer.

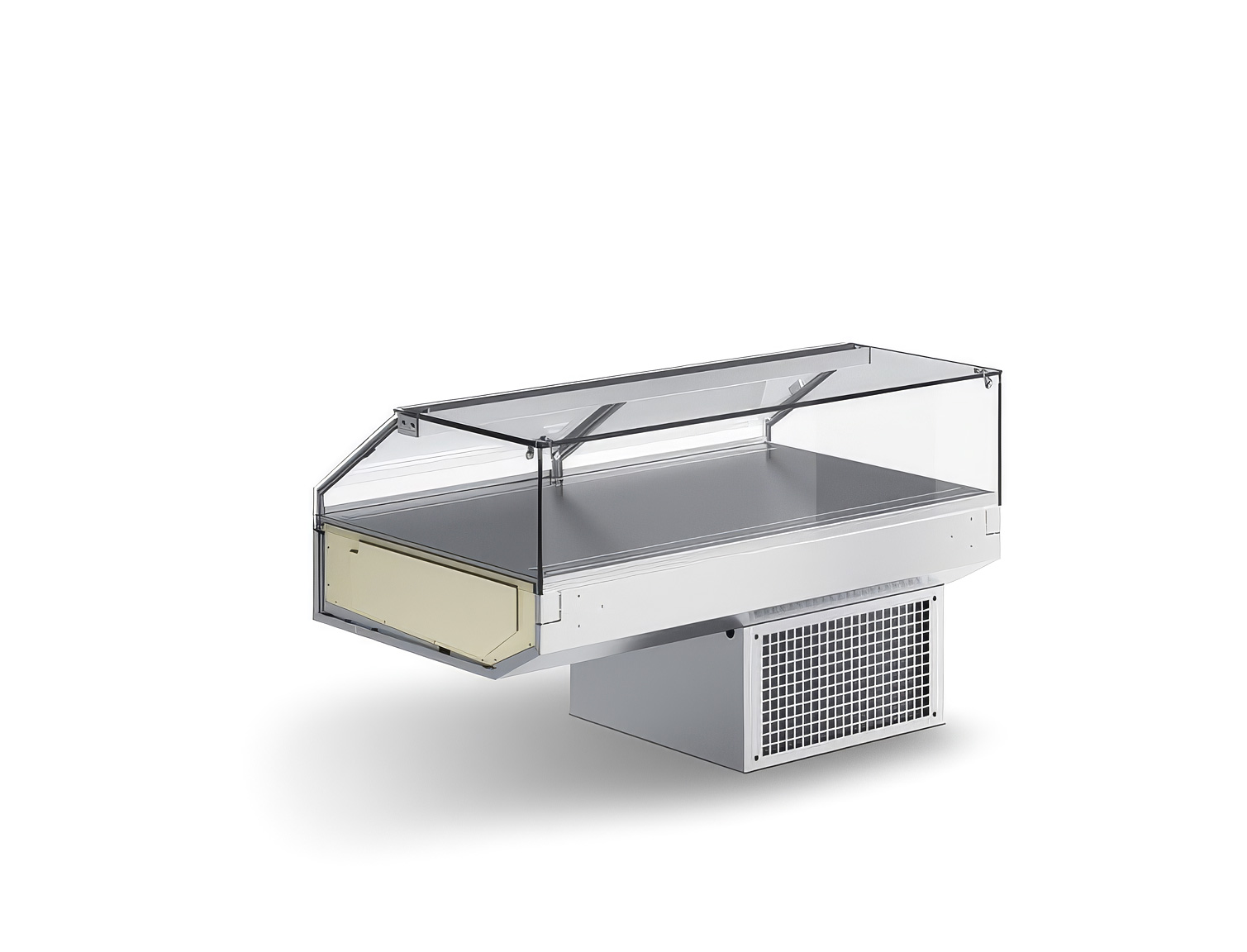

T-Move showcases can also be supplied with drop-in setup to be recessed into the top.

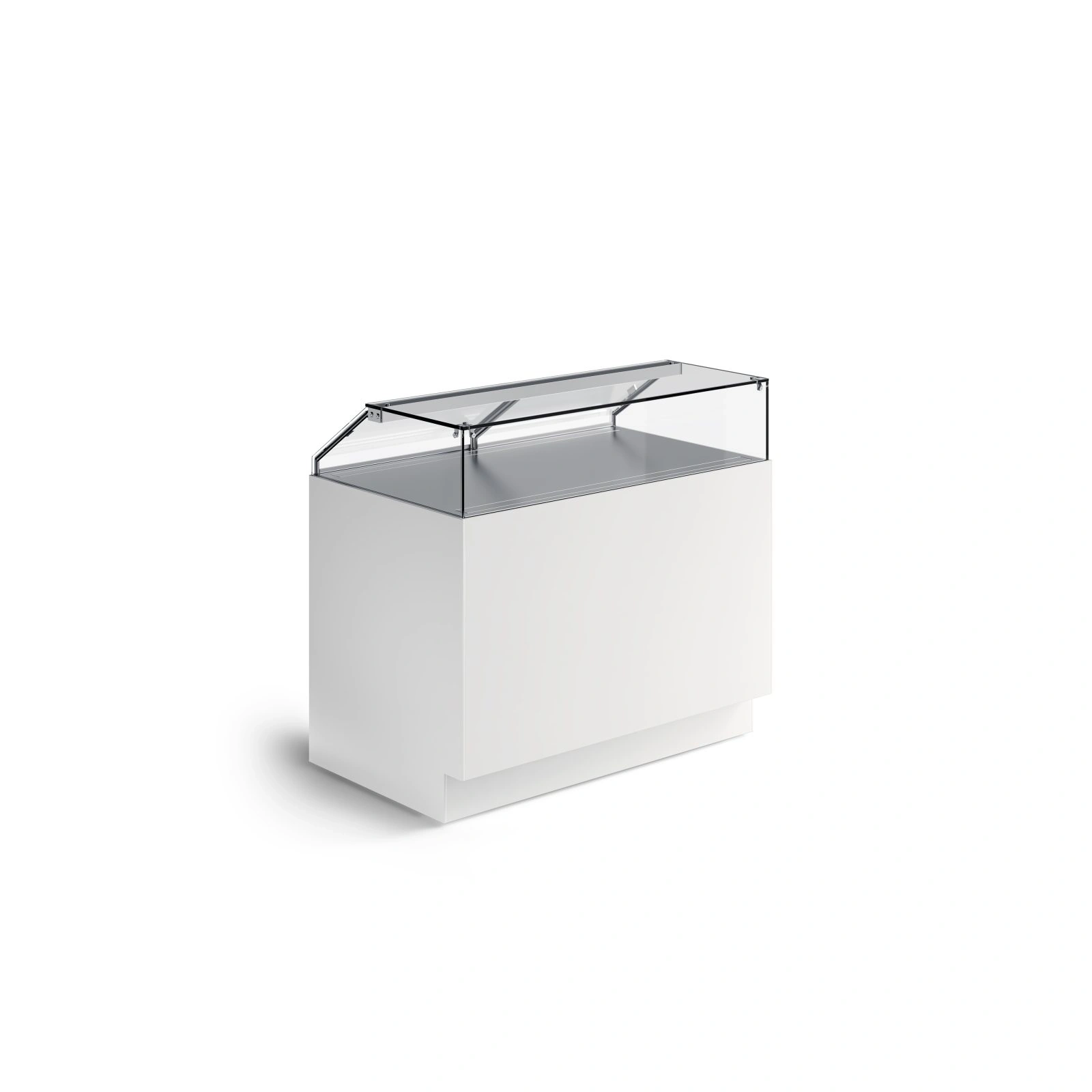

T-move showcases can be equipped with three different types of glass gantries, available in different heights.
The elegant touch control panel comes as standard on all refrigerated modules, ensuring intuitive and immediate control of the main operating functions.
The digital temperature display, flush-mounted into the structure.
The perfectly integrated LED lighting diffuses a striking light at a colour temperature of 3000°K.
The evaporator unit can be supplied in the power-assisted lift-up version, this facilitates cleaning of the tank bottom.
The refrigerated compartment is accessible through PETG sliding doors, equipped with perimeter gaskets.
Patented anti-fogging system, which employs pyrolytic crystals with invisible electrical heating elements, thus ensuring maximum transparency and lightness.
All internal condensing units are hermetic and use the eco-friendly gas R290 with low GWP (3) in compliance with the F-GAS Regulation Reg. 2024/573.
An identification label featuring a QR code is located inside the refrigerator, providing access to downloadable user and maintenance manuals, as well as product-related technical documentation.
Available on request, the Ciam Connect package enables cloud connectivity for remote monitoring and management of a wide range of functions. The service also includes alarm notifications and preventive maintenance tools designed to help avoid faults and downtime.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
