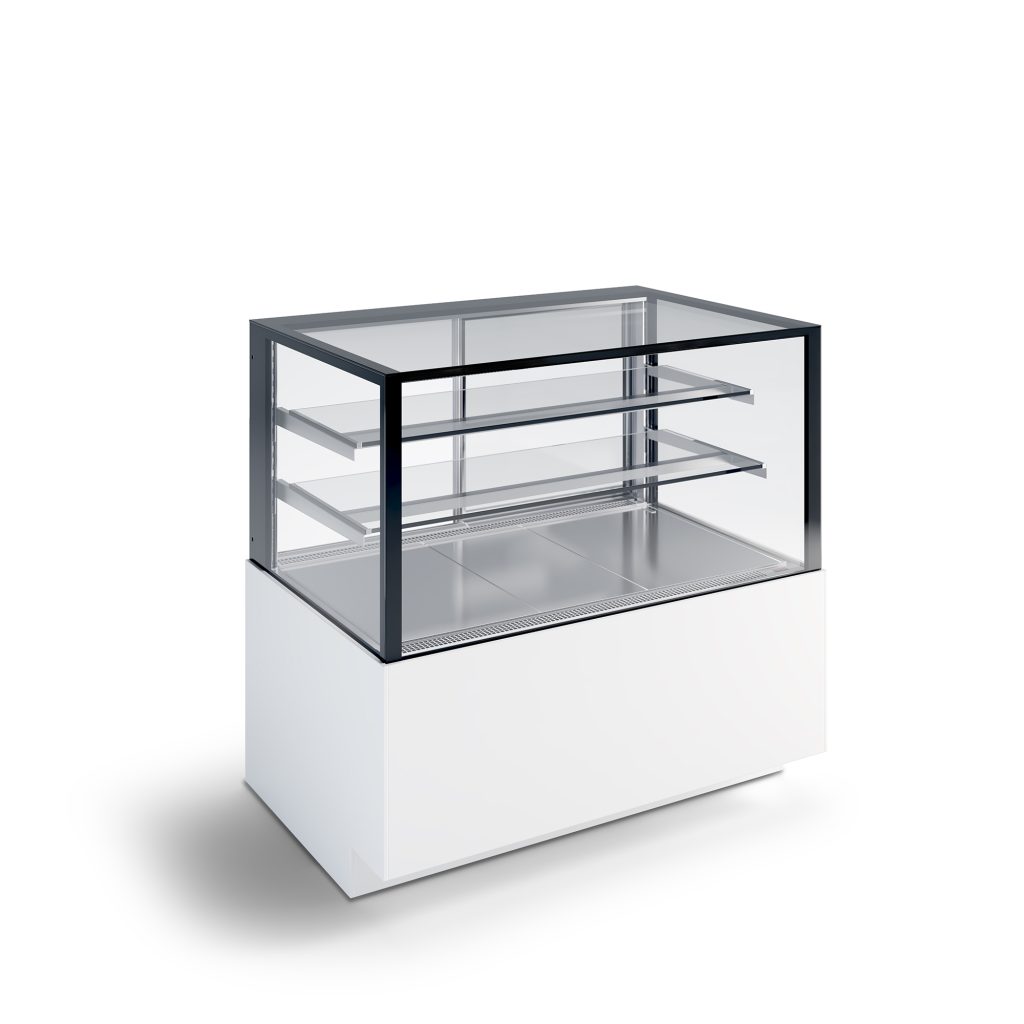

Tortuga display cases feature vertical refrigeration on all display surfaces.

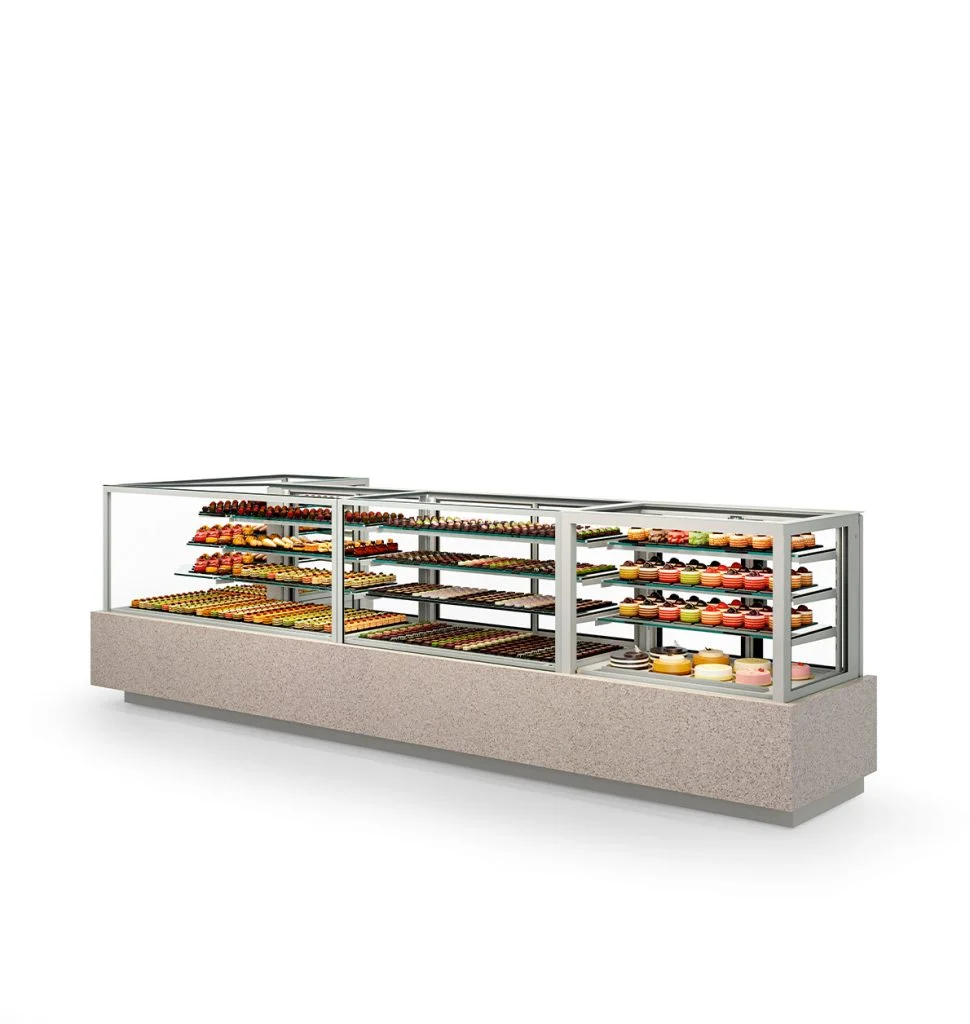

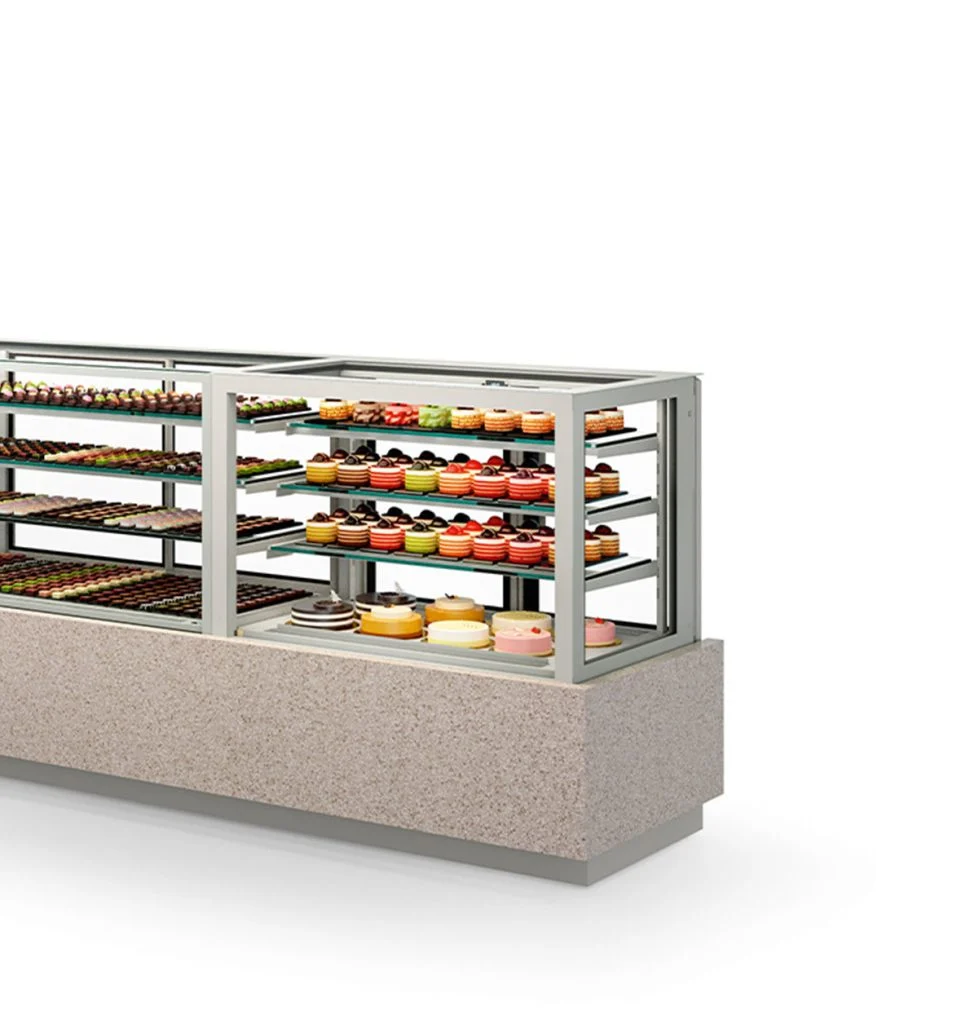

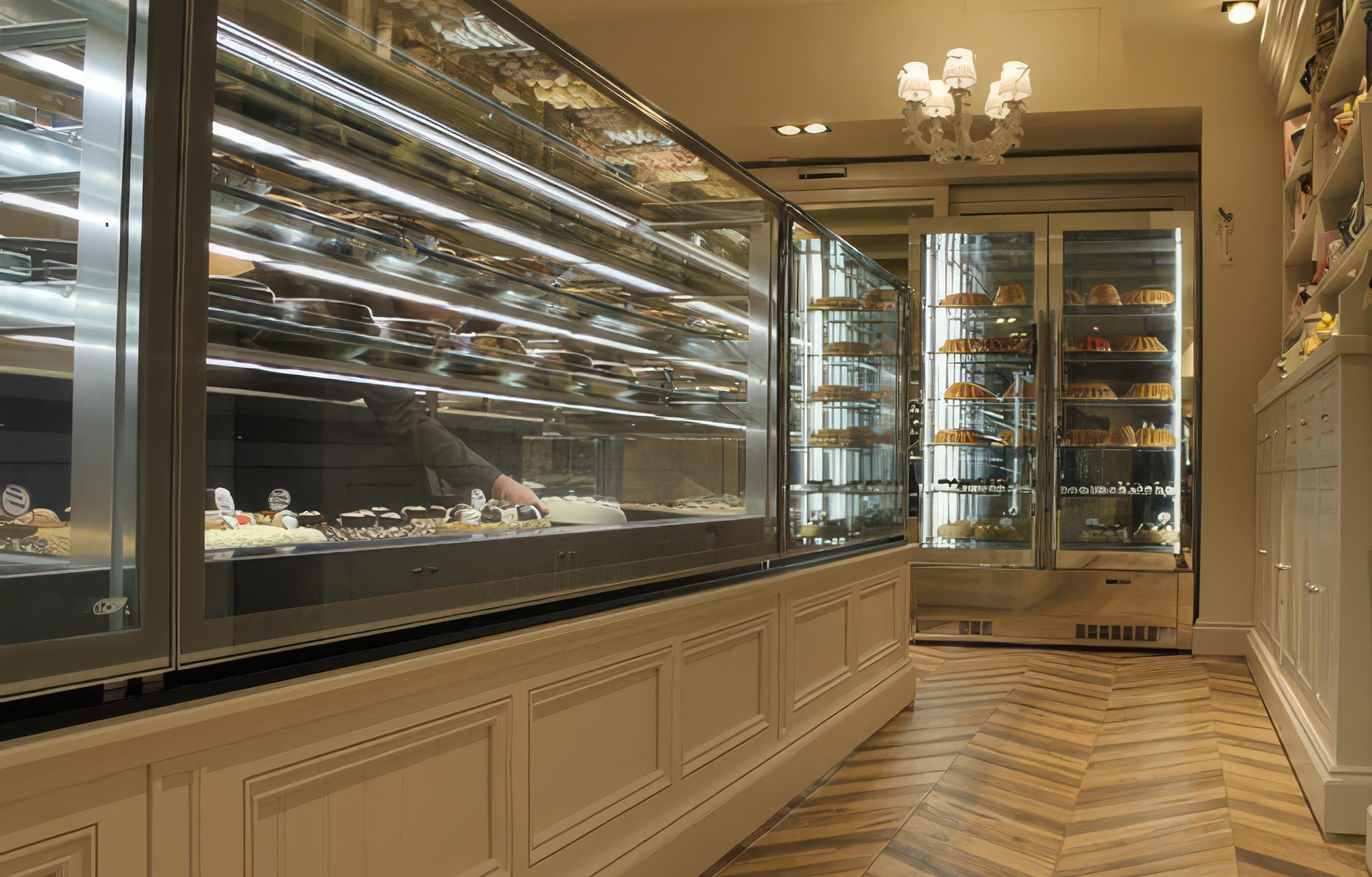

The showcases are modular refrigerated cold-temperature, low-temperature, warm-temperature and ambient showcases, suitable for the storage of pastry, chocolate, delicatessen, meat and cheese products thus perfect for use in any design context. Models with internal motor use the eco-friendly gas R290. Tortuga display cabinets can be channeled in aesthetic continuity and offer great customization possibilities, which is why all surface finishes, coatings and glass screen printing can be customized by using Ciam's wide selection of Materials that includes gres, acrylics, engineered stones, natural stones, epoxy powder-coated sheets, sheets with electroplating treatment, brass, wood and ceramic coatings.
Applications
Design Highlights
Sleek and modern design for superb refrigeration solutions
Tortuga showcases are available in five lengths (900, 1000, 1200, 1500, 2000 mm), two types of angles (right and left), two depths (625, 800 mm), two heights (1200, 1350 mm).
All surface finishes, coatings, and screen printing of glass can be customized using Ciam's wide selection of Materials including gres, acrylics, engineered stones, natural stones, epoxy powder coated sheets, sheets with electroplating treatment, brass, wood, and ceramic coatings.
Dimensions
Lengths: 900, 1000, 1200, 1500, 2000 mm
Depths: 625, 800 mm
Heights: 1200, 1350 mm
Custom versions available subject to technical assessment

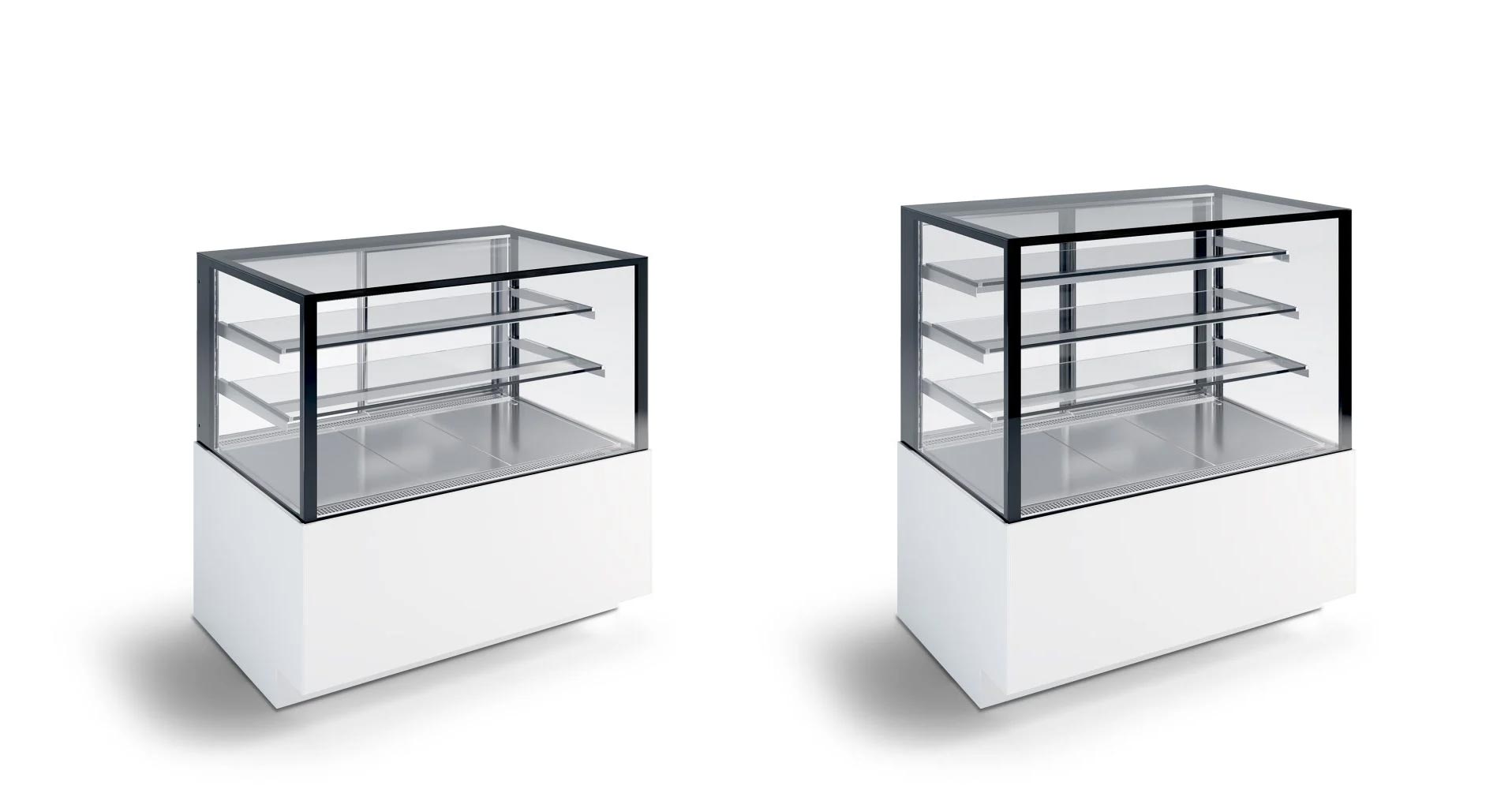

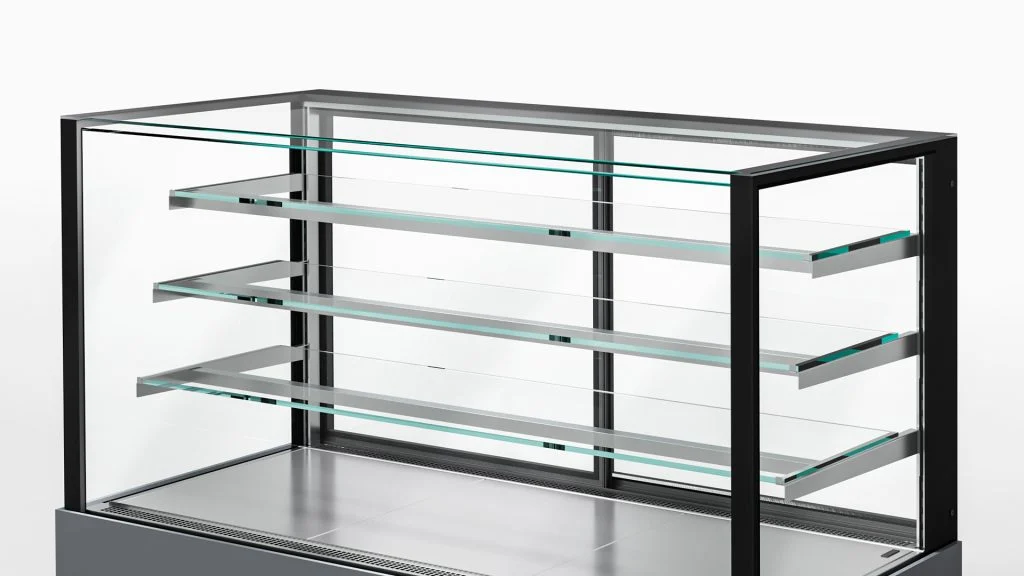

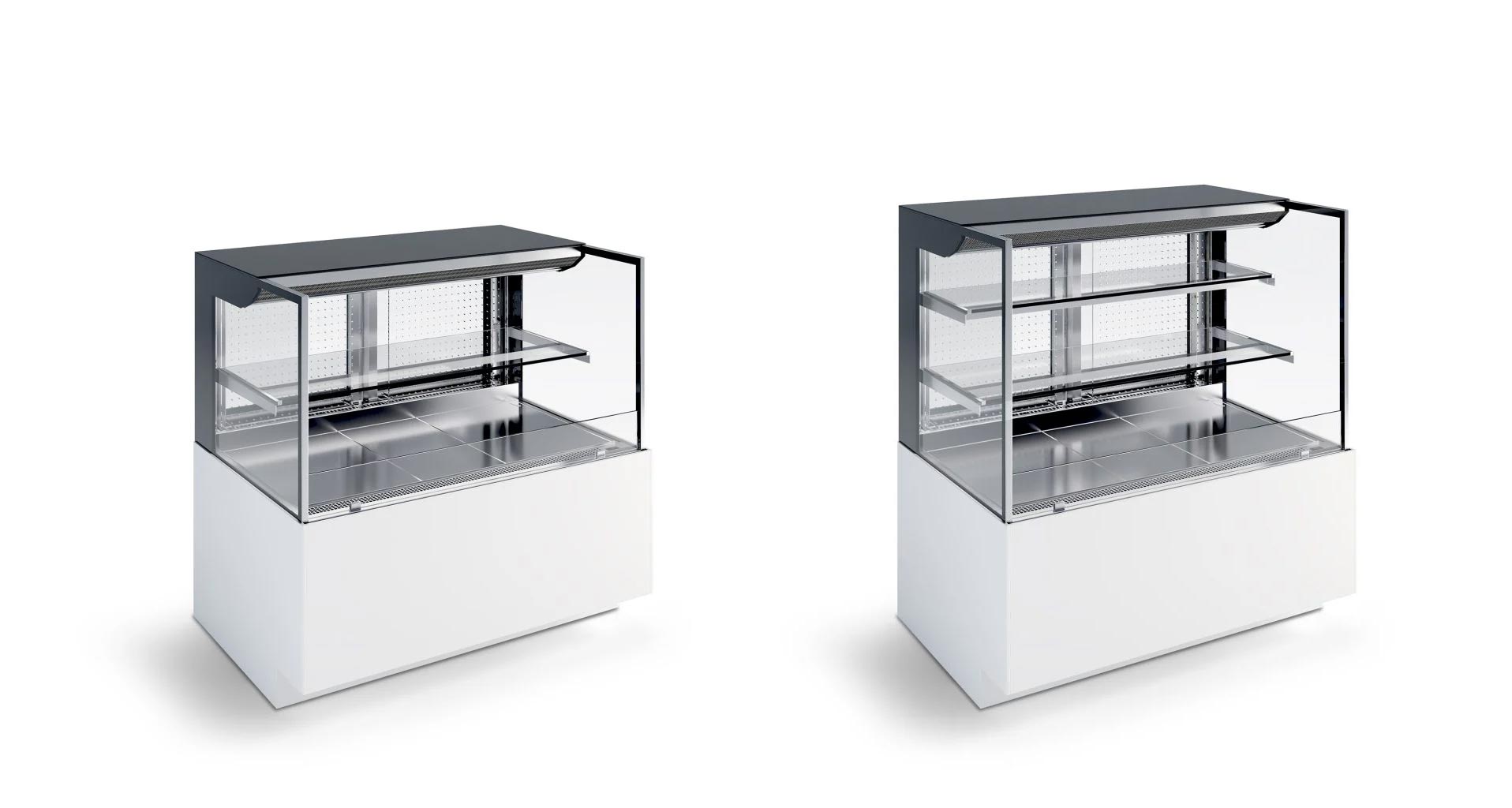

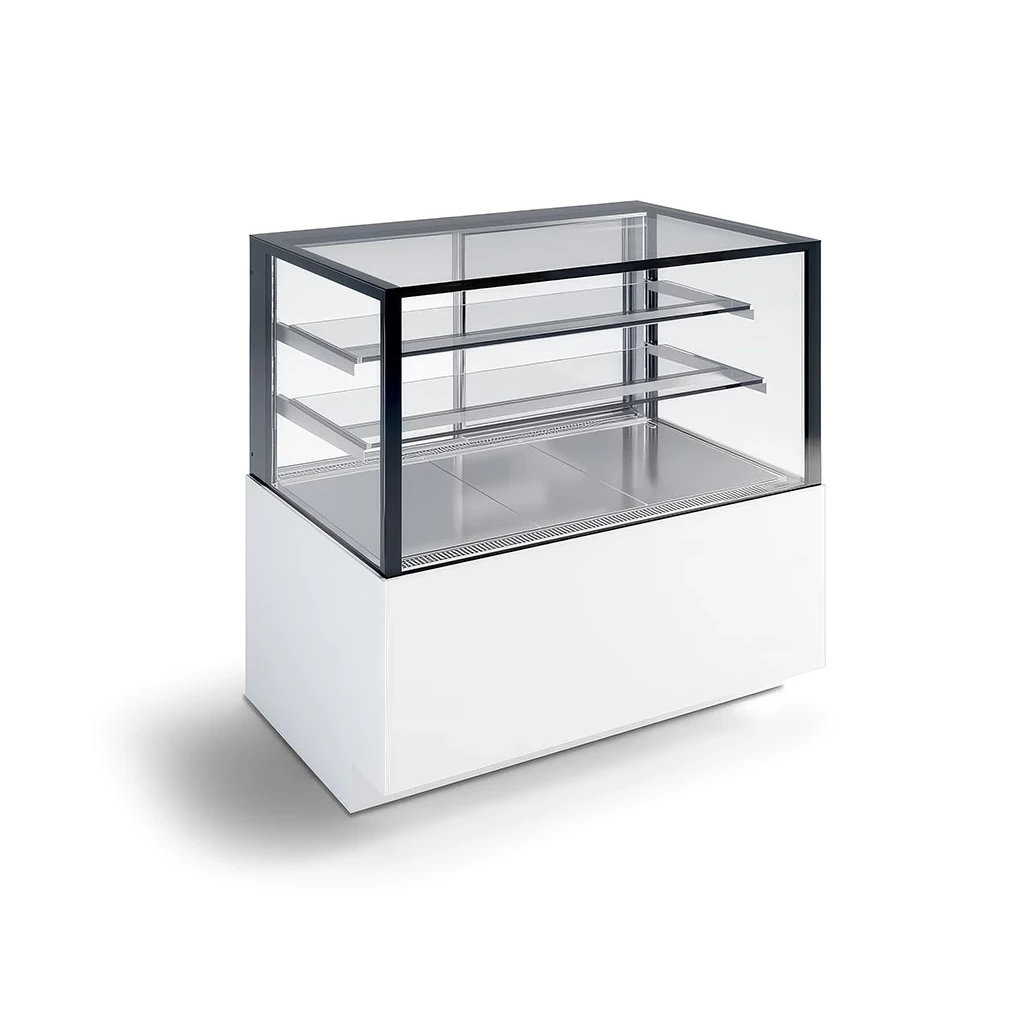

Fixed double glazed glass case | "black" silkscreen printing | polished aluminium profiles | nr. 2/3 intermediate shelves with lighting adjustable on low-voltage electrified rack system | operator-side closing with double-glazed glass sliding doors

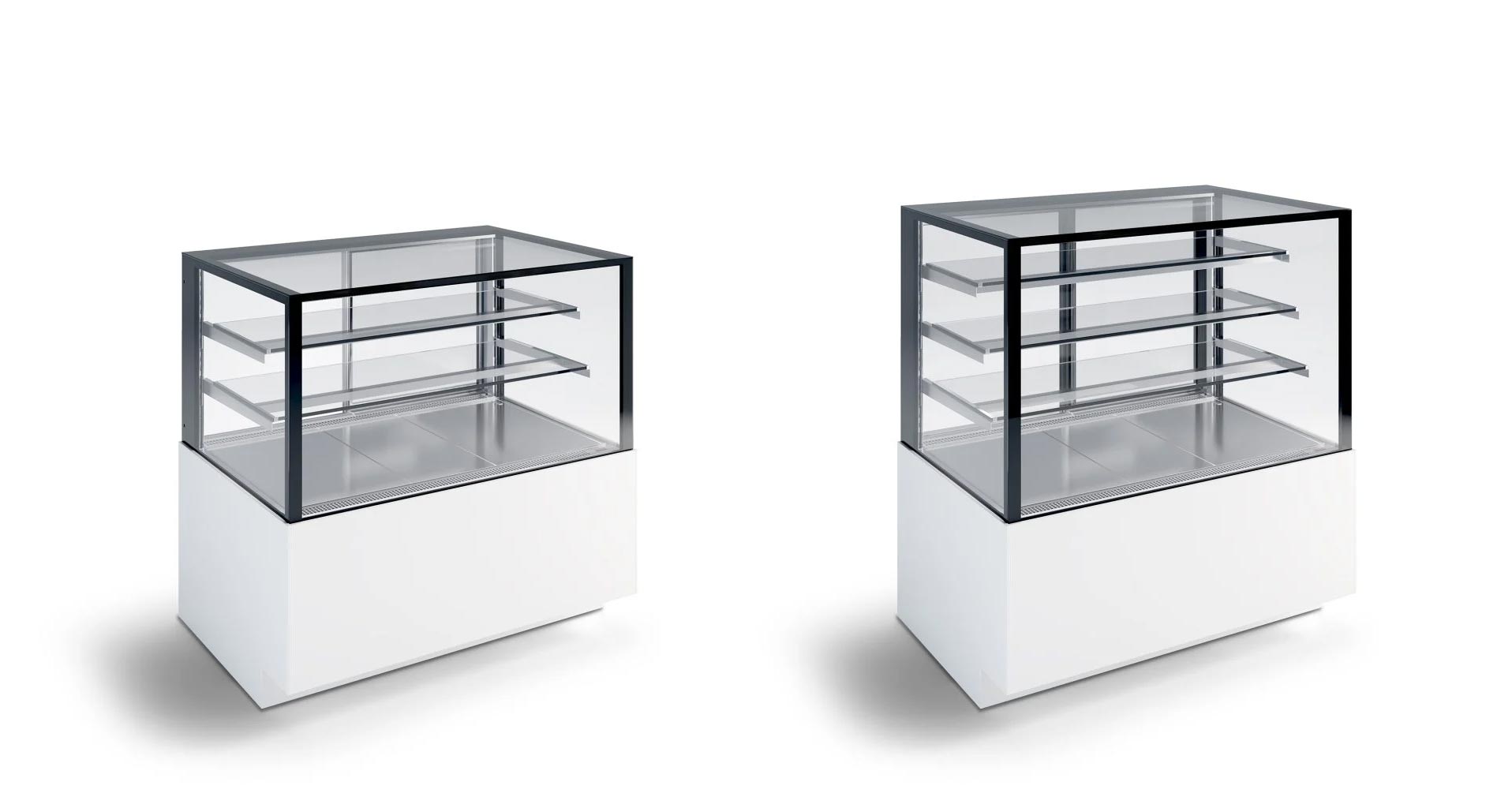

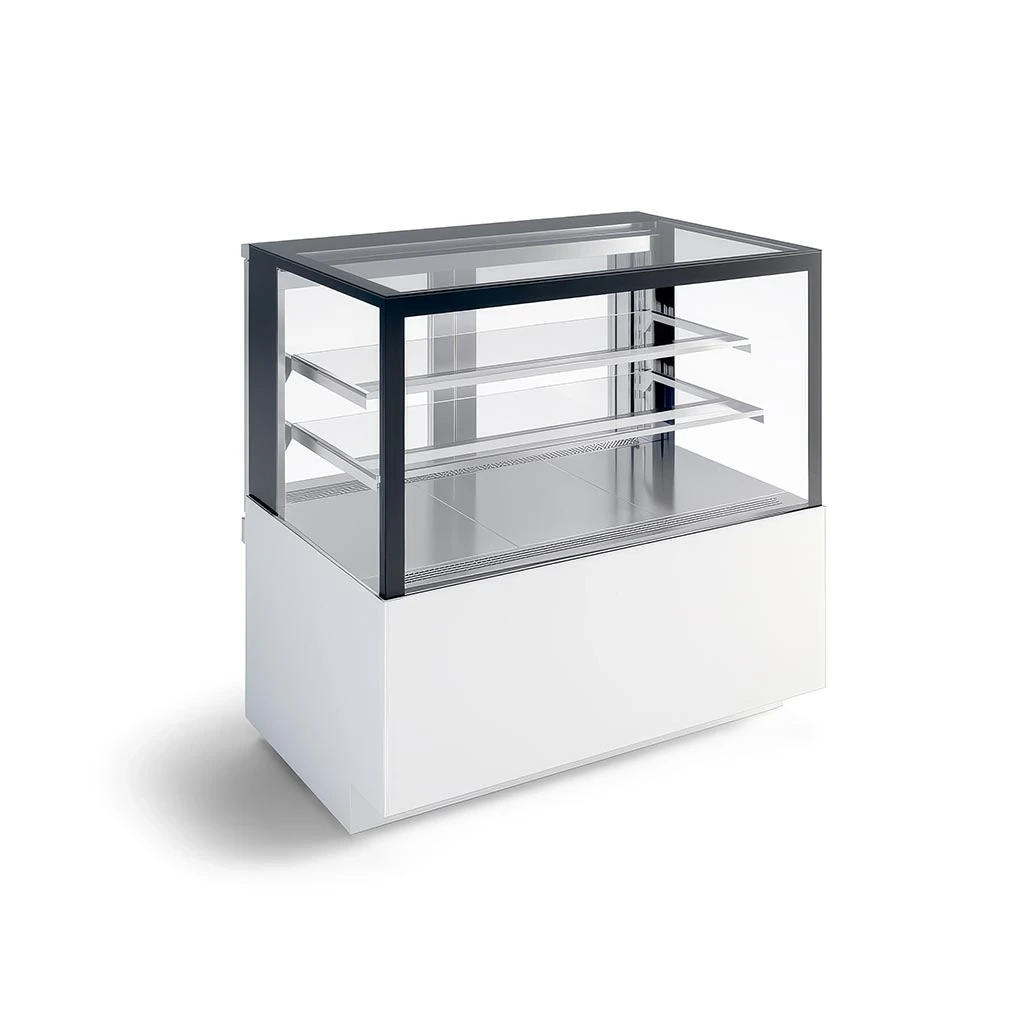

Fixed triple glazed glass case | "black" silkscreen printing | polished aluminium profiles | nr. 2/3 intermediate shelves with lighting adjustable on low-voltage electrified rack system | operator-side closing with double glazed hinged glass doors without central upright
Double glazed side glasses | top painted glass | nr. 2/3 intermediate shelf with light adjustable on low-voltage electrified rack | operator-side closing with double glazed hinged glass doors without central upright

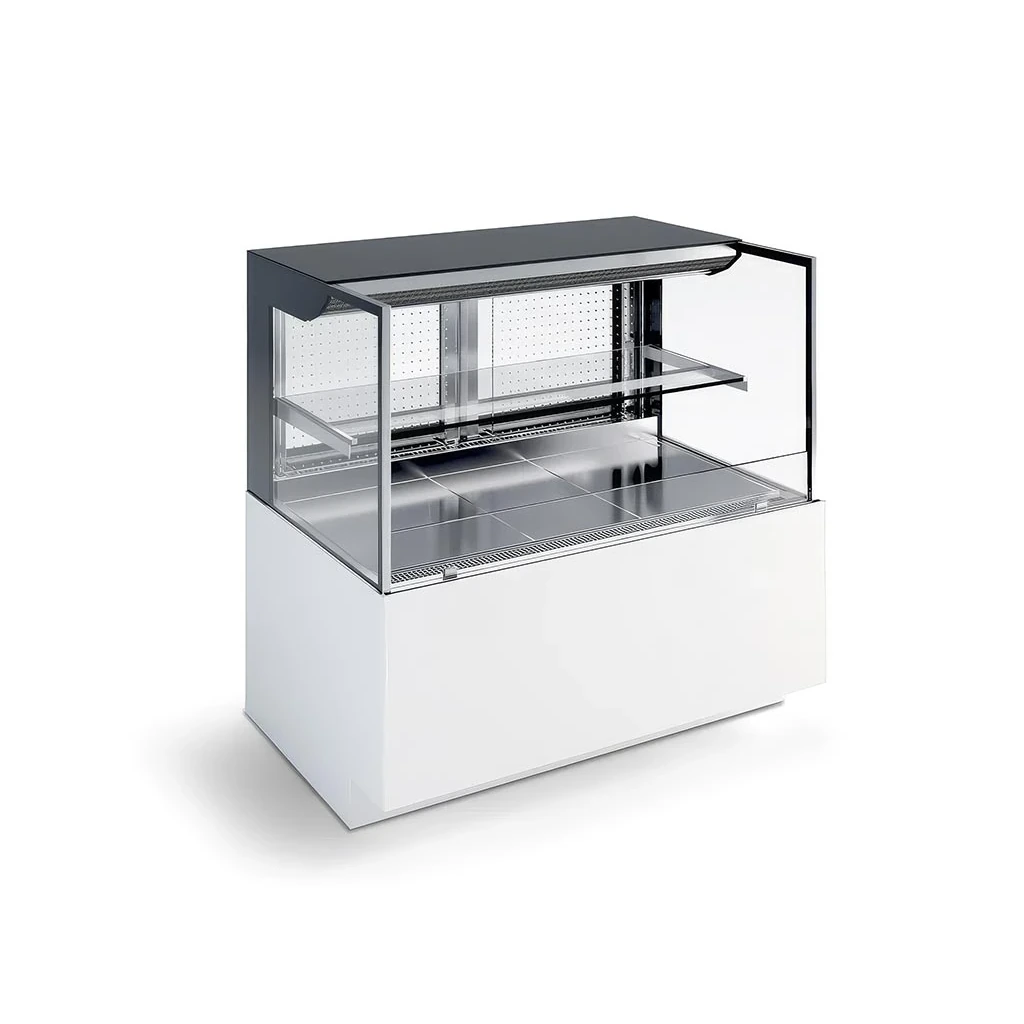

Glass gantry with fixed double-glazing for positive temperature version and heated triple-glazing for low temperature version | "black" screen printing | 3000°K no-spot LED strip lighting

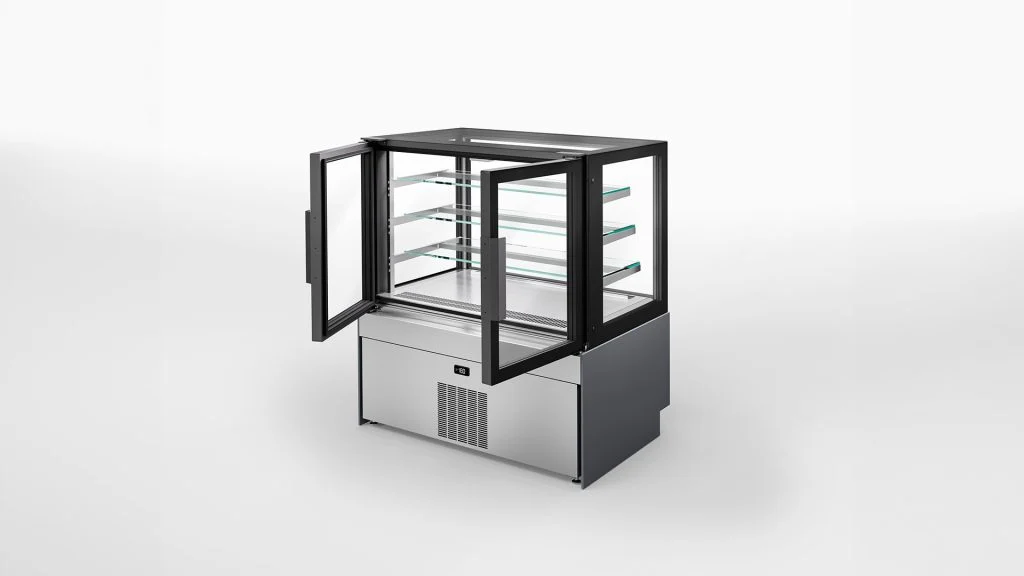

In the negative-temperature version, access to the refrigerated compartment is through heated thermal double pane glass doors without a center pillar to facilitate loading operations.

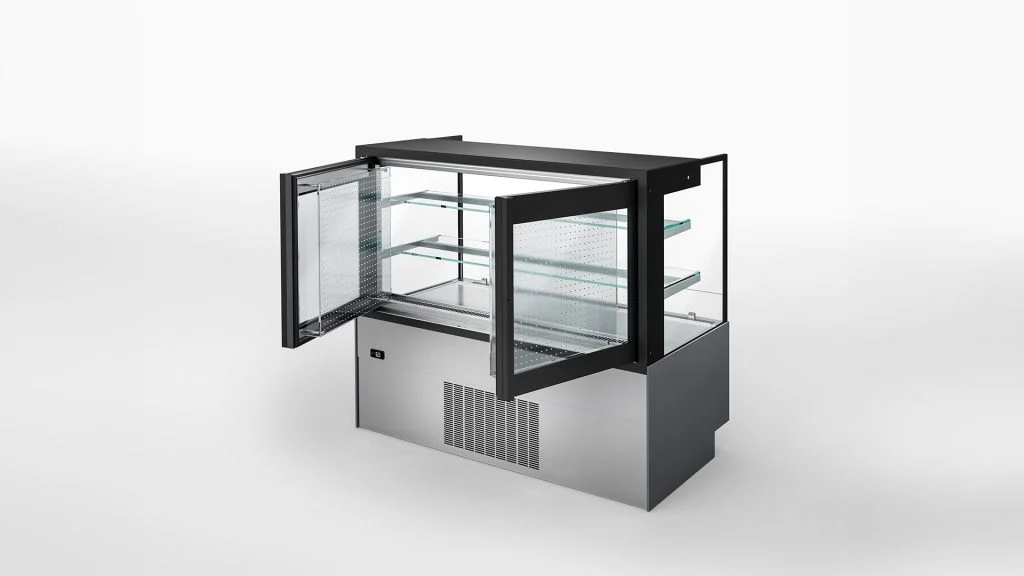

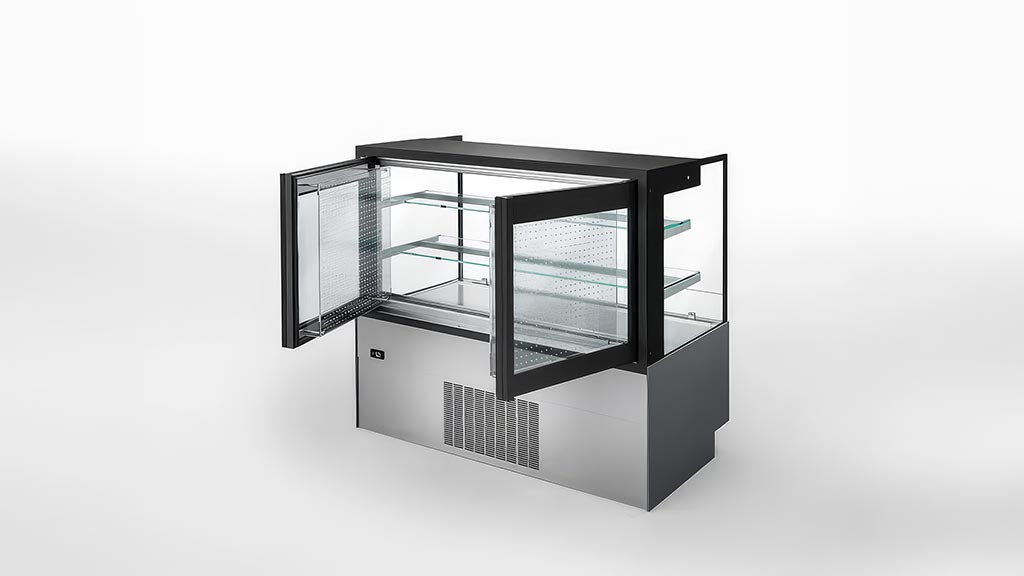

In the Self-Service version, access to the refrigerated compartment is through double-glazed doors with transparent panels for channeling the flow of refrigerated air. The absence of a center upright facilitates loading operations.

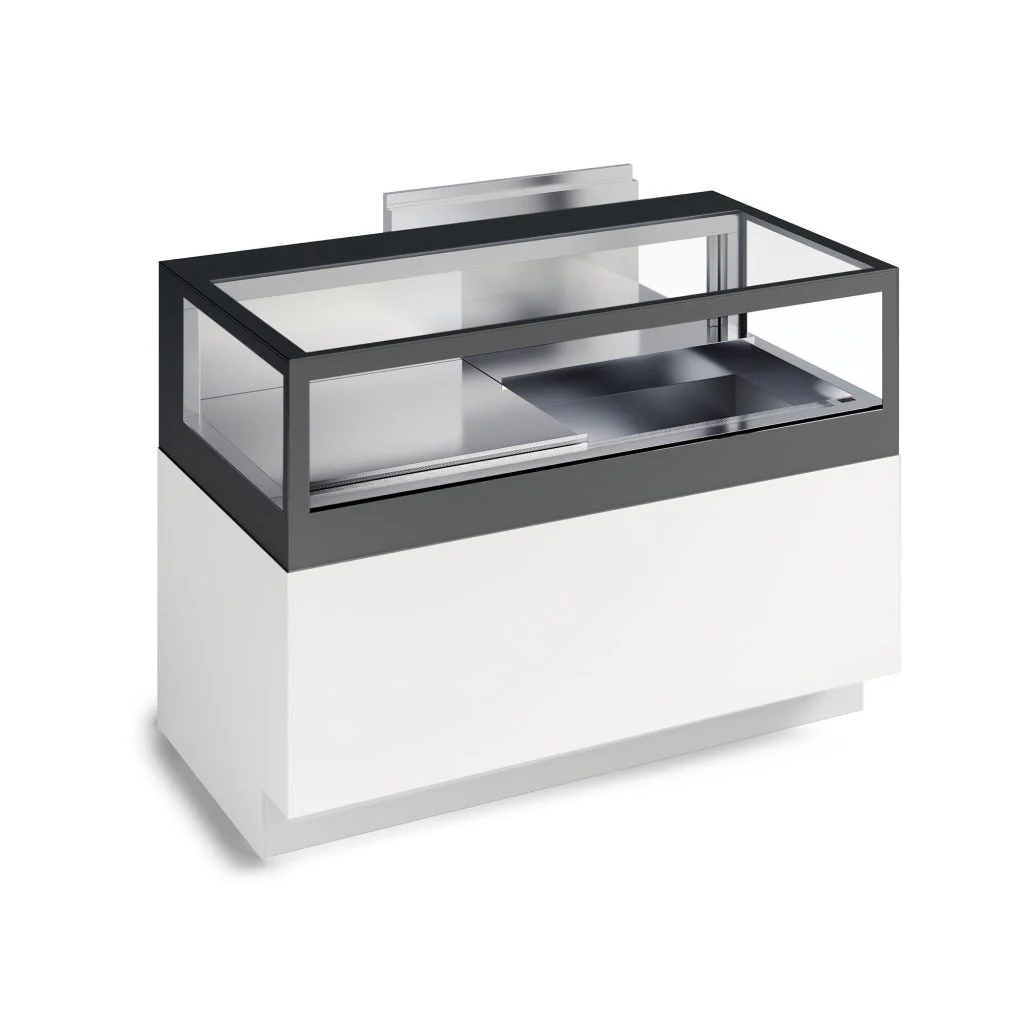

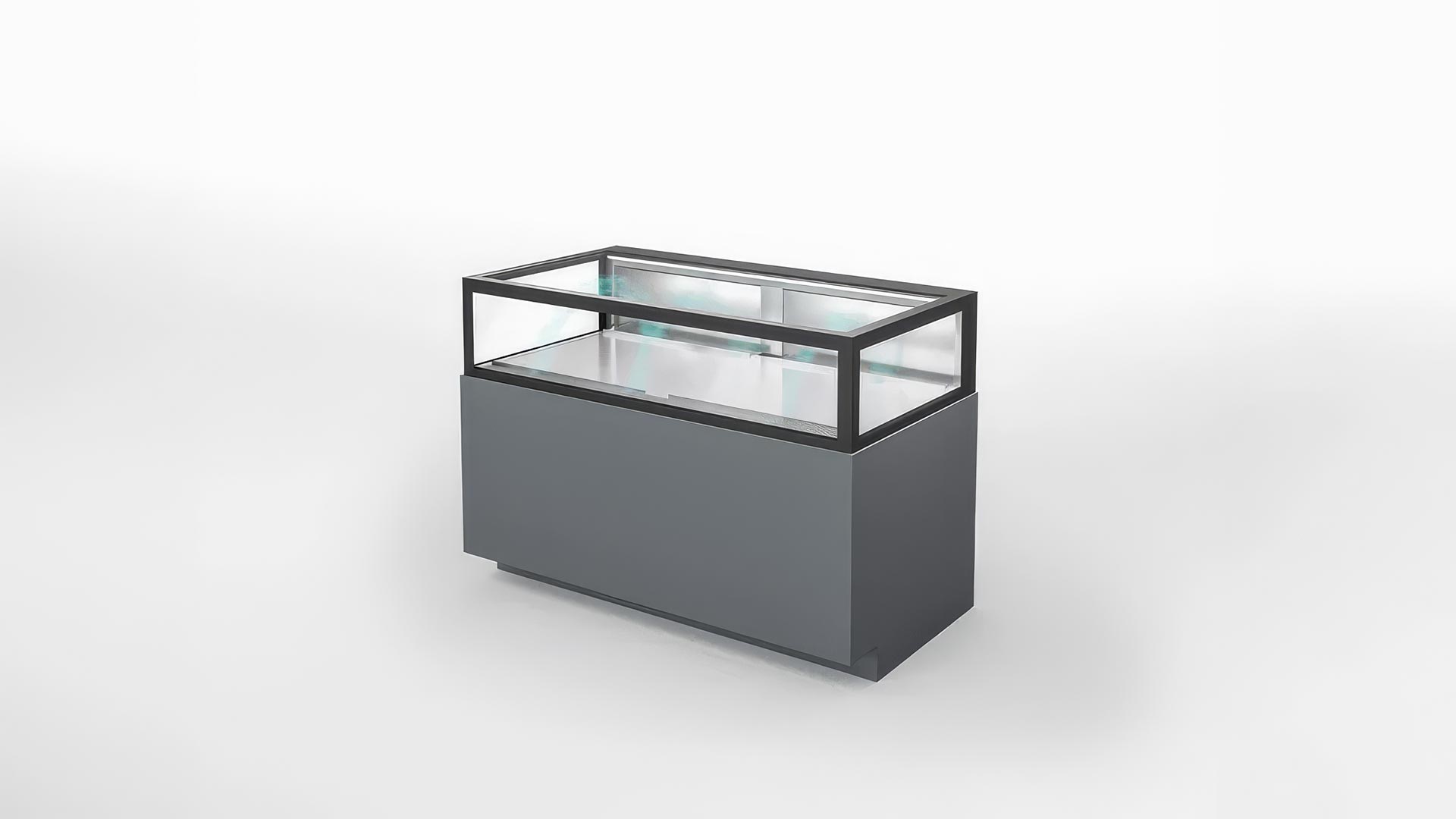

The high internal humidity of the JWL version of Tortuga makes it ideal for storing gastronomy and fresh meat. Access to the refrigerated compartment is via full-extension pull-out drawers.

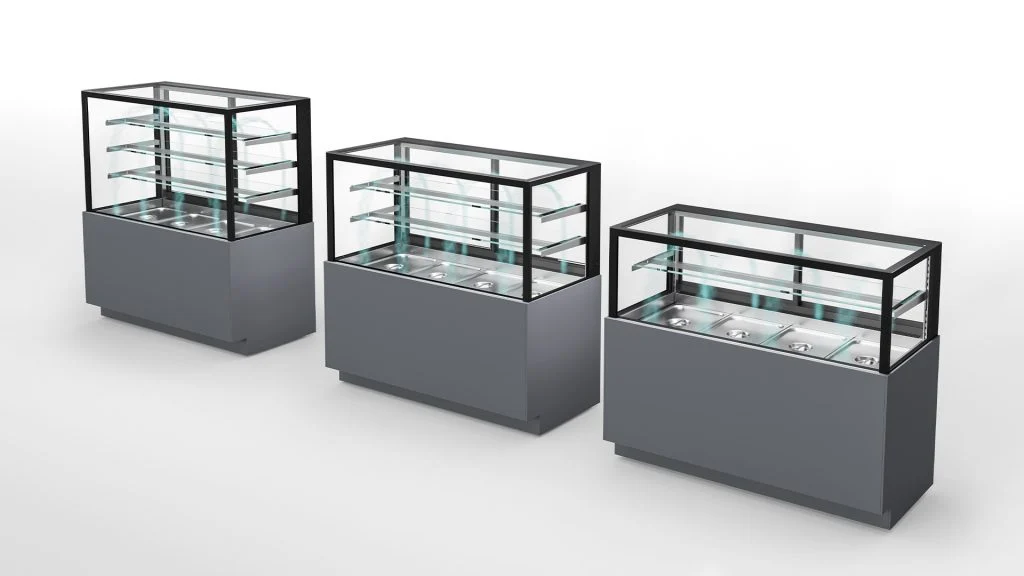

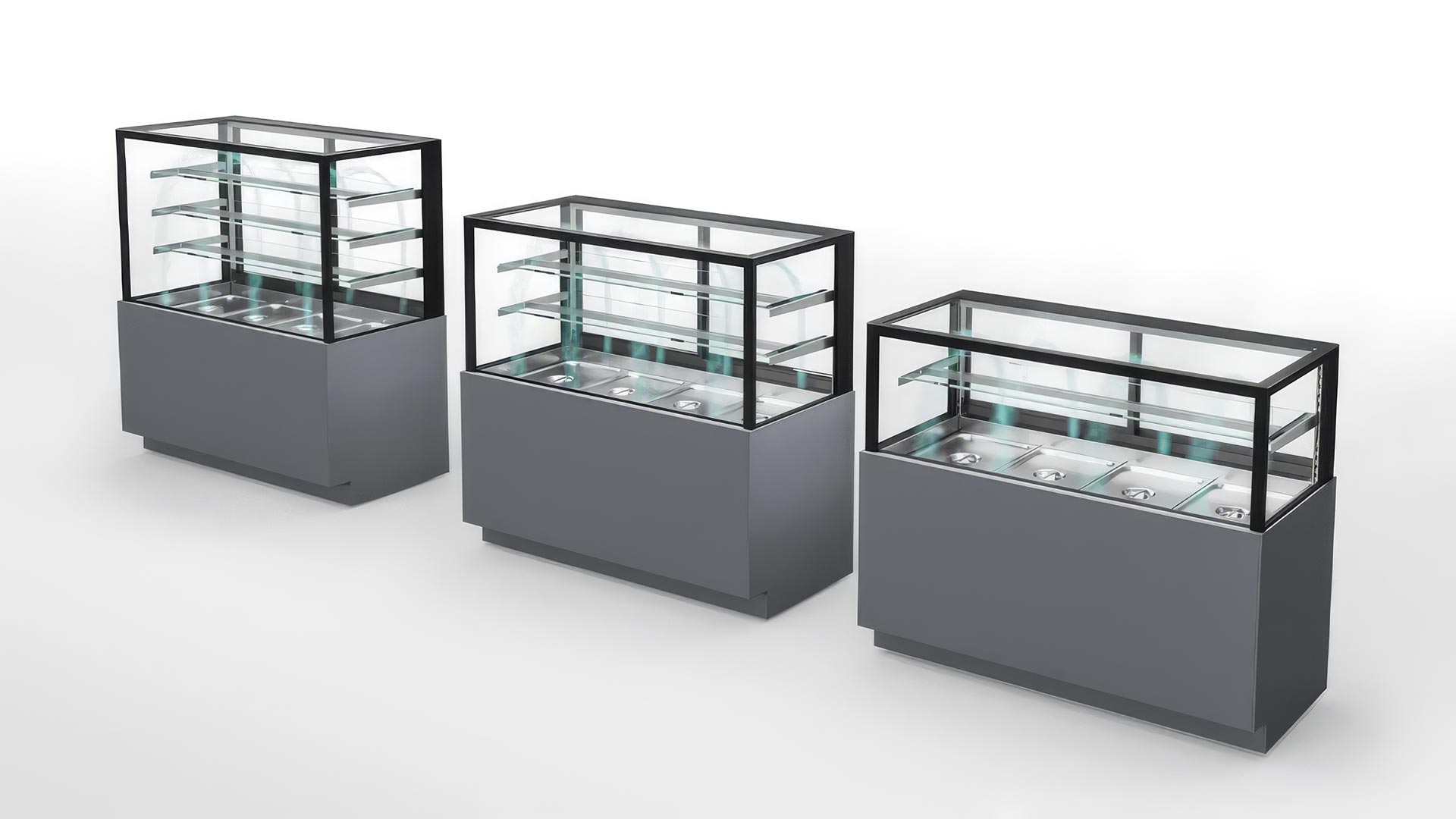

Tortuga display cabinets can be supplied with the Gastronorm set-up, which features a display shelf arranged to accommodate one-unit GN trays. In this case, too, refrigeration is ventilated on all display shelves.

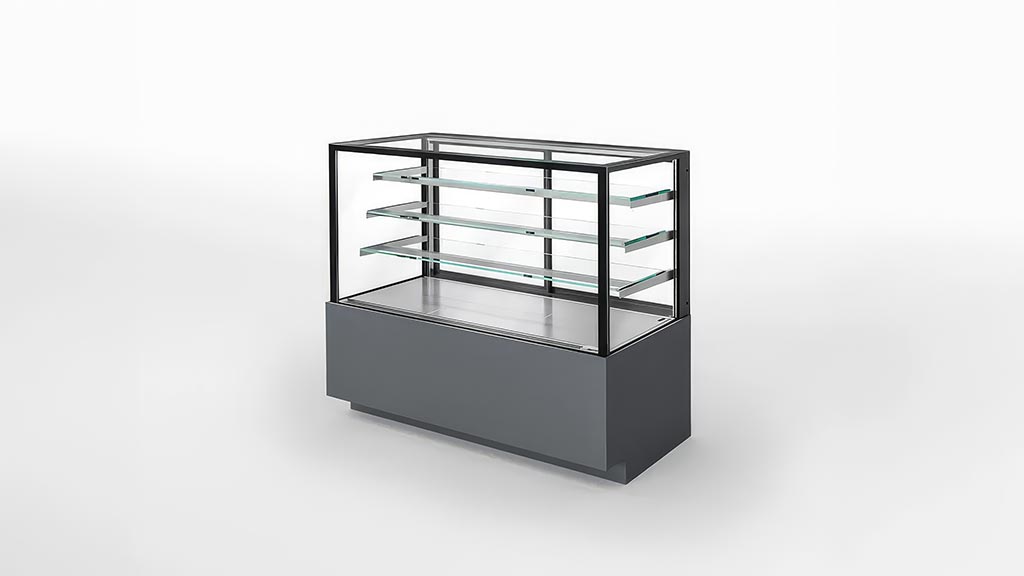

Tortuga showcases can be supplied with either solid or lacquered HPL paneling upon request.

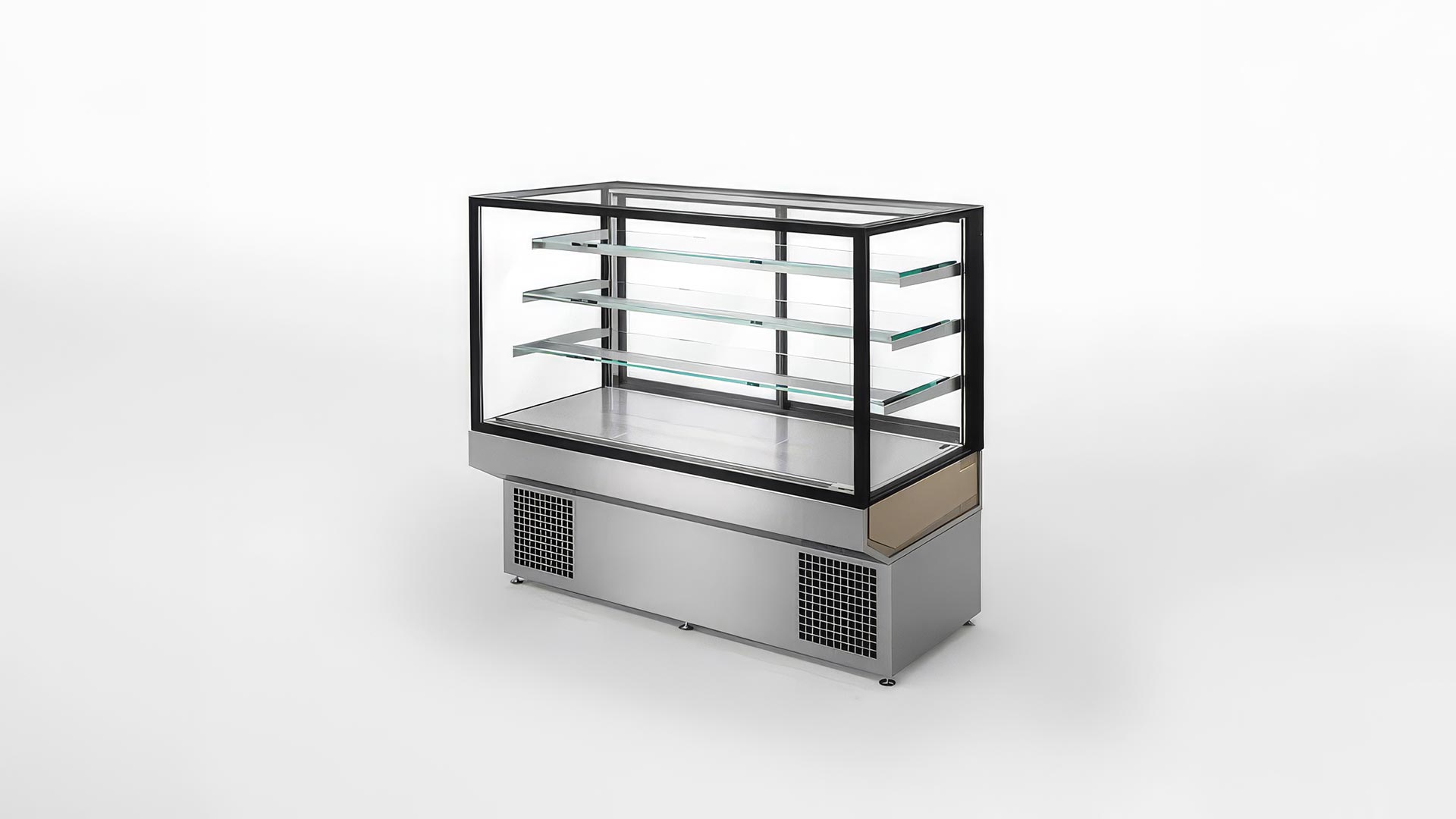

Tortuga showcases can also be supplied in a semi-finished version, when coating is provided by the customer.

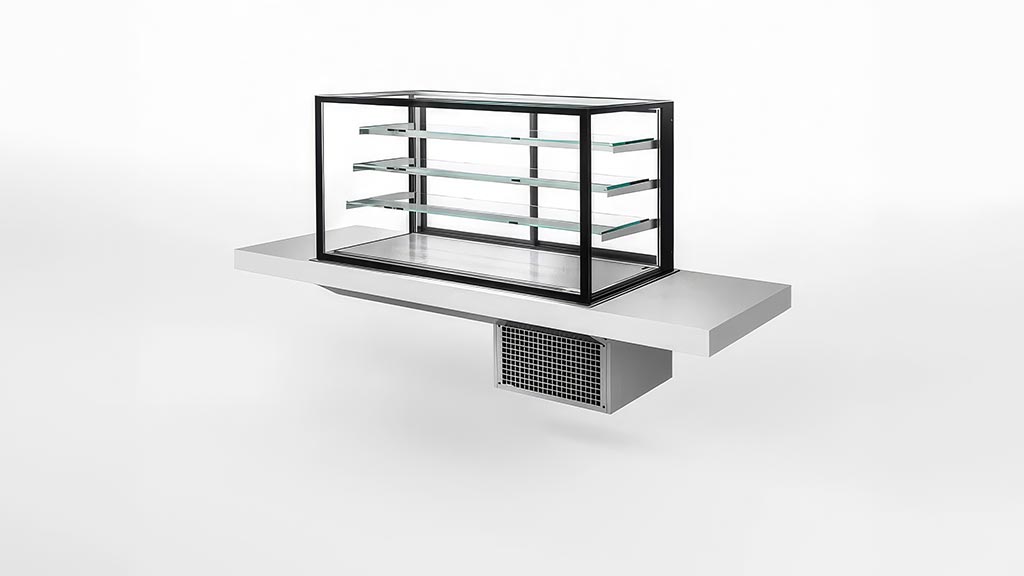

Tortuga showcases can also be supplied with drop-in setup to be recessed into the top.

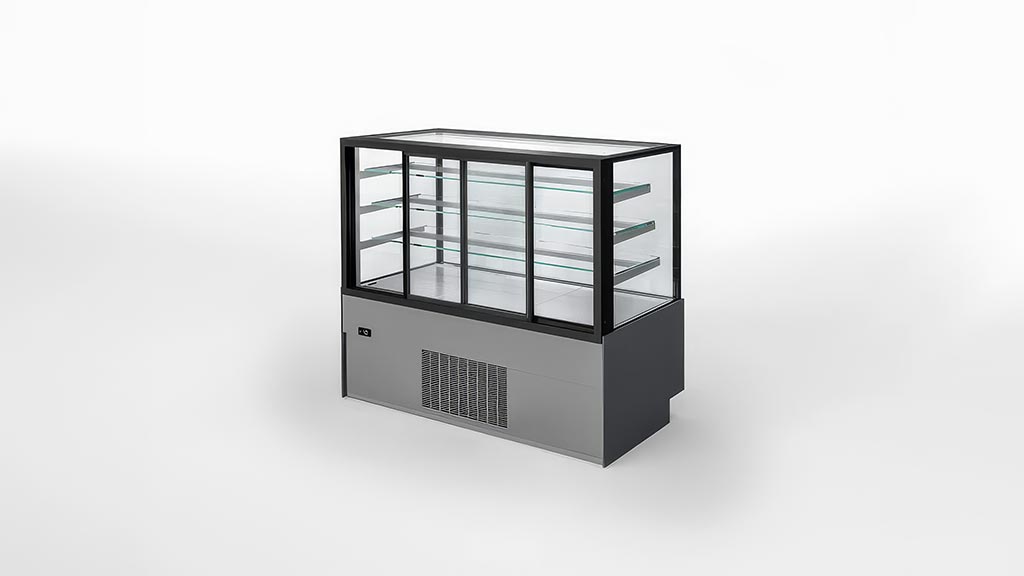

Access to the refrigerated compartment is through double pane glass sliding doors with automatic closing and magnetic stop to facilitate loading operations.
Tortuga Self display cases feature sophisticated thermodynamics that ensure constant temperature on all display surfaces. Forced air circulation takes place through transparent panels integrated with the doors, that canalize its flow over all display surfaces.
