GelatoWall

Vertical showcases

The complexity of our time turned into simplicity

It is a content and expressive representation that alters the known stereotype of presentation and serving of ice cream.

It expresses with simplicity, essentiality, and communicative strength the sense of enhancement of the product to be served in super contemporary ways of perception and use. By means of its dimensional and ergonomic dynamics, it makes it possible to create an extraordinary and super attractive ice-cream parlour in places where it would never be possible to create it. It is characterized by an intelligent use of technology that makes this system smart. It is a compact and perfect machine where everything is studied with skill and attention to ensure maximum efficiency and functionality. It represents a new possible future for the way of serving ice cream, but not only!

Gelato

Applicazioni

Flexibility and technology for any business requirement

Design Highlights

Sleek and modern design for superb refrigeration solutions

Additional module

Upon request, it is also possible to provide the front counter with rounded edges in mirror finish with backlit logo, brushed steel sides and acrylic top with the possibility of flush integration of the screen for order management.

Shutter

Side modules are equipped with two 2 aluminum shutters for the hermetic locking of each side of GelatoWall.

Side modules

The side units are containment-oriented and multi-functional, with provision for connecting various appliances (cream whipper, till, etc.). Brushed steel finish with sink and separate waste chute; doors and shelves are adjustable and in glass.

Refrigerated display

Ice cream is stored in 10-liter cylindrical round tubs, with the option of adding a double storage level underneath the serving ones.

Dimensioni

Lengths: 3367, 4244 mm
Height: 2410mm
Depth: 810mm

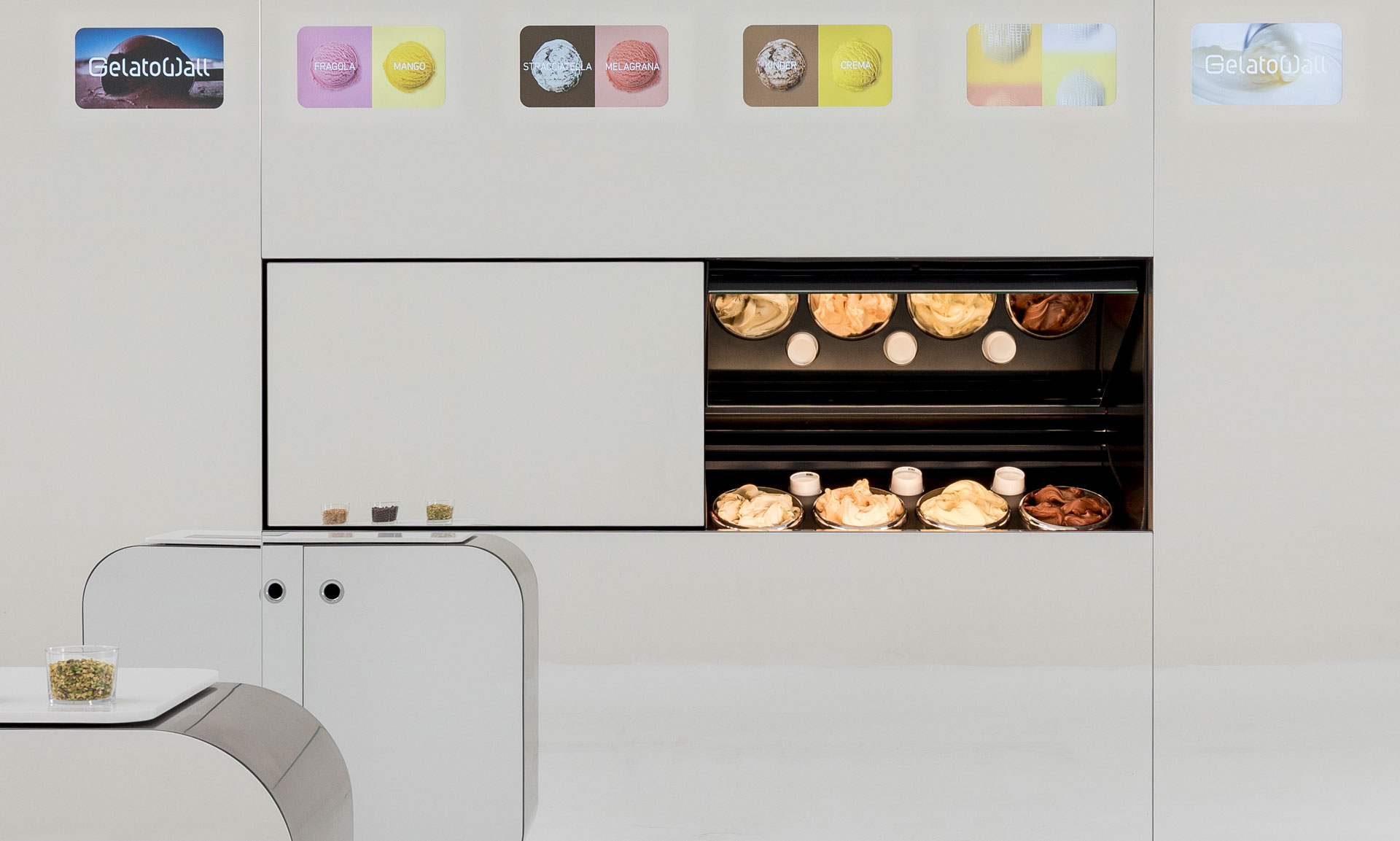

Automatic coplanar doors

Access to the refrigerated compartment is through insulated doors with automated opening, thanks to a patented laser detection system and a control unit with three modes: Automatic, Loading and Cleaning. The operator can approach the ice cream packaging area without touching anything, and the refrigerated compartment closes automatically when the operator moves away.

Integrated video screens

The mirrored glass exterior cladding is designed for the integration of programmable video walls, which can be managed through dedicated software for the input of ice cream flavors and interactive graphics.

Touch control panel

The elegant touch control unit is equipped as standard on all refrigerated modules.

Ciam Connect

Upon request, it is possible to include the Ciam Connect package that allows the refrigerator to be online, connected to a cloud from which many functions can be managed; in addition to that alarm reporting and fault prevention service would be included.

QR code

Inside the refrigerator there is a product label with a QR code from which user and maintenance manuals and other technical content related to the product can be downloaded.

Ventilated refrigeration

GelatoWall is a refrigerated vertical cabinet for frozen application (-18°C) with a high-efficiency ventilated refrigeration system, particularly suitable for artisan gelato.

Automatic reverse cycle defrosting

Programmed defrostings are ultra-rapid reverse cycle.

EasyPay payment system

Upon request, it is possible to add a system for choosing the packaging of the ice cream directly by the customer through a totem with an interactive touch screen. This system also allows instant payment by credit card and printing of the order to the GelatoWall operator.

Internal condensing unit

GelatoWall is designed as a plug-in, which is why the condensing unit is internal, hermetic, and located at the top of the refrigerator. The system is provided with eco-friendly gas R290.
