Category Vertical showcases
Designer Fabrizio Milesi
This series of refrigerated cabinets is ideal for being inserted flush into the wall

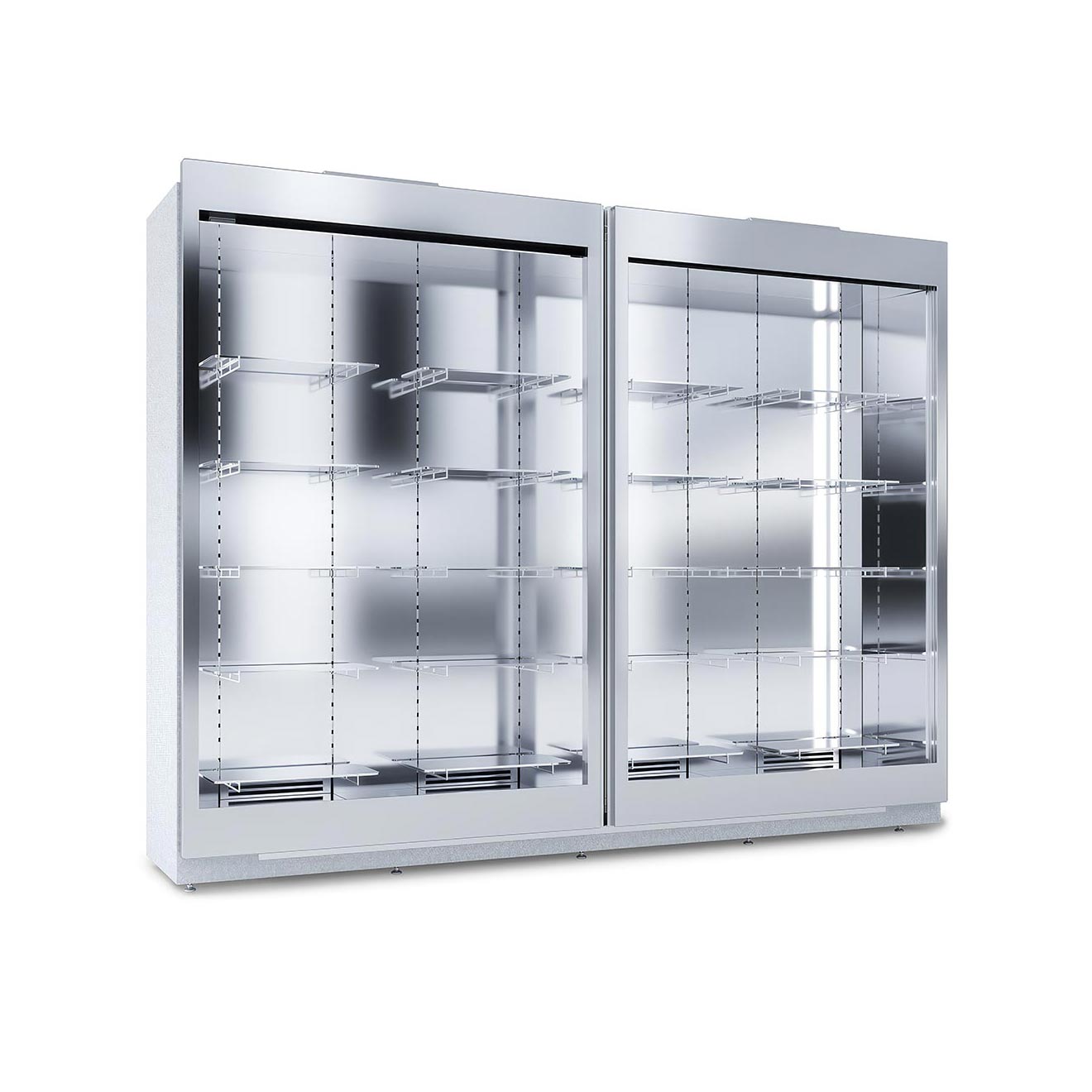

Murozero Slide is characterized by its massive double pane glass coplanar sliding doors. The opening system is automatic with electric actuator and touch-less activation placed behind the door glass. This sliding system is applicable in both classic and Maxi versions, but only in the length of 2800mm.
Applications
Design Highlights
Sleek and modern design for superb refrigeration solutions

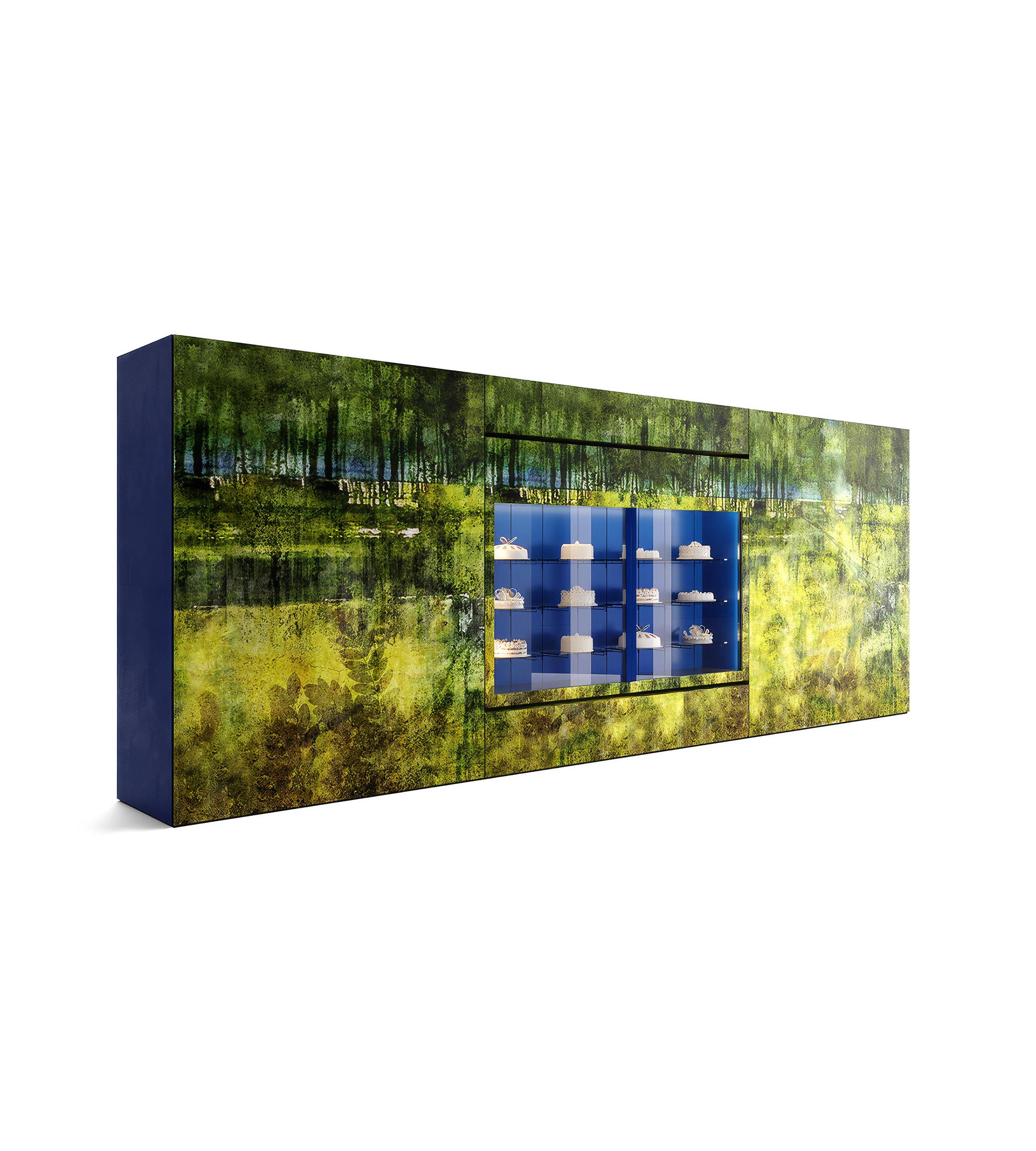

Murozero wall units offer extensive customisation possibilities across all their visible components, using the Ciam Materials catalogue, which includes a wide selection of materials, paints and finishes to suit every design requirement.

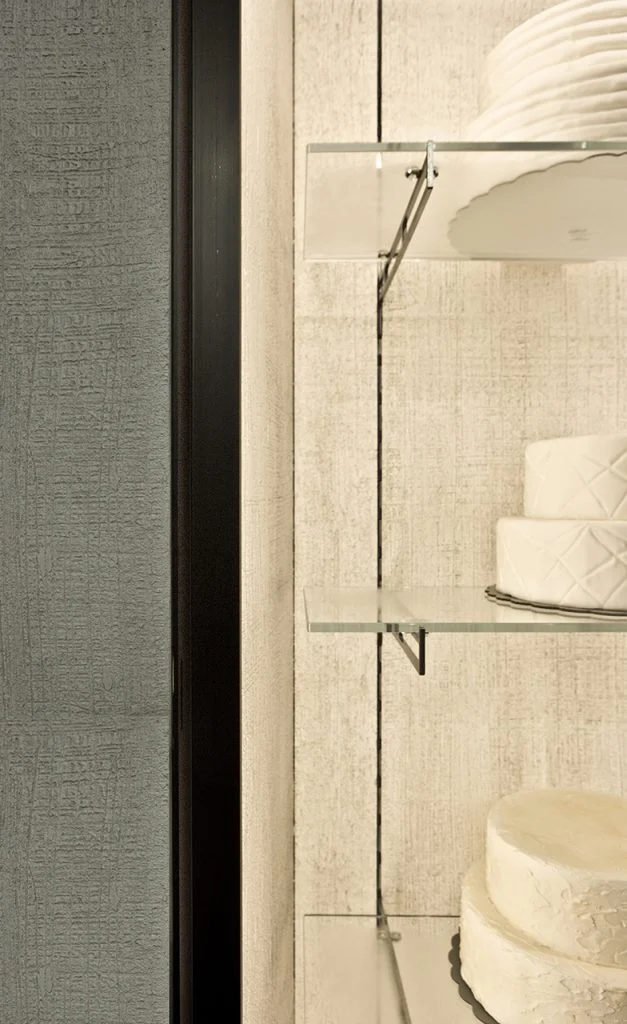

The shelf system is adjustable through concealed racks built into the back panel.
Dimensions
Lengths: 2800 mm
Depth: 580 mm
Height: 2152 mm
Murozero Slide is characterized by its massive double pane glass coplanar sliding doors. The opening system is automatic with electric actuator and touch-less activation placed behind the door glass. This sliding system is applicable in both classic and Maxi versions, but only in the length of 2800mm.
The shelves that can be applied to the Murozero cabinets are of two types: the standard clear glass one and the tubular steel frame. The standard finish of the metal part is satin-finished steel, which can be customized upon request with epoxy powder coatings or electroplated finishes.
Tangential fans are electronic with low noise impact (<25dBA).
Refrigerated cabinets have electric defrosting, which ensures proper functioning of the system in all environmental conditions.
An electronic thermostatic valve can be included as optional equipment, specifically in the case of connections to refrigeration rack system.
The elegant touch control panel comes as standard on all refrigerated modules, ensuring intuitive and immediate control of the main operating functions.
Refined integrated LED lighting enhances the appeal of displayed products with a standard 3000 K colour temperature. Optional 4000 K and 2700 K versions are available to suit a variety of display environments.
Usually supplied with remote condensing units – FGAS R452a.
Upon request and with prior verification and approval by the technical department, CO2 systems for connection to refrigeration rack systems can be planned.
An identification label featuring a QR code is located inside the refrigerator, providing access to downloadable user and maintenance manuals, as well as product-related technical documentation.
Available on request, the Ciam Connect package enables cloud connectivity for remote monitoring and management of a wide range of functions. The service also includes alarm notifications and preventive maintenance tools designed to help avoid faults and downtime.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic
Refrigerant gas
R290 (UC int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+10°C / +6°C
Lighting
3000°K
Power supply
230 V / 1 ph / 50 Hz
Energy class
N.D.
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Automatic / Natural
Refrigerant gas
FGas / A2L (UC est.) / R290 (int.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Hermetic
Operating temperature
+16°C / +4°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
Ventilation
Ventilated
Defrost cold cases
N.D.
Defrost hot cases
N.D.
Defrost ambient cases
Autoamitc / Reverse cycle
Refrigerant gas
FGas (UC ext.)
Humidity
N. 4 / 30 °C / U.R. 55%
Compressor
Semi-Hermetic
Operating temperature
-18°C
Lighting
2700°K (opt) / 3000°K / 4000°K (opt)
Power supply
230V / 1ph / 50hz | 230V / 1ph / 60Hz (opt.)
Energy class
G
