Chilled, freezer or hot temperature cabinets.
The tanks are monolithic and available in the following standard lengths: 600, 1000, 1200, 1500, 1800, 2400 (plus sides). Refrigeration is ventilated with evaporator system from below. Standard set-up is Open with roller blind in micro -fabric; Eco, Premium or Slide doors can be fitted as optional equipment; standard sides are made of double pane glass. Shelves are height adjustable and made of paneled steel with integrated lighting profile. Standard finish of internal and external sheets is matt black powder coated steel (RAL 7021), other finishes can be supplied as optional equipment. Lighting is with 3000°K no-spot LED strip.
Applications
Design Highlights
Elegant and modern design for superior refrigeration solutions.
Su richiesta gli interni, le lamiere esterne e le serigrafie dei vetri possono essere personalizzati scegliendo i colori RAL che si desiderano.

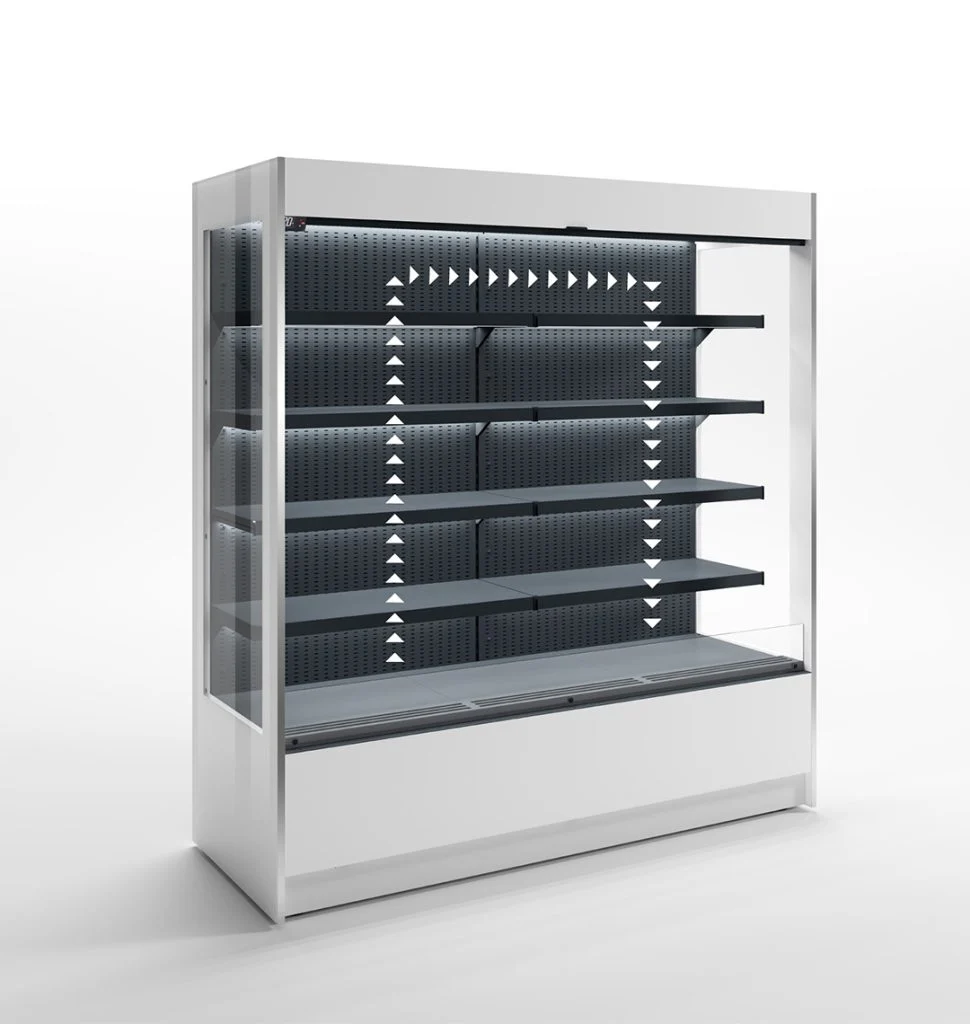

In the Grab&Go Classic cabinets the evaporator is placed in the lower tank and through forced air circulation the cold reaches all display shelves evenly.
Dimensions
lengths: 600, 1000, 1200, 1500, 1800, 2400mm (plus sides)
depths: 900mm
heights: 2000, 2200mm
Refrigerated cabinets can be channeled in aesthetic continuity without an intermediate side, while all models in the range can be placed sequentially next to each other as they share the same depth, height, and technical compartment dimensions.

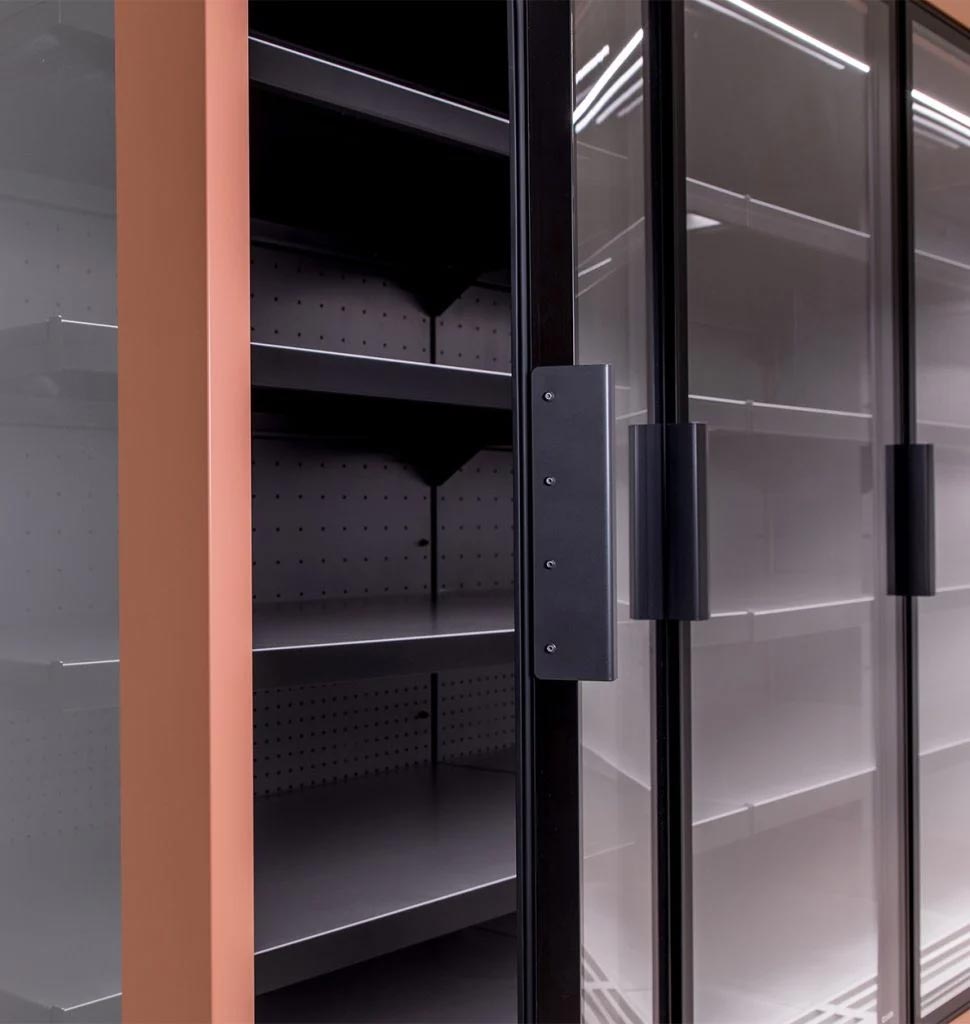

Refrigerated cabinets can be supplied with double pane Eco-type doors with standard RAL 7021 screen printing. This set-up provides higher energy savings compared to the Open version.

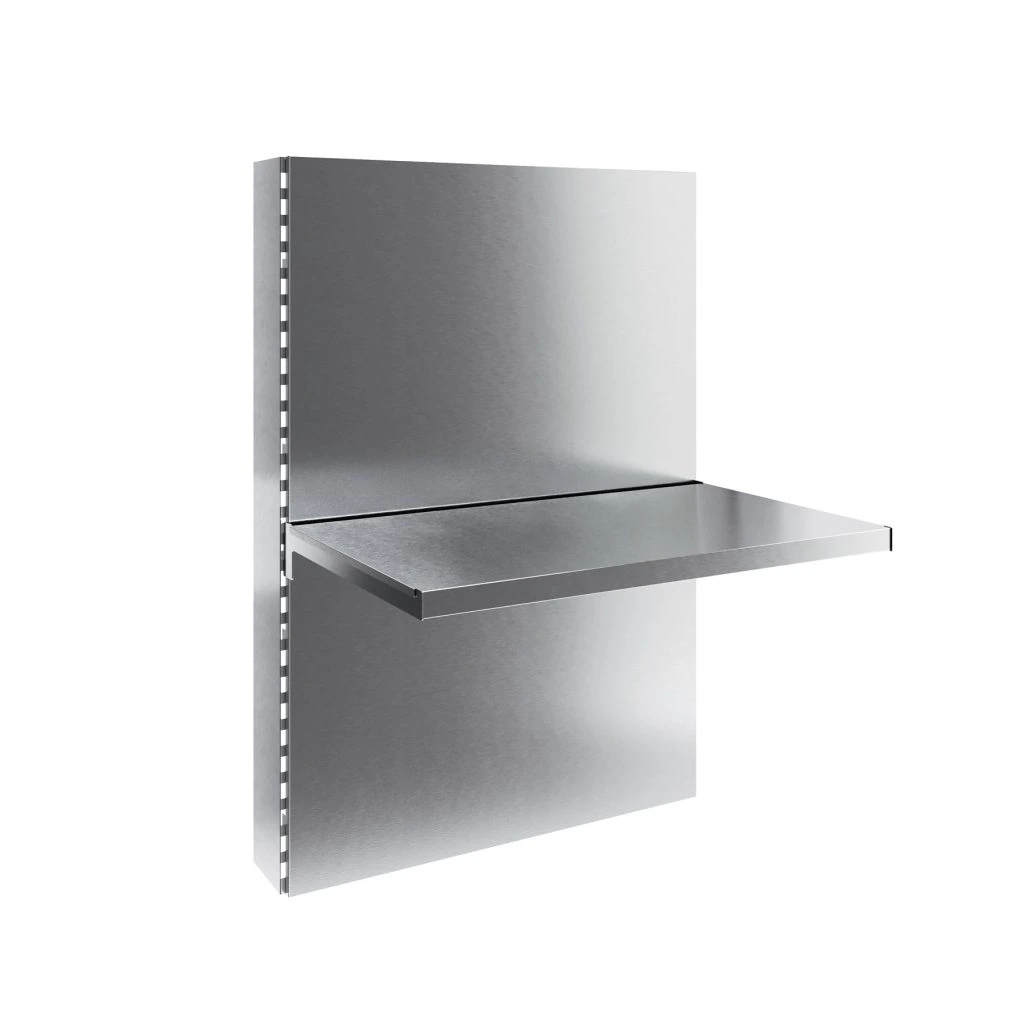

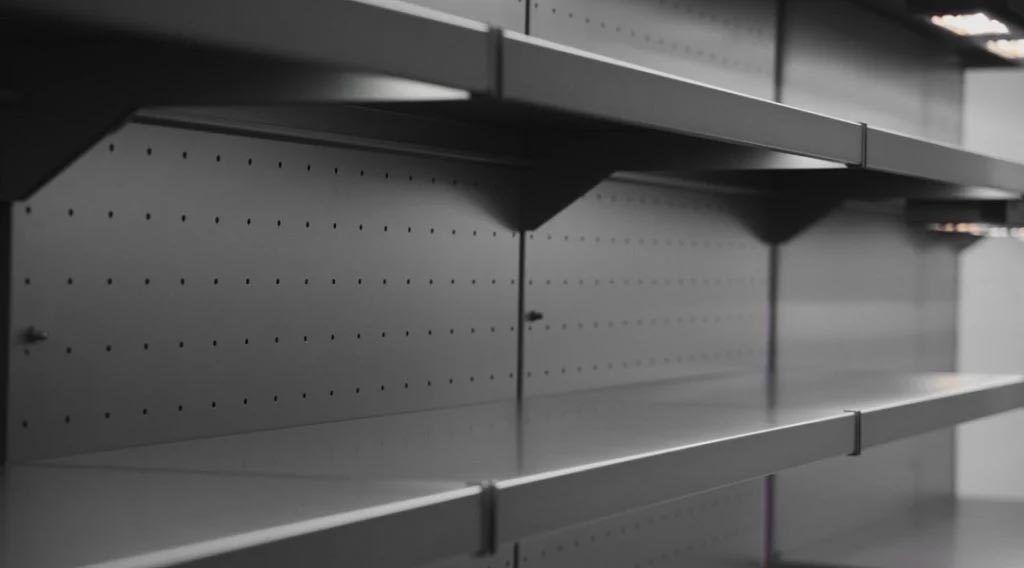

Customization of the interiors of Grab&Go Classic cabinets is also achieved through the selection of shelving. The standard shelf provided is the pressure-folded steel version powder coated with RAL 7021. Upon request, it is possible to have the shelves coated in different RAL colors or to insert Shelf T7 or Shelf T8 shelves.

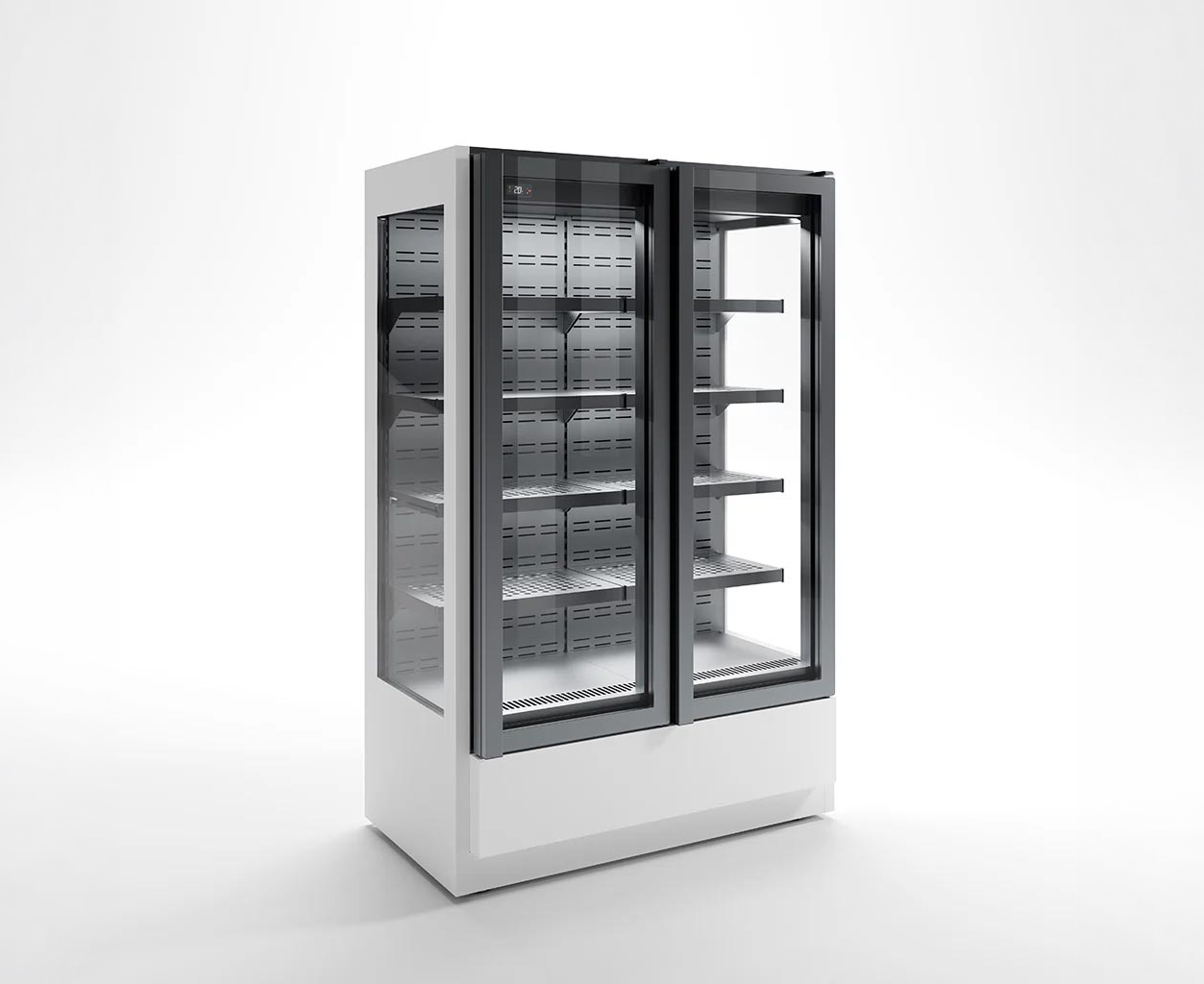

The freezer version features premium triple pane glass doors with standard RAL 7021 screen printing. Airtight closure is ensured by magnetic perimeter seals, door opening is up to 100°, and hydraulic hinges have automatic controlled soft closing. Premium doors are standard heated and are equipped with No-Fog film.
The range of Classic cabinets also includes the 900mm depth, in which case the built-in version with is only available with Eco doors.
Upon request solid sides are available instead of panoramic ones for the refrigerated models. In this version the sides' thickness is 40mm and the standard finish is stainless steel for the inside and RAL 7021 for the outside surface. Freezer cabinets, on the other hand, can only be supplied with solid sides.
As an alternative to panoramic double-pane glass sides, one can opt for the glazed window arrangement. This includes the insertion of a steel sidewall of the same exterior finish as the cabinet with the application of a glazed window.

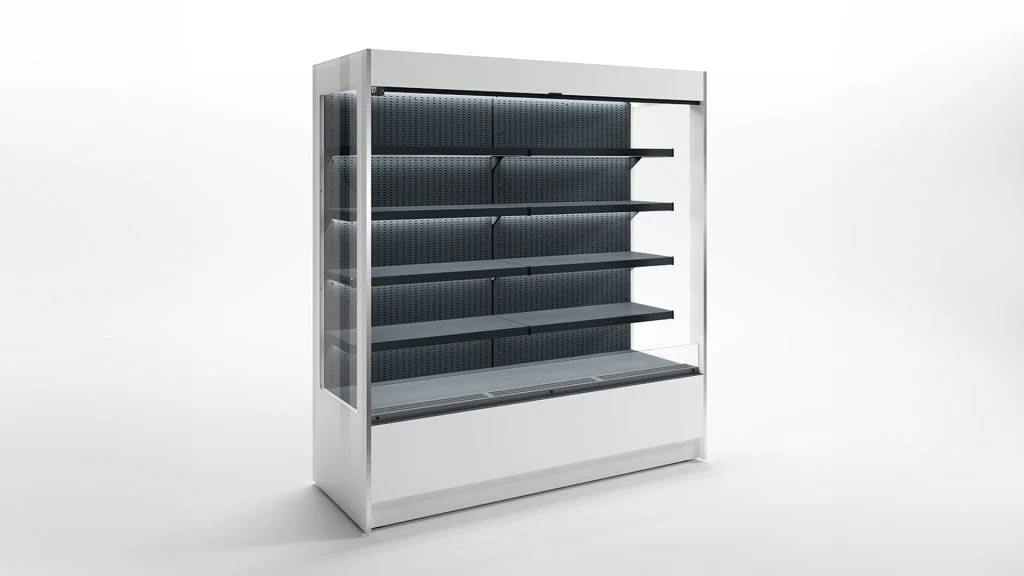

Classic refrigerated units have as standard panoramic double-pane glass sides with RAL7021 screen printing. Upon request, a RAL color of your choice can be applied.

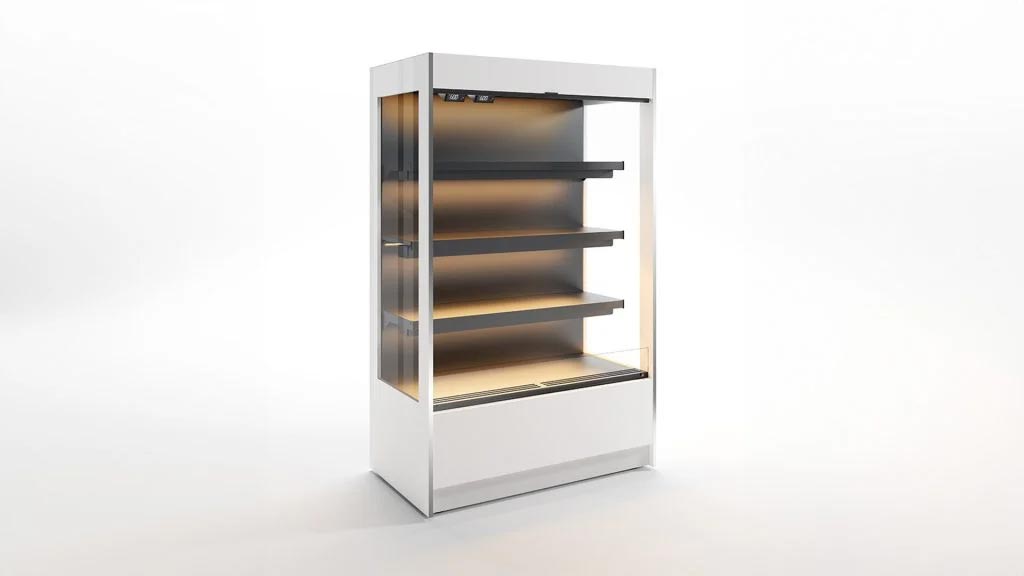

The range of Classic cabinets is completed with the hot version (+80°C). The product is heated on each shelf by the dual action of the hot plate shelf and the top heating lamp.

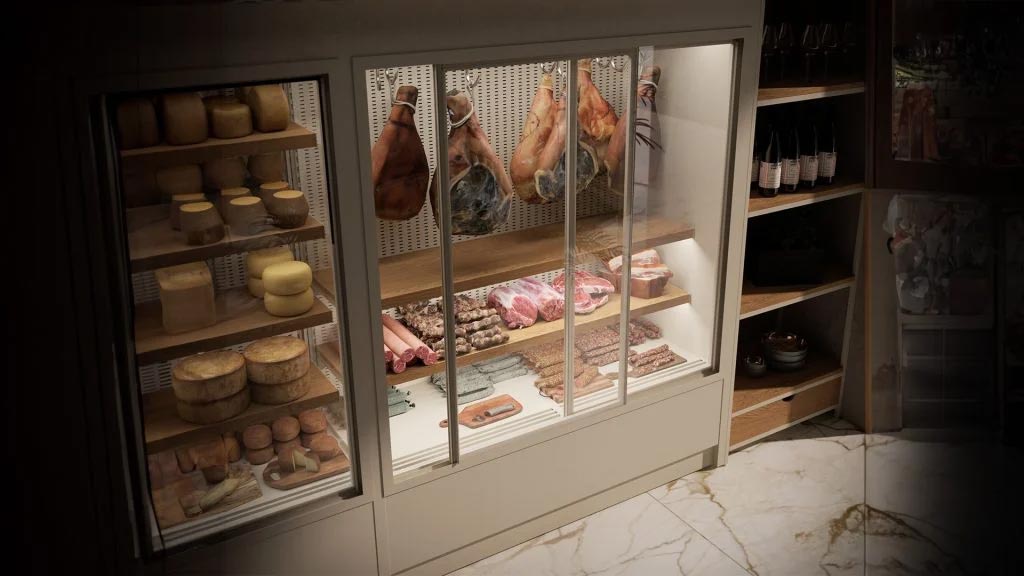

Upon request it is possible to include sliding double-glazed thermal doors on an aluminum track with a magnetic catch; the frame and handles are coated in a matt black RAL7021 finish.

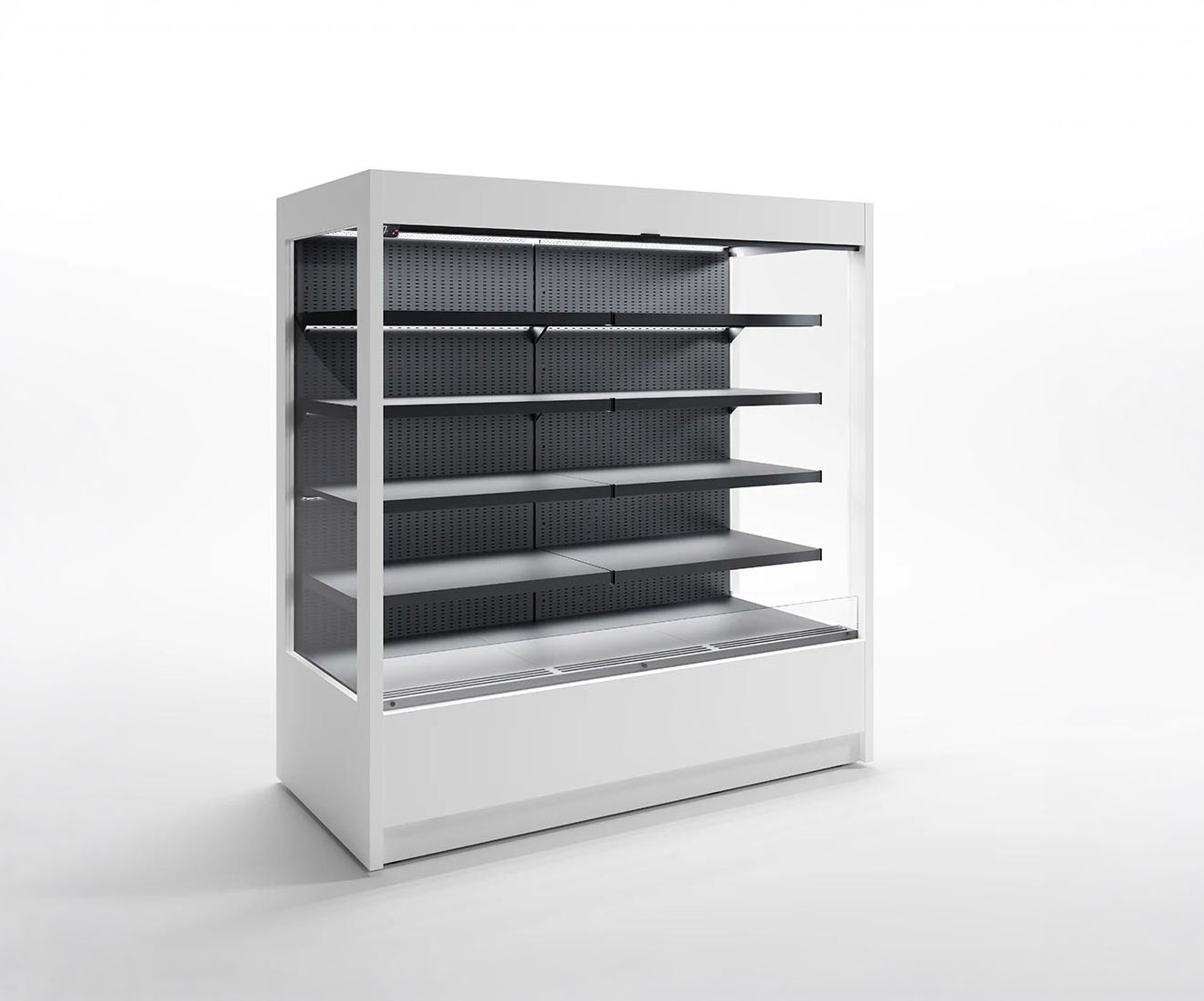

Refrigerated open cabinets are equipped with a roller blind in micro -fabric and glass baffle.
